SENSORS
STRAIN GAUGE SENSOR
40.18 Technical Reference Manual Chapter Issue 6, May 19
STRAIN GAUGE SENSOR
Description The sensors are produced in a full resistive Wheatstone bridge configuration
that is temperature and creep compensated. It uses a thin foil as one of the
resistive elements of the bridge. If a force is applied (weight) such that the
measuring foil is stretched, the lengthening of the foil causes its resistance to
vary. This change in resistance is detected and passed to a high gain DC
amplifier.
Testing/
Adjustment
The sensors do not require adjustment. In use the assemblies are calibrated -
see the Squeegee chapter or the relevant underscreen cleaner chapter for
details.

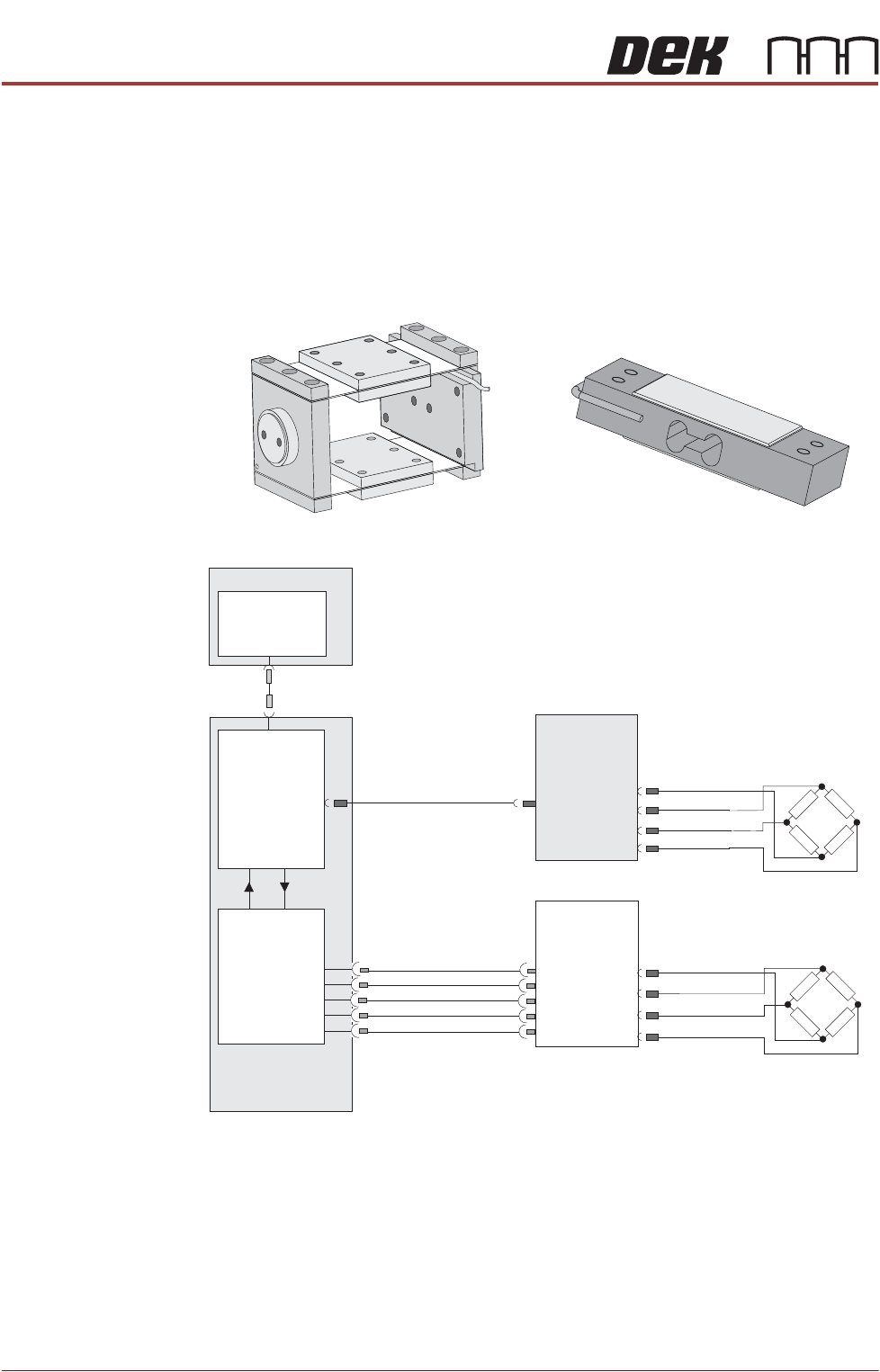

Solvent Level Strain Gauge
Squeegee Strain Gauge
M36
Machine Control
Enclosure
USB
PC
Single Board
Computer
(SBC)
NextMove ES
(I/O Node 1)
I/Ps
O/Ps
NextMove
Interface
AN IN0 -
AN IN0 +
Solvent
Load Cell
Solvent
Level
Amp
-V
+V
-IN
+IN
0V USR
+12V
-12V
Print
Carriage
I/O Node 3
CAN Bus
CAN
In
0V
+V
-IN
+IN
Squeegee
Pressure
Load Cell
SENSORS
TEMPERATURE AND HUMIDITY SENSOR
Chapter Issue 6, May 19 Technical Reference Manual 40.19
TEMPERATURE AND HUMIDITY SENSOR
The temperature and humidity sensor is an integral part of the print carriage
I/O Node 3 PCB and as such there is no adjustment and setting available for
this sensor.
SENSORS
TEMPERATURE AND HUMIDITY SENSOR
40.20 Technical Reference Manual Chapter Issue 6, May 19
