TRANSPORTATION - MAJOR RELOCATION MACHINE SUPPLIES AND EN VIRONMENTAL CONDITIONS Chapter Issue 5, Nov 19 Technical Reference Manual 42.45 Figure 42-13 T ype 4 Covers Weight Boxed - kg, Unboxed - kg 9 51 801 (Dependent up…
TRANSPORTATION - MAJOR RELOCATION
MACHINE SUPPLIES AND ENVIRONMENTAL CONDITIONS
42.44 Technical Reference Manual Chapter Issue 5, Nov 19

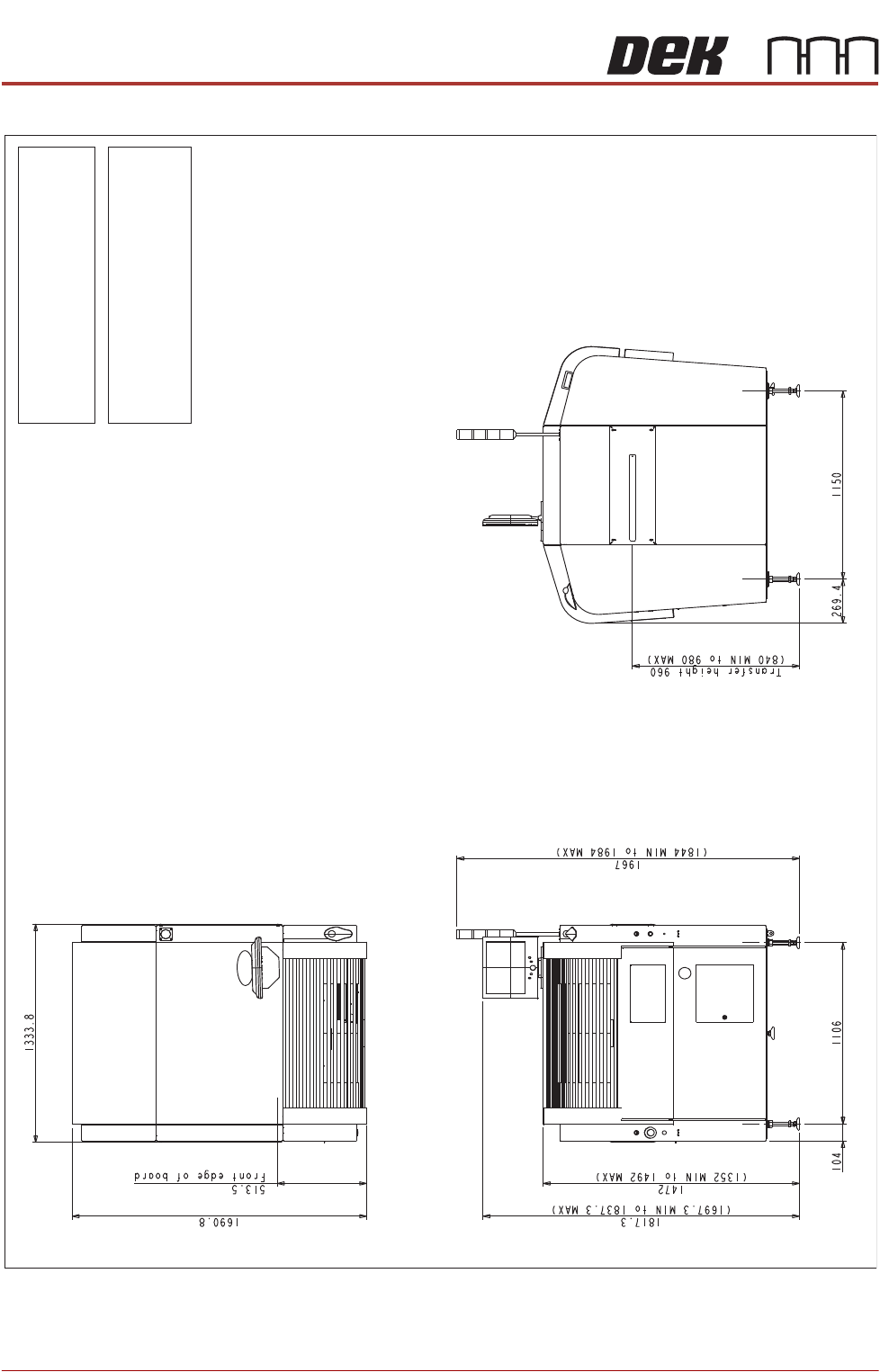

Figure 42-12 Type 3 Covers
Weight
Boxed - 8 kg, Unboxed - kg70 720
(Dependent upon configured options
selected with the machine)
Note
All dimensions
in millimetres
Board transfer
height 8
- 980 mm36
Screen load height 925 - 1065
mm
TRANSPORTATION - MAJOR RELOCATION
MACHINE SUPPLIES AND ENVIRONMENTAL CONDITIONS
Chapter Issue 5, Nov 19 Technical Reference Manual 42.45

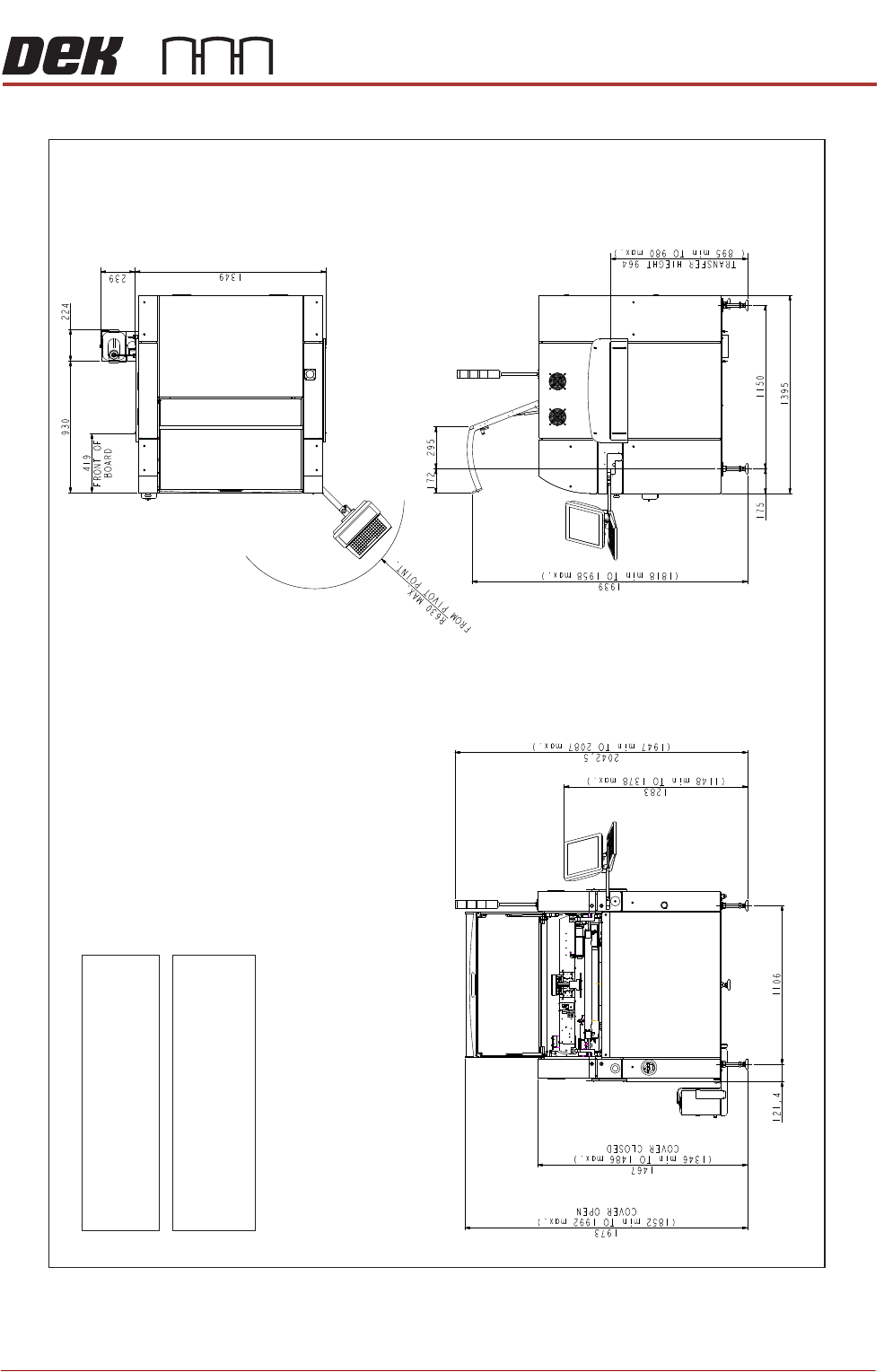

Figure 42-13 Type 4 Covers
Weight
Boxed - kg, Unboxed - kg951 801
(Dependent upon configured options
selected with the machine)
Note
All dimensions
in millimetres
Board transfer
height
- mm895 980
Screen load height
- mm980 1065
TRANSPORTATION - MAJOR RELOCATION
MACHINE SUPPLIES AND ENVIRONMENTAL CONDITIONS
42.46 Technical Reference Manual Chapter Issue 5, Nov 19

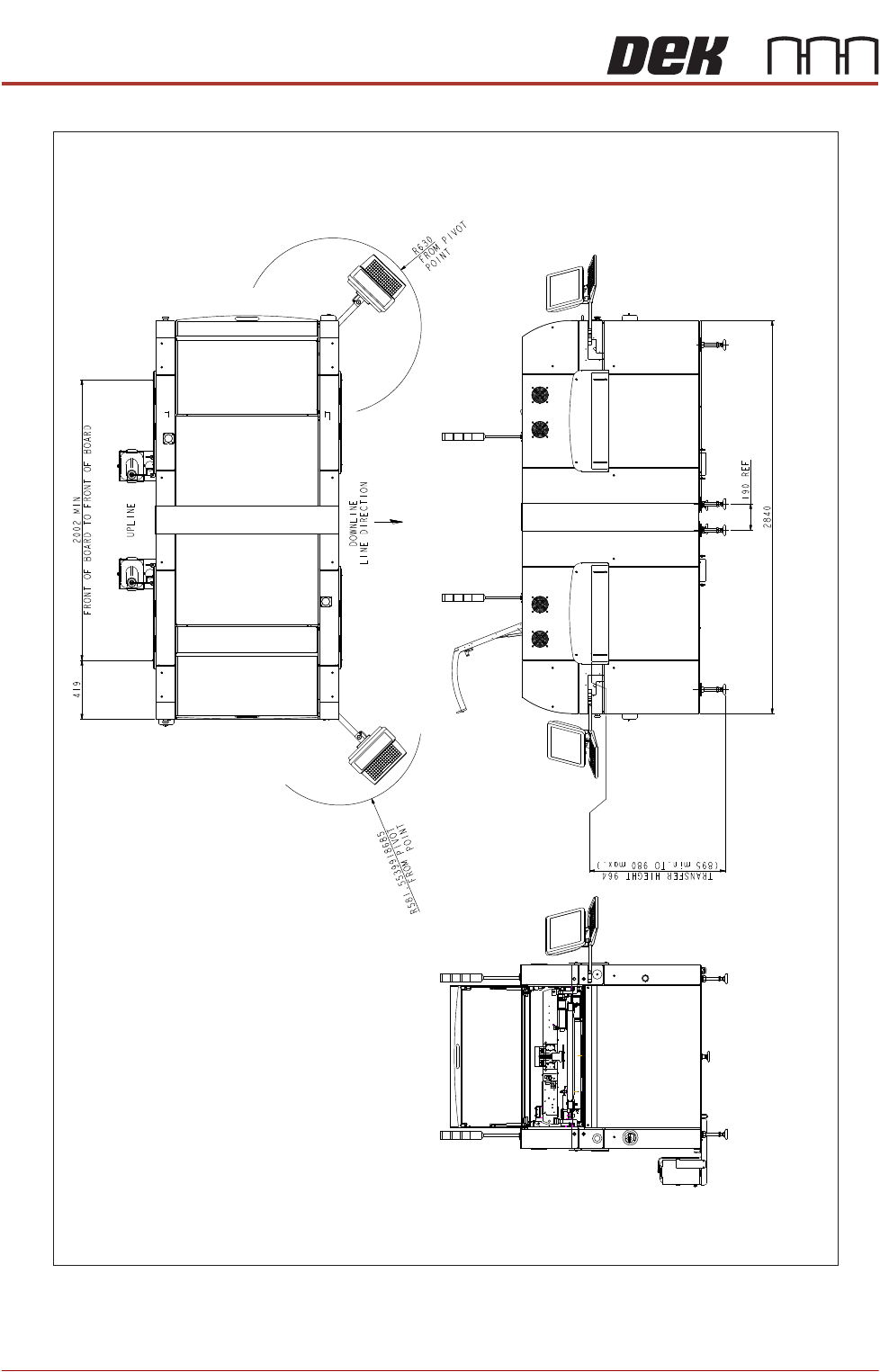

Figure 42-14 Type 4 Covers (Back to Back option)
