STINGER
REPLACEMENT PROCEDURES
Chapter Issue 4, Nov 19 Technical Reference Manual 38.15
Syringe Removal
and Replacement
1. Remove the replacement syringe assembly from refrigeration and allow the
temperature to rise in accordance with the manufacturers’ recommenda-
tions. Remove the end dust cap.
2. Select Unload Board. Choose the preferred remove board method or
manual.
3. Select Unload Screen. Open the printhead cover and remove the screen.
Close the printhead cover and press the System button to restore system
power.
4. Select Maintain Stinger.
5. Open the cover; the camera axis is located at the front of the printer where
the applicator can be removed. If necessary, move the print carriage back
to gain access to the print area.
6. Slacken off the auger clamp screw.
7. Release the auger, nozzle and syringe as one assembly from the drive gear
and the ‘C’ clamp.
38.16 Technical Reference Manual Chapter Issue 4, Nov 19
STINGER
REPLACEMENT PROCEDURES
8. Remove the pneumatic air connector from the rear of the syringe assembly.
9. Store part-used assemblies in a refrigerator or dispose of the whole assem-
bly in accordance with any national, federal or local disposal regulations.
10. Remove the syringe sealing cap.
11. Fit a replacement auger and nozzle to the syringe.
12. Fit the pneumatic air connector to the rear of the syringe assembly.
13. Lift the assembly: auger, nozzle, syringe and air connector, up toward the
auger drive gear. Align the syringe with the ‘C’ clamp (1).
14. The auger engages with the square shaft of the drive motor, rotate the
exposed portion of the drive belt at the same time pushing the complete
assembly upward, ensuring that it is in the fully up position (2).
15. Check that the whole assembly is secure in the ‘C’ clamp.
16. Refit the in-line air connection.
17. Tighten the plastic auger clamp screw. Do not over tighten.
18. Remove the nozzle dust cap. Ensure that the nozzle assembly is in line with
auger valve and not bent or at an angle.
19. Select Load Board and load the calibrated test product as described in the
Software Interface section of this manual.
Auger
Nozzle
Pneumatic
Connection
Auger Clamp Screw
Auger Drive Gear
Syringe
STINGER
REPLACEMENT PROCEDURES
Chapter Issue 4, Nov 19 Technical Reference Manual 38.17

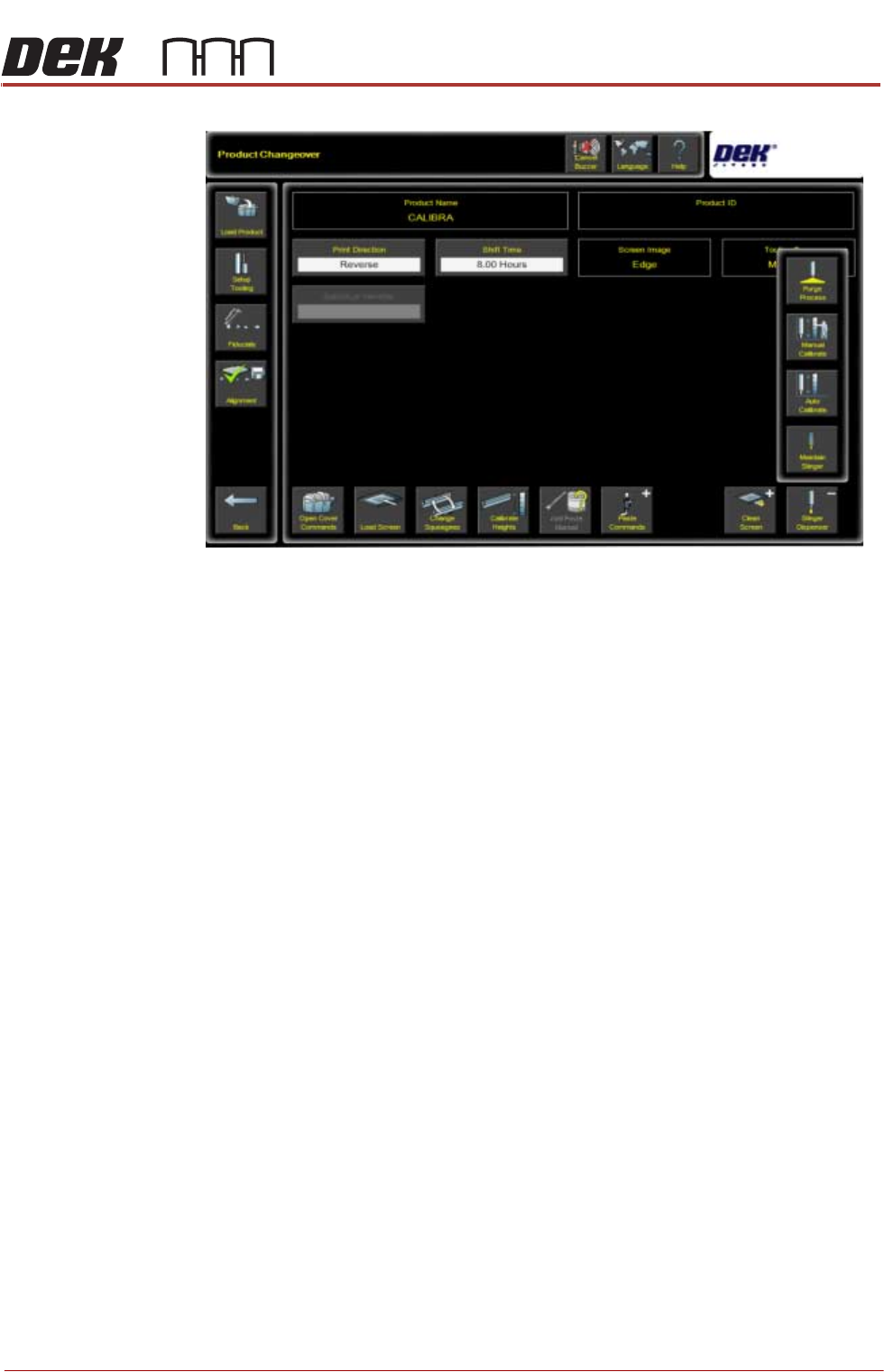

20. Navigate to the Product Changeover page.
21. Select Unload Screen.
22. Select Stinger Dispenser. An extended menu is shown.
23. Select Purge Process. The camera axis drives to the centre of the board.
There are two process types for purging - Standard Purge Process and Auto-
matic Purge Process. The standard process provides the facility to dispense
material, directly onto the calibrated test product, for an indefinite amount of
time. This purges air pockets from the dispense head, or it is used to empty a
dispense head of material. The automatic process allows the purge to be
carried out at a purge station. The purge station also has a nozzle wipe facility.
The automatic purge process is used when a complete system purge is
required; either at the start or at the end of a production batch. As this process
requires a large volume of material to be purged, a purge station is used to
collect it.
Purge station consumable monitoring is turned on in Maintenance\Machine
Setup\Options\Stinger Options\Stinger Consumable Monitoring.
