HERMES
CONNECTION TO A NETWORK SERVICE
37.8 Technical Reference Manual Chapter Issue 2, Nov 19
Quick Reference
Table
The table below is provided for an engineer who needs a quick reference to the
actions required to install a printer onto a network. The engineer may have
previously installed a printer, be re-installing a printer onto another server or be
installing several printers at once.
NOTE
The system requires that the correct enabling security key device is fitted to the
port on the rear of the printer before software applications can be installed.
At the printer use housekeeping to transfer product files (.pr1) from local disk to
the remote disk. Load a product file from the remote disk back to the printer and
check that the transaction is complete.
No. Action Required Information
1 From the Windows desktop, right click My
Computer, select - Properties - Network
Identification - Properties to register the
printer on the correct domain or workgroup
The network administrator shall supply
domain or workgroup information
2 Select the Protocols tab, select TCP/IP
protocol and the Properties button
Check that the adaptor is correct for the
connection (as fitted in the PC) There
may be more than one device fitted
3 If DHCP is specified:- Select: Obtain an IP Address from the
DHCP Server
4 If an IP Address is to be specified:- Obtain the IP Address, and the Subnet
Mask details from the system adminis-
trator
5 Tell the network administrator that you
require two working directories where the
product and data files are to be stored
Files must have full administrative rights
(read/write)
6 For GEM, set up the IP address in the SDR
driver
D:\Program Files\DEK\Machine Con-
trol\Printer\sdrconf.cfg
Set the Passive IP Address to the Print-
ers’ IP Address
7 If more than one printer is to communicate
using the GEM Host:
Set a different DEVICEID for each
printer.
8 Select Local Copies option Decide if it is desired that the printer
copies remote product files to the local
drive after loading it from the remote
product directory. If disabled, modifica-
tions to the file are not saved locally
9 Check the physical connection to the net-
work
Ethernet 10 Base T is supported by
ASM
10 Ask the network administrator if there are
any intermediate routers between the server
and the printing machine
Supply the correct IP Address, check
the IP forwarding option in Protocols
Properties, Routing
11 Using My Network Places in Windows,
check that the printer can be ‘seen’ by the
host PC
Look for a computer icon with the printer
serial number next to it - DEK_******
12 Test the network connection See section ‘Pinging the Network’
HERMES
SETUP
Chapter Issue 2, Nov 19 Technical Reference Manual 37.9
SETUP
Basic Setup To enable Hermes carry out the following:
1. Select Maintenance.
2. Select Machine Setup.
3. Select Basics.
4. Select Upline Protocol.
5. Select Hermes from the list of available protocols.
NOTE
If Hermes is not selected, or the station is not Hermes compatible then refer
to the FMI chapter of this manual. It is assumed that all stations are Hermes
compatible for the remainder of this procedure.
6. Select Accept.
7. Select Downline Protocol.
8. Repeat Steps 5 and 6 for the downline protocol.
9. Select Back.
10. Select Data Comms.
HERMES
SETUP
37.10 Technical Reference Manual Chapter Issue 2, Nov 19

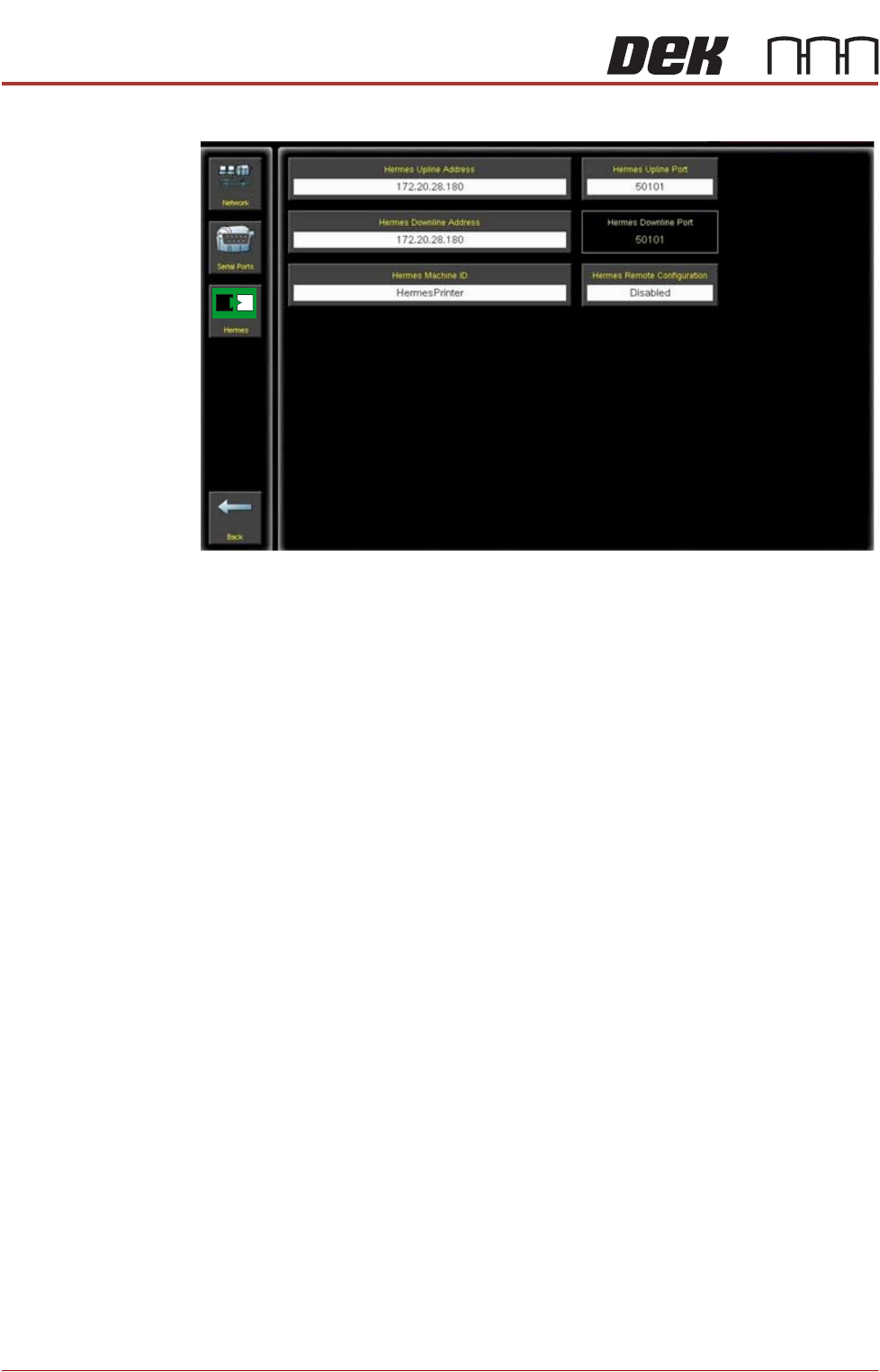

11. Select Hermes.
12. Select Hermes Upline Address.
13. Set the IP Address for the upline station.
14. Select Accept.
15. Select Hermes Upline Port.
16. Set the Port Number for the upline station.
NOTE
The default Hermes port number is 50101 contact the Network Administrator
/ Line controller to confirm.
17. Select Accept.
18. Select Hermes Downline Address.
19. Set the IP Address for the downline station.
NOTE
This can be left blank which allows any Hermes compatible station to
connect to the printer. To allow a specific station to connect set the IP
address for that station.
20. Select Accept.
NOTE
The Hermes Downline Port is not configurable from the printer, It is set to
the default port number for lane one (50101)
21. Hermes Machine ID must have a value set in it. This should default to the
serial number of the printer.
NOTE
The Parameter is preconditioned so that no value cannot be accepted.
22. Select Back.
23. Select Back.
24. Select Back.
