3.3.2.2 Dimensions of DX4 machine
3

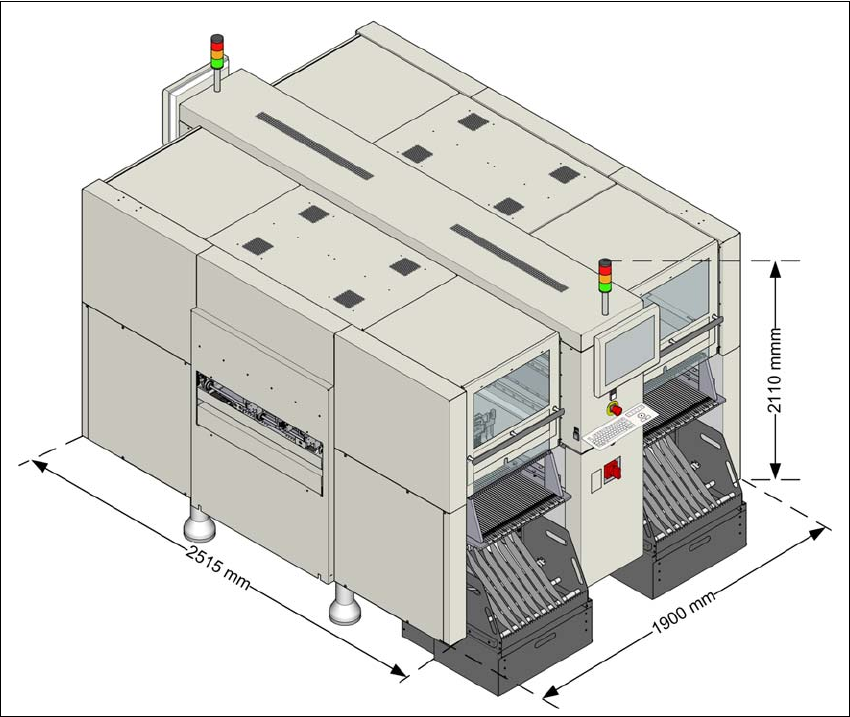

Fig. 3.3 - 2 Dimensions of DX4 machine
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.3 Dimensions and weight From software version SC.706.xx Version 06/2012 EN
106
3.3.3 Height of the folded up protective cover
3

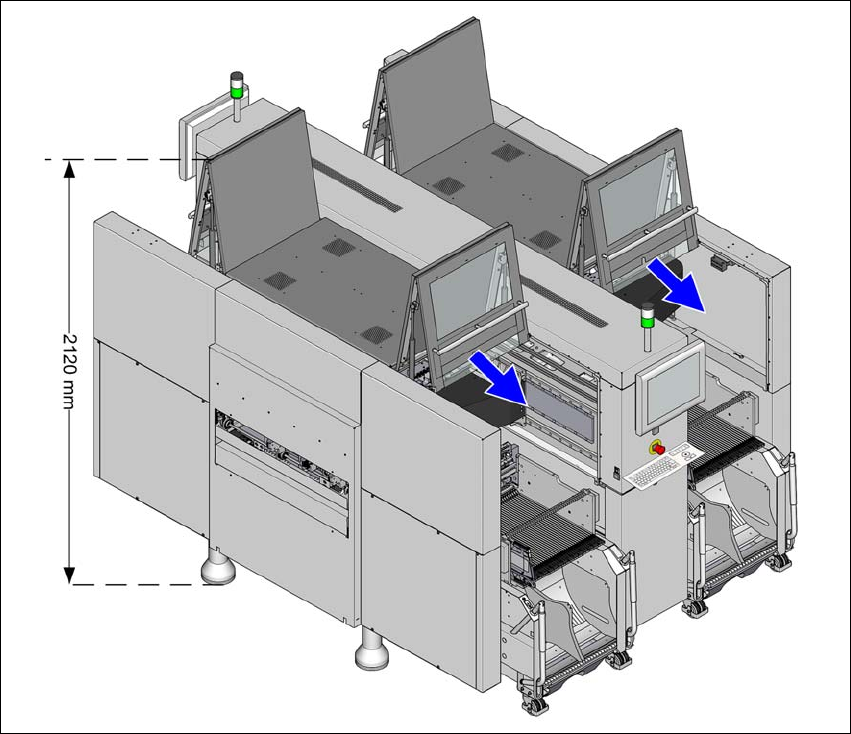

Fig. 3.3 - 3 Height of the folded-up protective cover - dimensions in millimeters (example of SX4)
The specified dimensions refer to the max. PCB conveyor height of 950 mm.
(1) The height varies according to the set PCB conveyor height
– for PCB conveyor height 900 mm = 120 mm ± 15 mm
– for PCB conveyor height 930 mm = 150 mm ± 15 mm
– for PCB conveyor height 950 mm = 170 mm ± 15 mm
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.3 Dimensions and weight
107
3.3.4 Maneuvering radii for the component trolleys in SX4 machines
3
Fig. 3.3 - 4 Maneuvering radii for the component trolleys in SX4 machines
The maneuvering radii "R" for the component trolleys in SX4 machines is:
3
Maneuvering radius R 600 mm
Distance L1: Machine center to outer edge of X component
trolley
1257.50 mm
Distance L2: Machine center to wall 1857.50 mm
