3 Technical data and assemblies User Manual SIPLACE SX4/DX4 3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN 156 3.9.2.5 T ape feeder module 16 mm X 3 Fig. 3.9 - 7 T ape feeder …
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
155
3.9.2.4 SIPLACE Smart Feeder 12 mm X tape feeder module
3
Fig. 3.9 - 6 SIPLACE Smart Feeder 12 mm X tape feeder module
3
3
12 mm X tape feeder module Item no. 00141371-xx
12 mm X tape feeder module with splice sensor Item no. 00141391-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment From 4 mm to 16 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
156
3.9.2.5 Tape feeder module 16 mm X
3

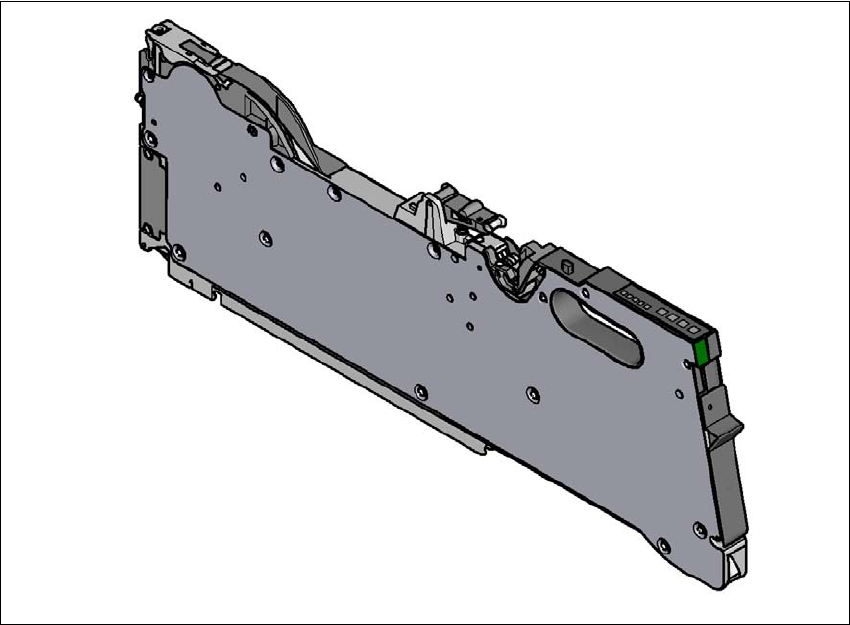

Fig. 3.9 - 7 Tape feeder module 16 mm X
3
Tape feeder module, 16 mm X Item no. 00141272-xx
16 mm X tape feeder module with splice sensor Item no. 00141292-xx
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
157
3.9.2.6 SIPLACE Smart Feeder 16 mm tape feeder module
3
Fig. 3.9 - 8 SIPLACE Smart Feeder 16 mm X tape feeder module
3
Tape feeder module, 16 mm X Item no. 00141372-xx
16 mm X tape feeder module with splice sensor Item no. 00141392-xx
Width 22.6 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
