4.3.6 Presetting board conveyor height

 Push the forks of the fork lift under the machine, as shown in fig. 4.3 - 2.

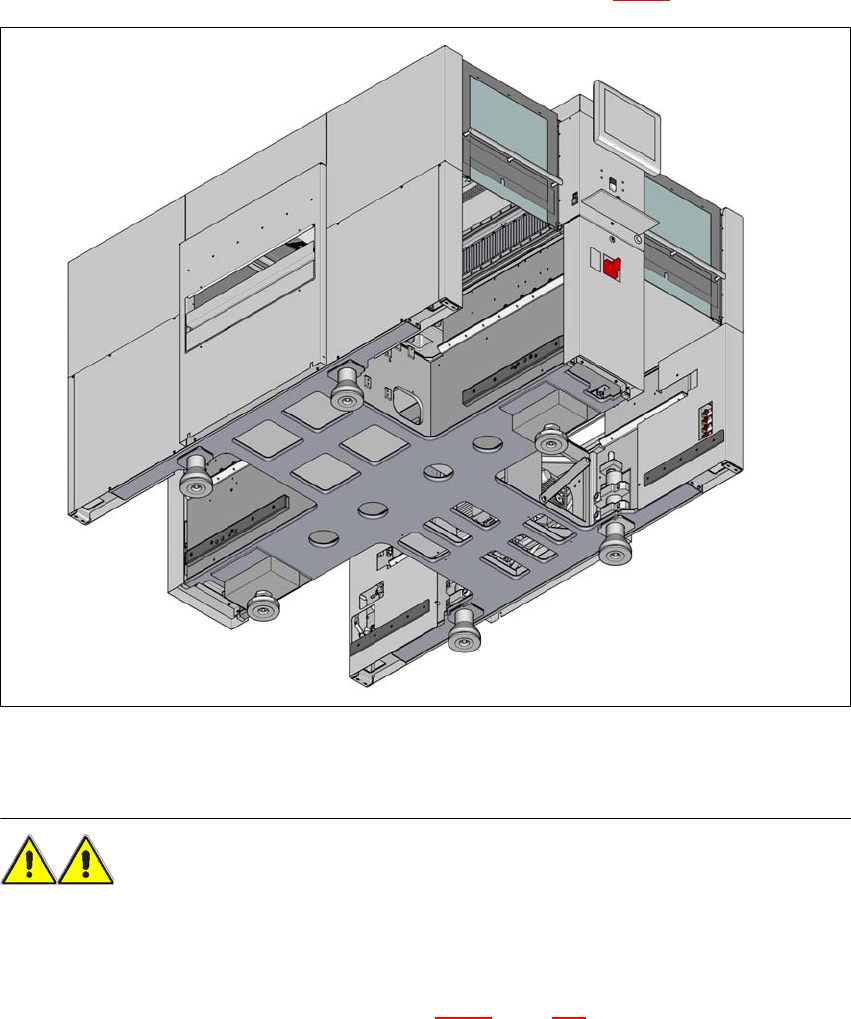

Fig. 4.3 - 2 Contact surfaces - forks parallel to the direction of PCB transport (example of SX4)

(1) Contact surfaces for fork lift truck forks

WARNING 4

Please note the following points before you raise the machine in order to avoid irreversible dam-

age to the machine:

– The forks may only be opened to a degree which ensures that they are still within the area of

the two machine feet (contact points see fig. 4.3 - 2

, page 212). The distance between the

machine feet is 776 mm. It is expressly prohibited to increase the fork opening so that the

machine is lifted at the sides of the machine frame. This would lead to the machine frame be-

ing distorted.

User Manual SIPLACE SX4/DX4 4 Setting up and commissioning

From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine

213

 Make sure that the forks are evenly loaded when you lift the machine. A firm support between

the forks and machine will prevent the machine tilting when it is raised. This will also prevent

a one-sided load on the machine feet, which would deform the fixing of the machine feet. We

recommend that a second person watch the machine as it is raised, and make sure that the

machine does not tip to one side when lifted with the fork-lift.

 With the fork-lift, raise the machine approximately 35 cm. This prevents the risk of any injuries

to your feet if the machine feet are unintentionally lowered.

The machine stands on 6 feet.

– 4 outer machine feet (item 1 in fig. 4.3 - 4

, page 214 )

There are two versions of the outer machine feet: 4

– Outer machine feet for the PCB conveyor height 830 mm, length 369 mm,

Item no. 03041008-01 (item 1 in fig. 4.3 - 3

)

– Outer machine feet for the PCB conveyor heights 900,930 and 950 mm, length

439 mm, Item no. 03000890-02 (item 2 in fig. 4.3 - 3

– 2 middle machine feet (item 2 in fig. 4.3 - 4

, page 214) with 2 spacers (item 3 and item 4 in

fig. 4.3 - 4

, page 214) for height adjustment, where necessary.

Fig. 4.3 - 3 Outer machine feet - two versions (dimensions in millimeters)

4 Setting up and commissioning User Manual SIPLACE SX4/DX4

4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN

214

Fig. 4.3 - 4 Machine feet (example of SX4)

(1) Outer machine foot, 4 x, 2 versions (see fig. 4.3 - 3, page 213 )

(2) Middle machine foot, 2 x

(3) Spacer on the side of the power supply unit

(2)

(1)

(3)
