User Manual SIPLACE SX4/DX4 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
221
4.3.7.2 Machine foot clearances for the PCB quad lane conveyor (SX4 only)
4

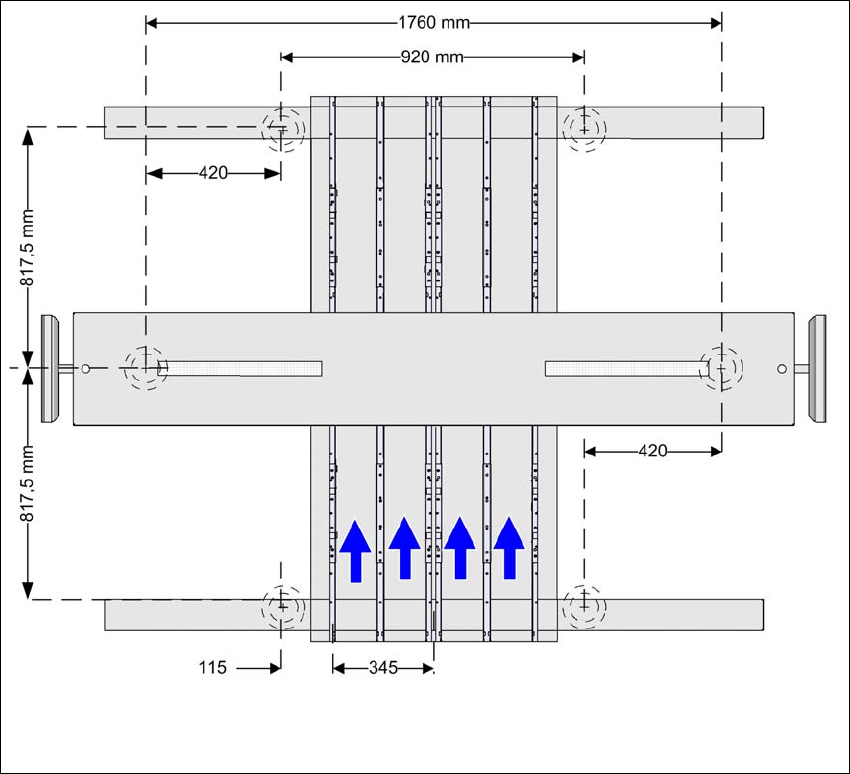

Fig. 4.3 - 10 Machine foot clearances for the quad lane conveyor in millimeters
Fixed outer conveyor
edges
4 Setting up and commissioning User Manual SIPLACE SX4/DX4
4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN
222
4.3.8 Integrating the machine into the line
Observe the general warnings in section 4.3.1, page 207.
Observe the warnings for transportation of the machine in section 4.3.2, page 208.
For details of tools and equipment, refer to section 4.3.5, page 211.
4.3.8.1 Aligning and adjusting the machines in the line
With the fork-lift, raise the machine until the weight is taken off the machine feet.
Determine the PCB conveyor height for the machine in the line and use the hexagon socket
head screw to adjust the height approximately.
You may need to fit the machine feet to the relevant PCB conveyor height (see 4.3.6 on page
212).
Position the machine on the free location on the line using the fork-lift.
Pay attention to the alignment of the PCB conveyors and check the distance to the previous
machine.
WARNING 4
Lower the machine slowly. A second person should look underneath to ensure that all the
machine foot touch the floor at the same time. If the machine feet on one side hit the ground
hard, the fixings may be damaged.
4
User Manual SIPLACE SX4/DX4 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
223
Align the machine in the X and Y direction with the help of the machine spirit level.
Place the machine spirit level in both the X and Y direction, on the sides of the board conveyor
in placement area 1 of the SIPLACE SX4 (see fig. 4.3 - 11
) or in the center of the placement
area for SIPLACE DX4. The board conveyor width has been preset:
Single conveyor 210 mm
Dual conveyor, lane 1 100 mm
Dual conveyor, lane 2 210 mm 4
PLEASE NOTE: 4
When using a dual conveyor, always place the spirit level on the outer sides of the machine
for measuring the X direction.
Measure the distance between the upper edge of the PCB conveyor belt and the underside.
This distance should be 900 mm, 930 mm or 950 mm.
4
Fig. 4.3 - 11 Adjusting the machine in the X and Y directions (example of SX4)
Use the fork wrench to adjust the setting screw M24x2x120 (item 1 in fig. 4.3 - 12, page 224),
so that the fluid in the machine spirit level does not deviate from its zero point at the required
conveyor height.
