3 Technical data and assemblies User Manual SIPLACE SX4/DX4 3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN 172 3.9.5.3 Feeder module adapter for the X series with reject c onv…
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
171
3
Fig. 3.9 - 18 Feeder module adapter for the X series with linear vibratory feeder
(1) Adapter for X series feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34. mm
Tracks per feeder module 1, 2 or 3 3
Occupied feeder module locations 3 3
Stock of components Up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / x 3 3
15 mm wide / x 2 3
> 15 mm wide / x 1 3
30 mm wide / 1 x 3
Vibrating time Variable with SIPLACE Pro from 400 to
over 1,000 ms 3
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
172
3.9.5.3 Feeder module adapter for the X series with reject conveyor
3

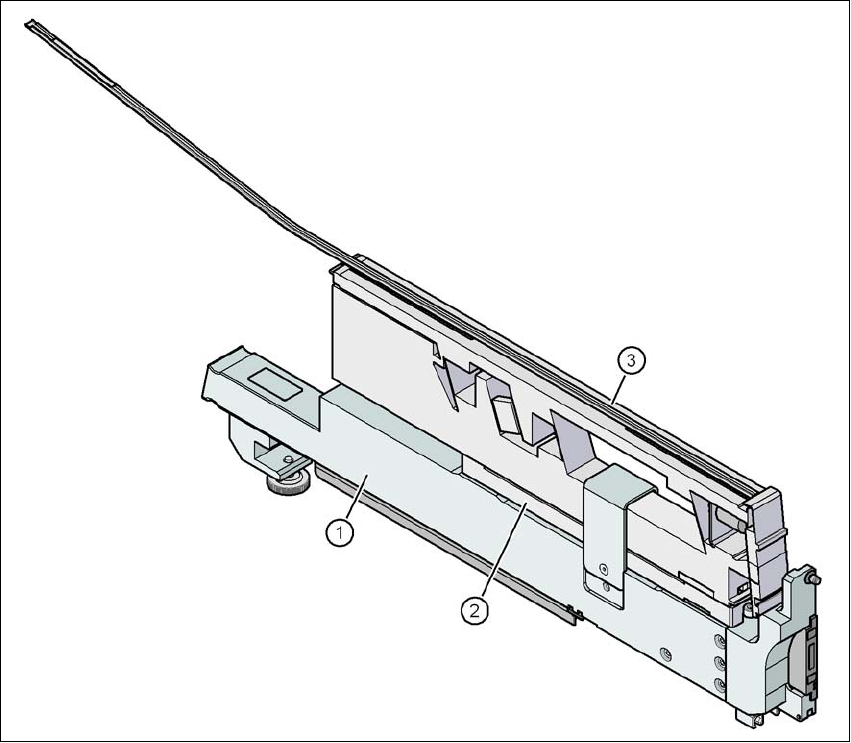

Fig. 3.9 - 19 Feeder module adapter for the X series with reject conveyor
(1) Adapter for X series feeder modules (item no. 00141305-xx)
(2) Adapter plate for reject conveyor (item no. 00141308-xx)
(3) Reject conveyor
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
173
3.9.6 Energy and data interface (EDIF) for X feeder modules
Item no. 00141247-xx Energy and data interface for X feeder modules
3
Fig. 3.9 - 20 Energy and data interface for X feeder modules
(1) Button for releasing the locking latch
(2) Operator panel
(3) Data cable
(4) Power supply cable
(5) Electronic housing
(6) Fold-out feet
(7) Omega profile for guiding the feeder modules
(8) Locking latch
(9) Locating hole for the front centering pin of the feeder module
(10) Base plate
(11) Tape reel holder
