3 Technical data and assemblies User Manual SIPLACE SX4/DX4 3.3 Dimensions and weight From softwar e version SC.706.xx Version 06/2012 EN 108 3.3.5 Center of gravity 3 Fig. 3.3 - 5 Center of gravity in millimeters (exa m…
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.3 Dimensions and weight
107
3.3.4 Maneuvering radii for the component trolleys in SX4 machines
3

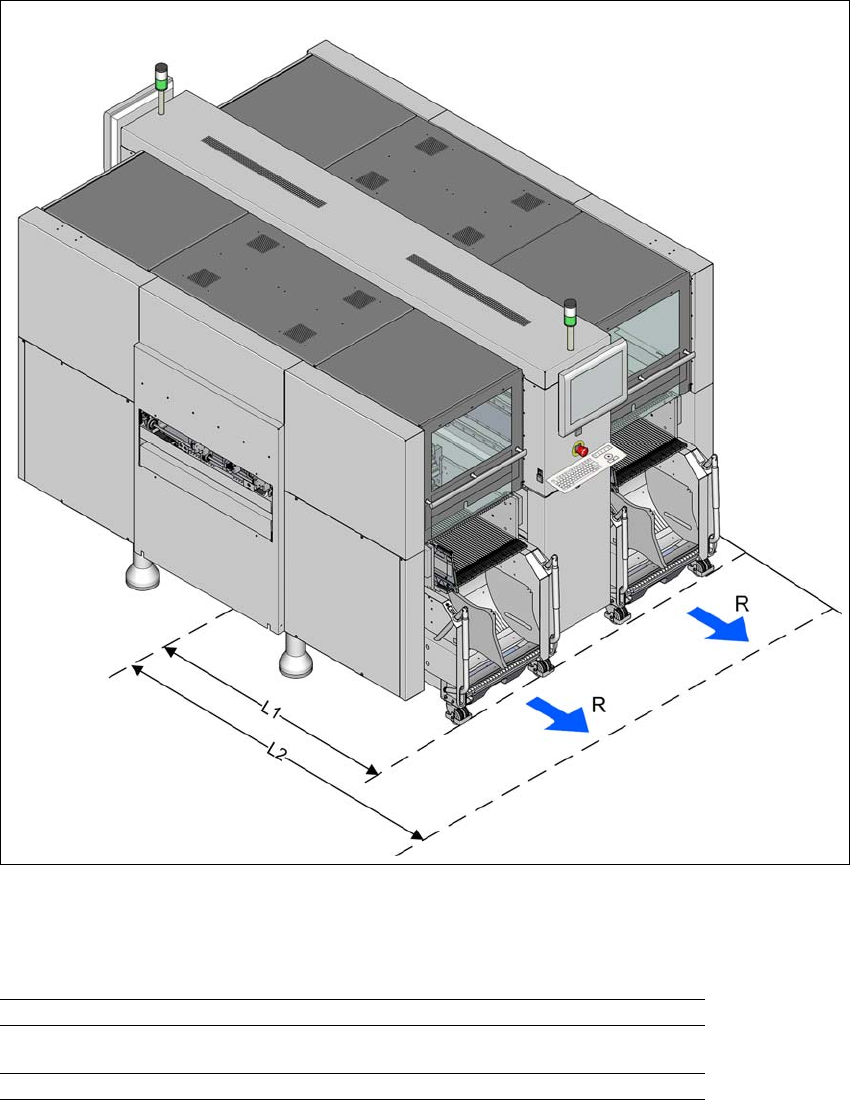

Fig. 3.3 - 4 Maneuvering radii for the component trolleys in SX4 machines
The maneuvering radii "R" for the component trolleys in SX4 machines is:
3
Maneuvering radius R 600 mm
Distance L1: Machine center to outer edge of X component
trolley
1257.50 mm
Distance L2: Machine center to wall 1857.50 mm
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.3 Dimensions and weight From software version SC.706.xx Version 06/2012 EN
108
3.3.5 Center of gravity
3
Fig. 3.3 - 5 Center of gravity in millimeters (example of SX4)
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 630 mm
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
900 mm.
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.4 Overview of the modules
109
3.4 Overview of the modules
3.4.1 Overview of SIPLACE SX4 assemblies
3
3
Fig. 3.4 - 1 SX4 machine - overview of assemblies
(1) Location 1 with component trolley, tape cutter, empty tape duct
(2) Location 2 with component trolley, tape cutter, empty tape duct
(3) Location 3 with docking unit, tape cutter, empty tape duct
(4) Location 4 with docking unit, tape cutter, empty tape duct
(5) Gantry 1 at location 1 with placement head
(6) Gantry 2 at location 1 with placement head
(7) Monitor with keyboard (2x)
(8) Board conveyor
(T) Direction of PCB transport
(1)
(2)
(3)
(4)
(7)
(8)
(6)
(7)
(5)
