2.7 Safety equipment
2.7.1 Protective covers
The travel range of the gantries is covered with four movable protective covers. The protective
hoods and covers serve as protective devices which prevent unauthorized access to the inside of
the machine.
CAUTION
Do not stand on or otherwise access the protective hoods and covers. 2
2

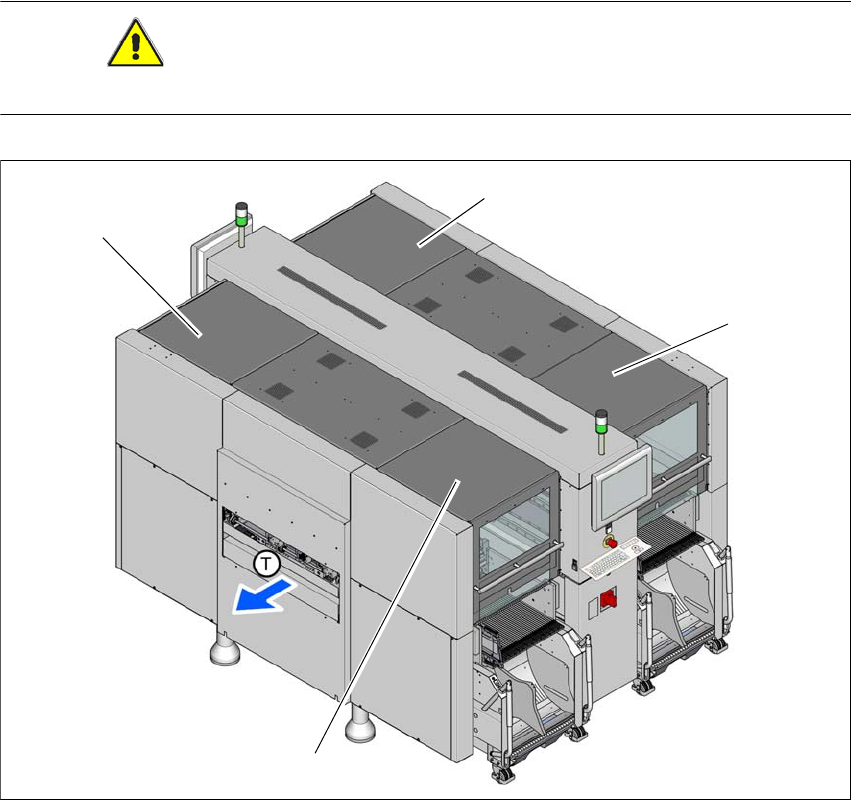

Fig. 2.7 - 1 Protective covers
(example of SX4)
(1) Protective cover location 1
(2) Protective cover location 2
(3) Protective cover location 3
(4) Protective cover location 4
(4)
(1)
(3)
(2)
User Manual SIPLACE SX4/DX4 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.7 Safety equipment
65
Function 2
If the protective cover is swung upwards, the power supply to the gantry axes will be immediately
interrupted. The gantry axes stop moving. The message "Close cover" is displayed on the screen.
Close the protective covers and press the START button (item 1 in fig. 2.7 - 2), to continue
placement.
2

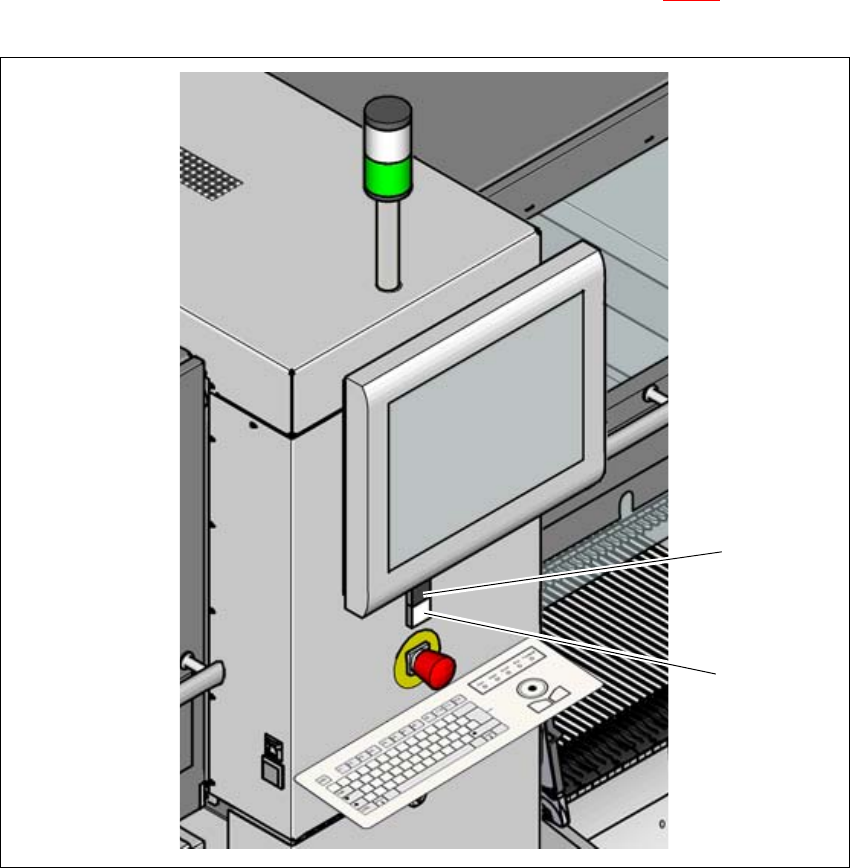

Fig. 2.7 - 2 Position of the start buttons (green) on the machine (example of SX4)
(1) STOP button (black) on machine
(2) Start button (green) on the machine
(2)
(1)
2 Operational safety User Manual SIPLACE SX4/DX4
2.7 Safety equipment From software version SC.706.xx Version 06/2012 EN
66
2.7.2 Switches and buttons on the machine
2.7.2.1 Position of switches and buttons on the machine
2

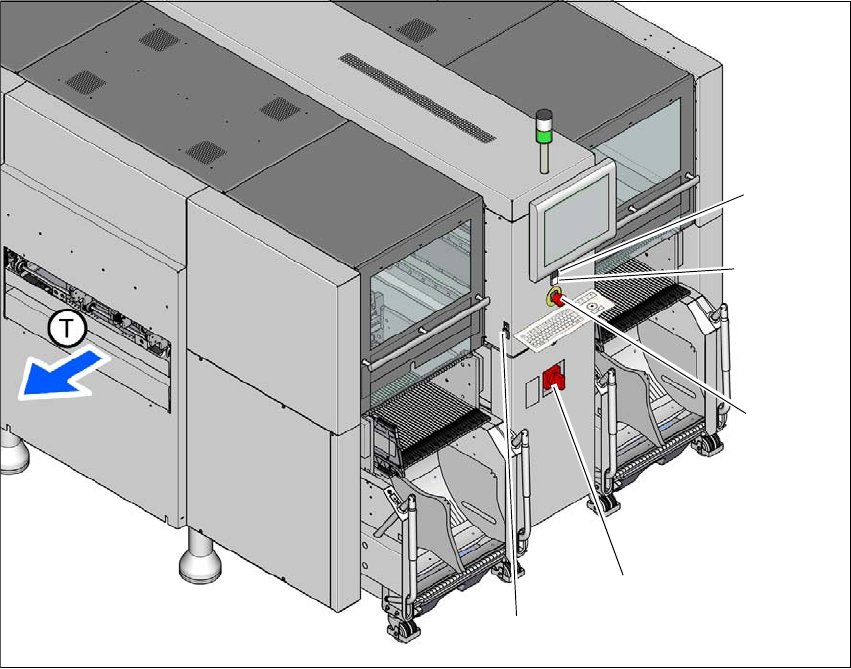

Fig. 2.7 - 3 Position of switches and buttons - View of the PCB output side (example of SX4)
(1) Stop button (black)
(2) Start button (green)
(3) EMERGENCY STOP button
(4) Main power switch
(5) Button for docking and undocking the component trolley at the respective location
(T) PCB transport direction
(2)
(1)
(3)
(4)
(5)
