2.7.4.2 Structure of the signaling circuit
The following modules in the signaling circuit are queried individually:
– The protective cover switches
– Signaling contact elements for the two component trolleys/DX changeover tables
– EMERGENCY STOP button
All the signaling contacts are closed when the machine is on standby. If a protective cover, for ex-
ample, is raised, the associated signaling contact opens. This status change is signaled to the
control computer via a digital CAN bus input signal from the I/O control unit. An error message to
this effect appears on the user interface.
2.7.4.3 Description of the functions of the EMERGENCY STOP loops
The following conditions must be fulfilled in order to start and operate the machine:
– All component trolleys/DX changeover tables must be docked in and connected.
– All protective covers must be closed.
– Both emergency stop buttons must be released.
– The minimum operating pressure must have been reached.
– The software release ("Control ON") must be enabled, so that the start signal from the "Start"
button can switch on the SSK protective contactor combination.
– 24V- are made available by the output of the AC/DC converter to the start button and the pro-
tective contactor combination (SSK).
– If one of the start buttons is now pressed, the protective contactor combination SSK K6 will
switch and activate the following components:
– 260 V - intermediate circuit voltage for the gantry axes
– 150 VDC intermediate circuit voltage for the star axes
– The Gantry Control Unit (GCU) for the X and Y axes is supplied with voltage via the in-
rush current limiter servo.
– 42 VDC operating voltage is switched to the used tape cutters.
– 42 V and 24 V are switched through for PCB conveyor control (TSP).
The machine is then ready for use.
User Manual SIPLACE SX4/DX4 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.7 Safety equipment
75
2

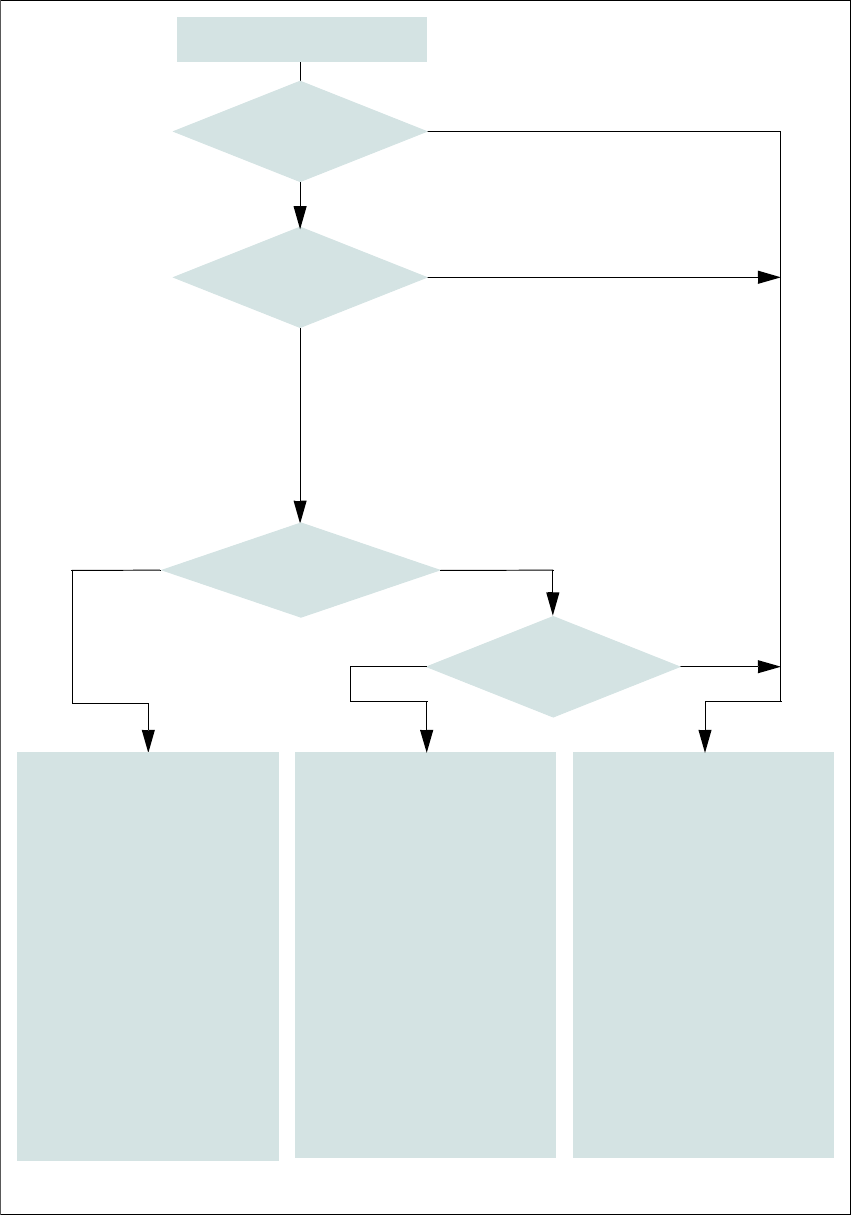

Fig. 2.7 - 8 EMERGENCY STOP loops for SIPLACE SX4
Start button pressed
No
No
Yes
No
No
Yes
Yes
No
Yes
2
Active
SSK
a
No
Voltage
Y axis 0 V-
X axis 0 V-
Star axis 0 V-
DP axis 42 V-
Z axis (C&P, TH) 42 V-
Z axis (CPP) 0 V-
Active
PCB conveyor Yes
Lifting table No
PCB clamping No
Width adjustment No
Tape cutter No
Component trolley feeding
device Yes
2
Active
SSK
a
No
Voltage
Y axis 0 V-
X axis 0 V-
Star axis 0 V-
DP axis 40 V-
Z axis (C&P, TH) 40 V-
Z axis (CPP) 0 V-
Active
PCB conveyor No
Lifting table No
PCB clamping No
Width adjustment No
Tape cutter No
Component trolley feeding
device Yes
a) SSK protective contactor combination K3
Yes
Compressed
air min. 0.5 MPa
(5.0 bar)?
EMERGENCY STOP button
pressed?
- Protective cover open?
Component trolley
EMERGENCY STOP circuit
interrupted?
Is safety mode enabled on
the user interface
?
2
Active
SSK
a
Yes
Voltage
Y axis 260 V-
X axis 260 V-
Star axis 150 V-
DP axis 42 V-
Z axis (C&P, TH) 42 V-
Z axis (CPP) 150 V-
Active
PCB conveyor Yes
Lifting table Yes
PCB clamping Yes
Width adjustment Yes
Tape cutter. Yes
Component trolley feeding
device Yes
2 Operational safety User Manual SIPLACE SX4/DX4
2.7 Safety equipment From software version SC.706.xx Version 06/2012 EN
76
2
Fig. 2.7 - 9 EMERGENCY STOP loops for SIPLACE DX4
Start button pressed
No
No
Yes
No Yes
No
Yes
2
Active
SSK
a
No
Voltage
Y axis 0 V
X axis 0 V
Star axis 0 V
DP axis 42 V-
Z axis (C&P 42 V-
Active
PCB conveyor Yes
Lifting table No
PCB clamps No
Width adjustment No
Empty tape cutter No
2
Active
SSK
a
No
Voltage
Y axis 0 V
X axis 0 V
Star axis 0 V
DP axis 40 V-
Z axis (C&P 40 V-
Active
PCB conveyor No
Lifting table No
PCB clamps No
Width adjustment No
Empty tape cutter No
a) SSK protective contactor combination K3
Yes
Compressed
air min. 0.5 MPa
(5.0 bar)?
EMERGENCY STOP button
pressed?
- Protective cover open?
Is safety mode enabled on
the user interface
?
2
Active
SSK
a
Yes
Voltage
Y axis 260 V-
X axis 260 V-
Star axis 150 V-
DP axis 42 V-
Z axis (C&P)
Active
PCB conveyor Yes
Lifting table Yes
PCB clamping Yes
Width adjustment Yes
Tape cutter Yes
