5 Working with the machine User Manual SIPLACE SX4/DX4 5.15 Docking the component trolley in or out From software version SC.706.xx Version 0 6/2012 EN 292 5.15.4 Docking the component trolley 5 Fig. 5.15 - 3 Component t…
User Manual SIPLACE SX4/DX4 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.15 Docking the component trolley in or out
291
5

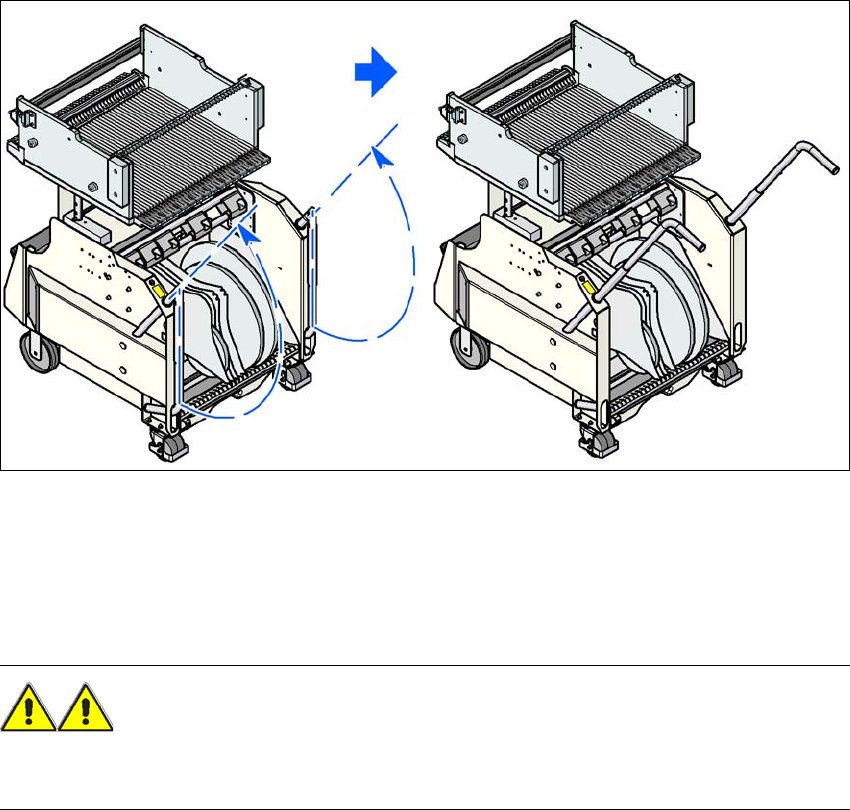

Fig. 5.15 - 2 Component trolley - swivel handles up to push
With both hands on the handles, pull the component trolley out of the machine.
5.15.3 Safety instructions for moving the component trolley
WARNING 5
To prevent accidents, ALWAYS follow the rules listed below when you move the component trol-
ley.
Always hold the handles with both hands when you want to move the component trolley.
Remember that a component trolley with the full complement of feeder modules can tip over
sideways or forward on gradients of 20° or more.
Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
5 Working with the machine User Manual SIPLACE SX4/DX4
5.15 Docking the component trolley in or out From software version SC.706.xx Version 06/2012 EN
292
5.15.4 Docking the component trolley
5

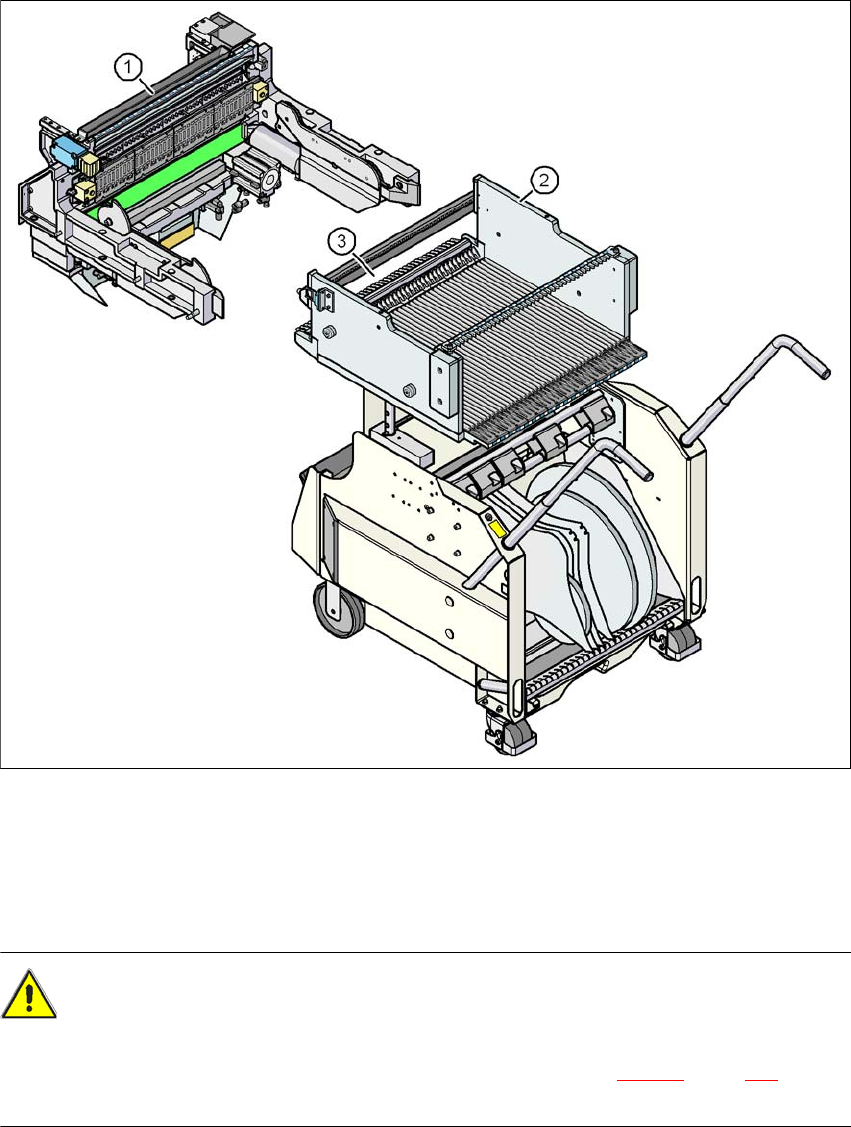

Fig. 5.15 - 3 Component trolley and component trolley docking unit, SIPLACE X series
(1) Component trolley docking unit, SIPLACE X series
(2) Component trolley, SIPLACE X series
(3) Locking latches
CAUTION 5
Be careful when you push the component trolley for the SIPLACE X series
into the machine and make sure that the locking latches (item 3 in fig. 5.15 - 3
, page 292) do not
bump into obstacles.
User Manual SIPLACE SX4/DX4 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.15 Docking the component trolley in or out
293
PLEASE NOTE 5
Cut the component tapes off flush at the front end of the X feeder modules before you dock in
the X series component trolley,
CAUTION 5
Check that the placement head is outside the range of the component trolley.
Carefully push the component trolley into machine as far as the stop.
PLEASE NOTE 5
Close the protective covers since the component trolley can only be docked in if the covers are
closed.
Press the button on the respective machine location until the trolley is completely docked in.
Push the sleeve (item 1 in fig. 5.15 - 4, page 293) on both handles up and swivel the handle
down (item 2 in fig. 5.15 - 4
, page 293).
5

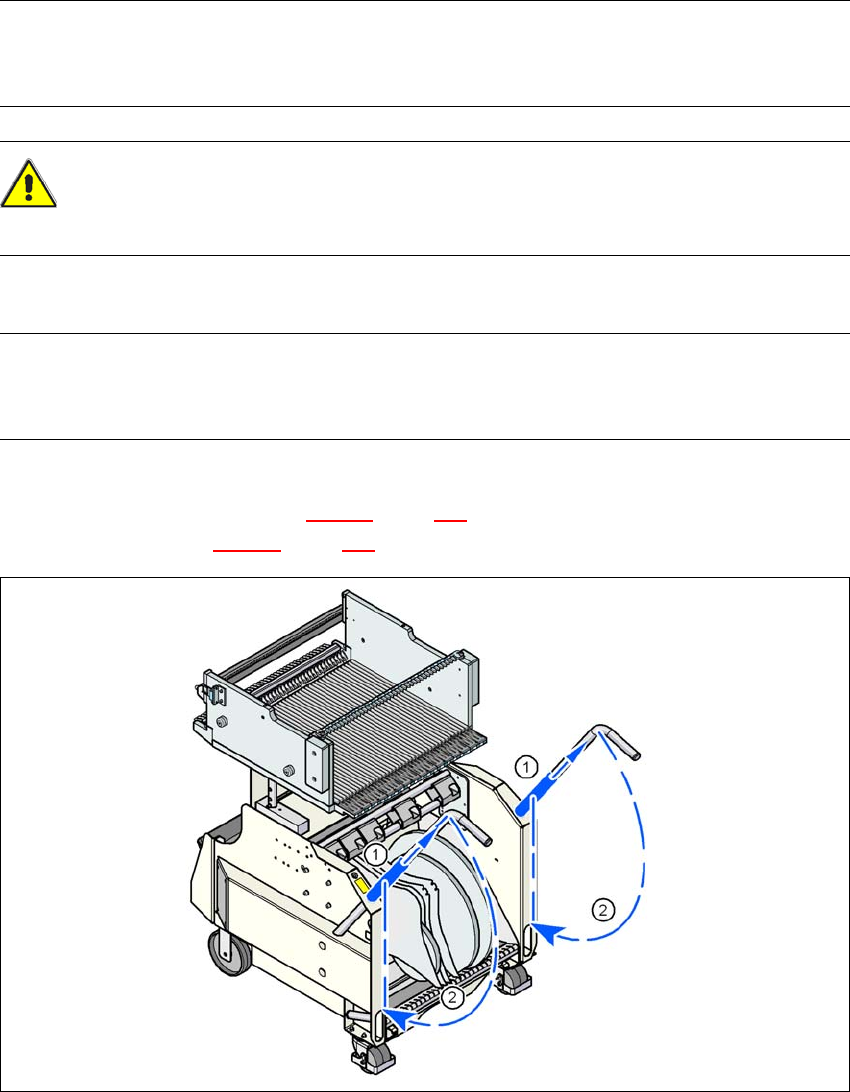

Fig. 5.15 - 4 X series component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
