User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
161
3.9.2.10 Tape feeder module 56 mm X
3

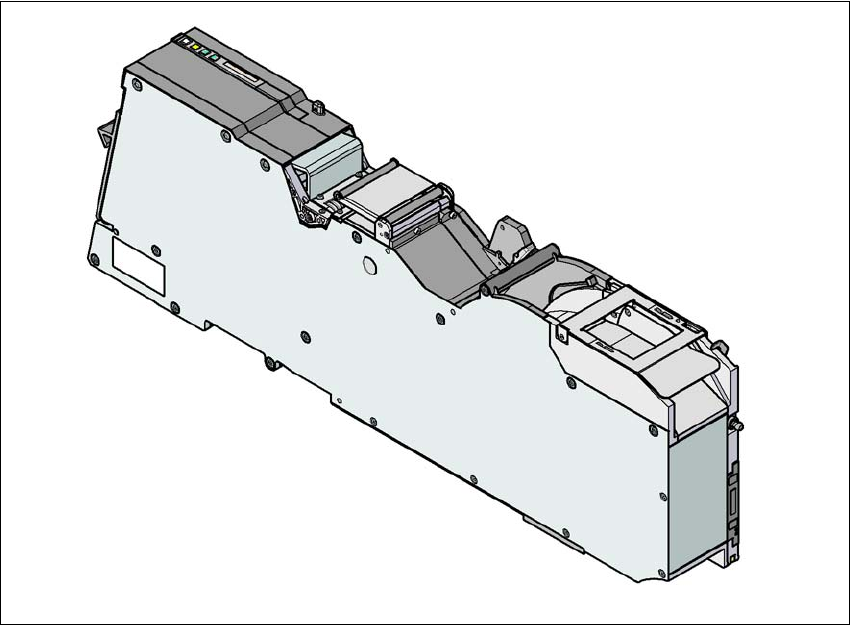

Fig. 3.9 - 12 Tape feeder module 56 mm X
3
3
3
Tape feeder module 56 mm X Item no. 00141276-xx
56 mm X tape feeder module with splice sensor Item no. 00141296-xx
Width 69.8
Feeder module locations filled 6
Conveyor increment From 4 mm to 64 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
162
3.9.2.11 Tape feeder module 72 mm X
3

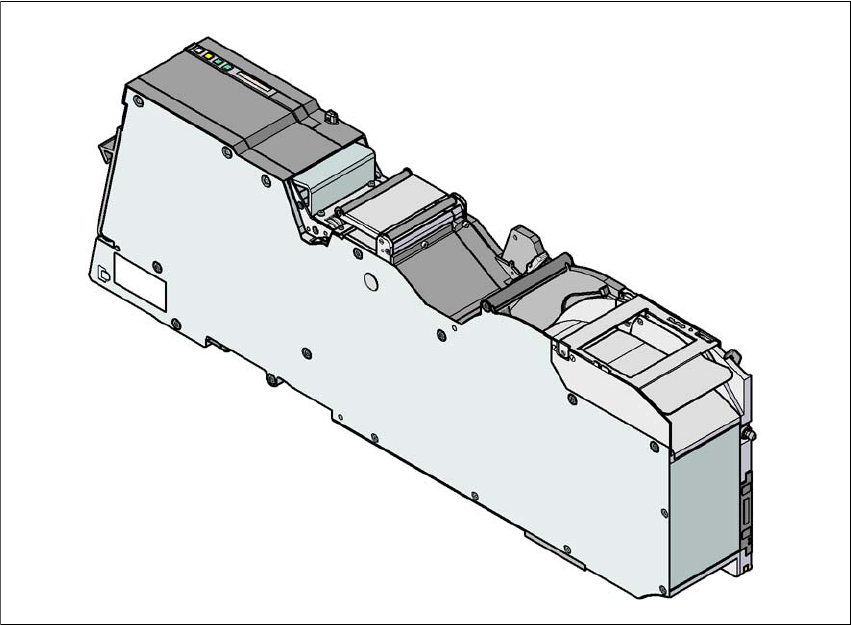

Fig. 3.9 - 13 Tape feeder module 72 mm X
3
3
3
Tape feeder module 72 mm X Item no. 00141277-xx
72 mm X tape feeder module with splice sensor Item no. 00141297-xx
Width 81.6
Feeder module locations filled 7
Conveyor increment From 4 mm to 80 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
163
3.9.2.12 Tape feeder module 88 mm X
3
Fig. 3.9 - 14 Tape feeder module 88 mm X
3
3
Tape feeder module 88 mm X Item no. 00141278-xx
88 mm X tape feeder module with splice sensor Item no. 00141298-xx
Width 105.2 mm
Feeder module locations filled 9
Conveyor increment From 4 mm to 96 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
