User Manual SIPLACE SX4/DX4 1 Introduction From software version SC.706.xx Version 06/2012 EN 1.3 Machine description 19 1.2.1 Overview of placem ent head configuration 1 1.3 Machine description 1.3.1 The SIPLACE princip…

1 Introduction User Manual SIPLACE SX4/DX4

1.2 SIPLACE DX4 From software version SC.706.xx Version 06/2012 EN

1.2 SIPLACE DX4

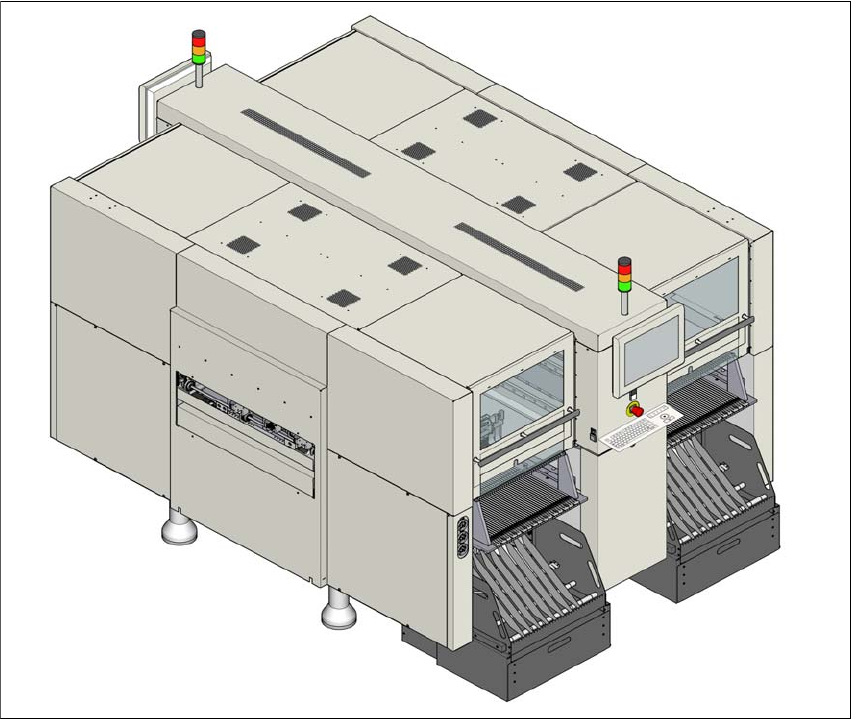

Fig. 1.2 - 1 SIPLACE DX4 placement machine

The SIPLACE DX4 placement machine has the following distinguishing features:

– High precision,

– Intelligent placement optimization,

– Intelligent configuration strategies,

– Placement performance up to the high end process range

The Collect&Place procedure is used for processing the components.

The SIPLACE DX4 placement machine has four gantries. These can be quickly and accurately

positioned by linear motors, moving independently of one another in the X and Y directions.

There are four locations with DX tables available for supplying components. These can be config-

ured with up to 40 tracks.

User Manual SIPLACE SX4/DX4 1 Introduction

From software version SC.706.xx Version 06/2012 EN 1.3 Machine description

1.2.1 Overview of placement head configuration

1.3 Machine description

1.3.1 The SIPLACE principle

The placement heads pick up the components from the feeder modules (fixed position) on the

component trolleys or DX tables and then place the waiting boards.

The SIPLACE SX4 placement machine has two placement areas and a dual conveyor. Two

boards can be placed at the same time on dual conveyors.

The SIPLACE DX4 placement machine has two placement areas and a single conveyor.

The principle of "stationary component supply" and "stationary PCB", which have proven them-

selves in the other SIPLACE machines, offer a range of decisive benefits:

– Refilling components and splicing on tapes does not cause downtime.

– The vibration-free component feeder means that even the smallest components (e.g. 01005)

are picked up reliably.

– The PCB, which does not move during the placement process, prevents the components slip-

ping.

– The combination of placement heads with nozzle changers always guarantees an optimum

nozzle configuration for every placement process, thus minimizing traversing paths and opti-

mizing the placement sequence.

High flexibility, efficiency and reliable setups are the guarantee for top productivity in the SIPLACE

machines.

Minimum down times increase utilization and thus help to increase productivity.

Placement area 1 Placement area 2

C&P20 / C&P20 C&P20 / C&P20

1 Introduction User Manual SIPLACE SX4/DX4

1.3 Machine description From software version SC.706.xx Version 06/2012 EN

1.3.2 Serial number of the machine

The serial number of the machine can be found on the inside of the machine frame at location 1.

Fig. 1.3 - 1 Position of typeplate with serial number (example of SX4 machine)

(T) Direction of travel

(1) Typeplate

(1)
