3 Technical data and assemblies User Manual SIPLACE SX4/DX4 3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN 152 3.9.2 T echnical data for the SI PLACE X series feeder modules T…
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
151
3
Fig. 3.9 - 2 8 mm X tape feeder module - back view
(1) Entry to the tape guide channel with tape spring
(2) Flap on the cover foil container
(3) Integrated blade for cutting off the cover foil
(4) Removal handle, engaged
(5) Operator panel
(6) Drive motor for the cover foil packing device
(7) Drive motors for the tape conveyor
(8) Rotary valve for removing components
(9) Front slider guide
(10) Back slider guide
(11) Graphical representation of the pick-up position in relation to the component size
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
152
3.9.2 Technical data for the SIPLACE X series feeder modules
The following pages contain pictures of the X series feeder modules and the technical data.
3.9.2.1 Tape feeder module 2x8 mm X
3

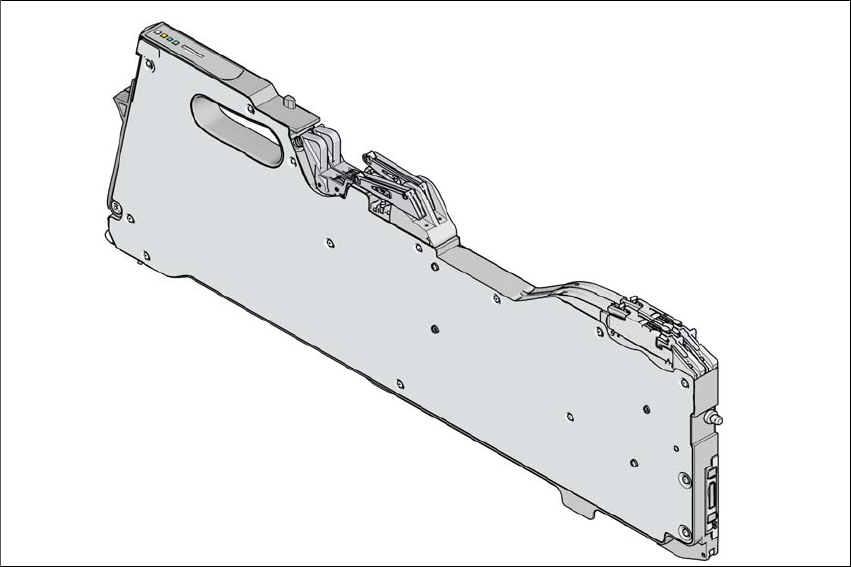

Fig. 3.9 - 3 Tape feeder module 2x8 mm X
3
Tape feeder module 2x8 mm X Item no. 00141269-xx
Tape feeder module 2x8 mm X with splice sensor Item no. 00141289-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for one tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
153
3.9.2.2 8 mm X tape feeder module
3
Fig. 3.9 - 4 8 mm X tape feeder module
3
8 mm X tape feeder module Item no. 00141270-xx
8 mm X tape feeder module with splice sensor Item no. 00141290-xx
Width 10.8 mm
Feeder module locations filled 1
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
