3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
170
3.9.5.1 Feeder module adapter for the X series with label presenter
3

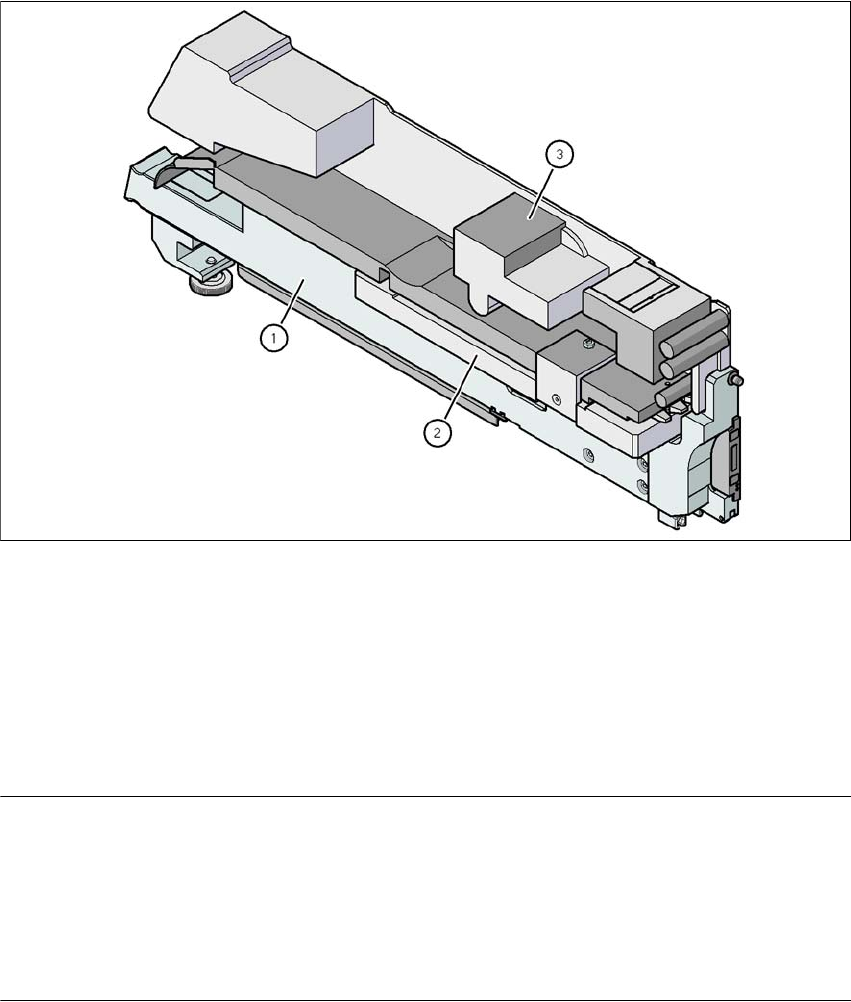

Fig. 3.9 - 17 Feeder module adapter for the X series with label presenter
(1) Adapter for X series feeder modules (item no. 00141305-xx)
(2) Adapter plate for label presenter (item no. 00141310-xx)
(3) Label presenter
3.9.5.2 Feeder module adapter for the X series with linear vibratory feeder
PLEASE NOTE 3
An adapter plate is supplied as standard with the adapter for X series feeder modules:
– The adapter plate should be used for component heights up to 16.5 mm.
– Component heights between 16.5 mm and 25 mm are processed without an adapter
plate.
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
171
3
Fig. 3.9 - 18 Feeder module adapter for the X series with linear vibratory feeder
(1) Adapter for X series feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34. mm
Tracks per feeder module 1, 2 or 3 3
Occupied feeder module locations 3 3
Stock of components Up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / x 3 3
15 mm wide / x 2 3
> 15 mm wide / x 1 3
30 mm wide / 1 x 3
Vibrating time Variable with SIPLACE Pro from 400 to
over 1,000 ms 3
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
172
3.9.5.3 Feeder module adapter for the X series with reject conveyor
3
Fig. 3.9 - 19 Feeder module adapter for the X series with reject conveyor
(1) Adapter for X series feeder modules (item no. 00141305-xx)
(2) Adapter plate for reject conveyor (item no. 00141308-xx)
(3) Reject conveyor
