5.7.2.2 Frequency of flashes
5
5
5.7.2.3 Priorities
5
5.7.2.4 Reaction time
Each change to the machine status is shown at the indicator lamps within three seconds.
Normal flashing Green indicator lamp: 700 ms off, 700 ms on
White indicator lamp: 500 ms off, 500 ms on
Short flashing 100 ms off, 1000 ms on
Fast flashing 100 ms off, 200 ms on
Type of warning Priority
Definition for fast flashing Top
Definition for normal flashing Medium
Definition for short flashing Lowest
5 Working with the machine User Manual SIPLACE SX4/DX4
5.8 Changing shift From software version SC.706.xx Version 06/2012 EN
262
5.8 Changing shift
5.8.1 Activities at shift change
Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift
starts. This minimizes extended down times.
At the shift change, pass important information on to the next operator. This includes, for in-
stance, changes to the placement program. Also read through the list of the descriptions of
the steps to take in section 5.12
, page 285.
Carry out a setup check.
Make sure that the feeder modules are equipped with the correct components, that they are
at the correct locations on the component trolley/DX tables/DX changeover tables and that
the conveyor increment is set correctly.
Clean the following line assemblies:
Empty the reject bin and carefully vacuum the area around the reject bin.
Carefully vacuum the nozzle changer, feeder modules and the component trolley/DX table.
Empty the waste tape container. Follow the safety instructions given in section 5.8.2, page
263
.
User Manual SIPLACE SX4/DX4 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.8 Changing shift
263
5.8.2 Safety instructions for emptying the waste tape container
5

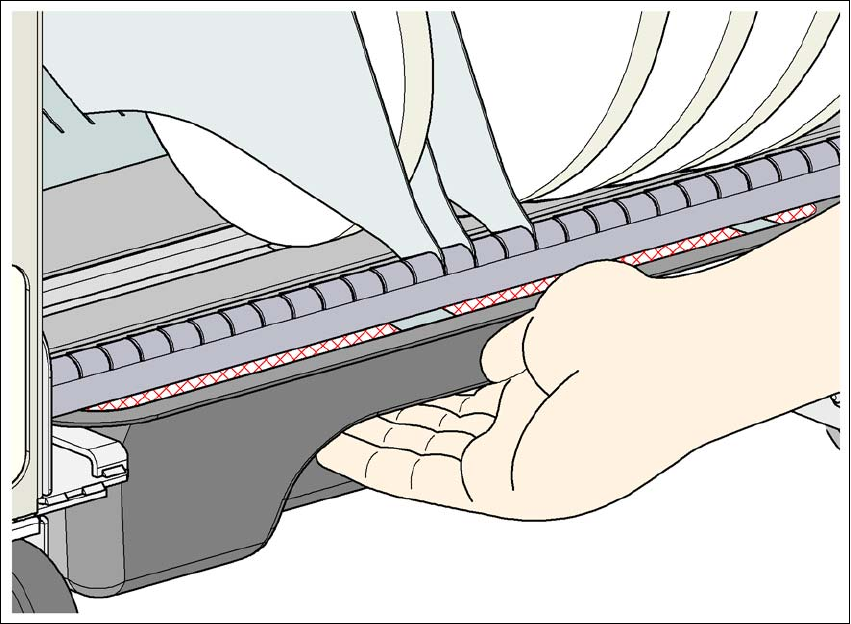

Fig. 5.8 - 1 Safety instructions for emptying the waste tape container
The waste tape container must be pulled out of the component trolley for emptying. There is a risk
of catching your thumbs as you do so.
To avoid this risk, take hold of the underside of the grab recess on the waste tape container
with your fingers and place your thumbs on top of the grab recess.
Do NOT put your thumbs in the gap between the tape container and waste tape container as
you could catch your thumbs if you do.
