User Manual SIPLACE SX4/DX4 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.5 Docking station for the component trolley of the SIPLACE X series
327
6.5.5 Adjusting the docking station to the PCB conveyor height
The component trolley docking unit of the docking station can be easily converted to PCB con-
veyor heights of 900, 930 and 950 mm.
6

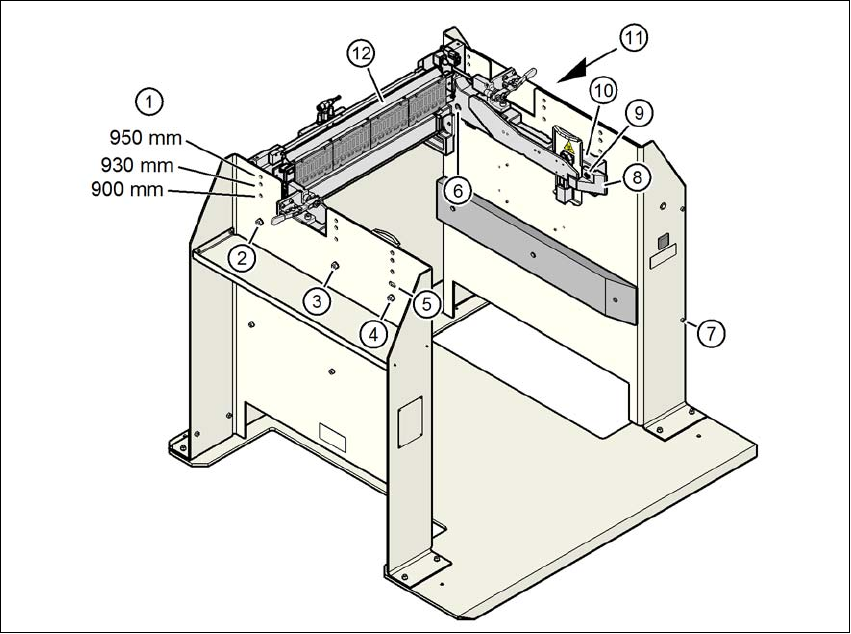

Fig. 6.5 - 5 Adjusting the component trolley docking unit to the PCB conveyor heights
(1) Holes for the PCB conveyor height
(2) Hexagonal nut M8 and washer, 2x each
(3) Hexagonal nut M8 and washer, 2x each
(4) Hexagonal nut M8 and washer, 2x each
(5) Slot for height adjustment
(6) Hexagon socket-head screw M8x40, 6x
(7) Hexagon socket-head screw M5x12, 4x
(8) Guidance
(9) Hexagon socket-head screw M8x18, 2x
(10) Side panel, component trolley docking unit
(11) Cover on docking station
(12) Feeder module control unit (FCU)
6 Station extensions User Manual SIPLACE SX4/DX4
6.5 Docking station for the component trolley of the SIPLACE X series From software version SC.706.xx Version 06/2012 EN
328
6.5.5.1 Tools
You will need the following tools to adjust the height of the component trolley docking unit:
– Allen wrench, set
– Fork wrench, SW 13
6.5.5.2 Converting the component trolley docking unit to other heights
WARNING 6
Disconnect the docking station from the power supply.
Disconnect the docking station from the compressed air supply.
The weight of the component trolley docking unit is approx. 40 kg.
If required, enlist the help of a second person to help you with the conversion.
Follow the steps in the order described.
6.5.5.3 Converting the component trolley docking unit to heights of 900, 930 or 950 mm
6

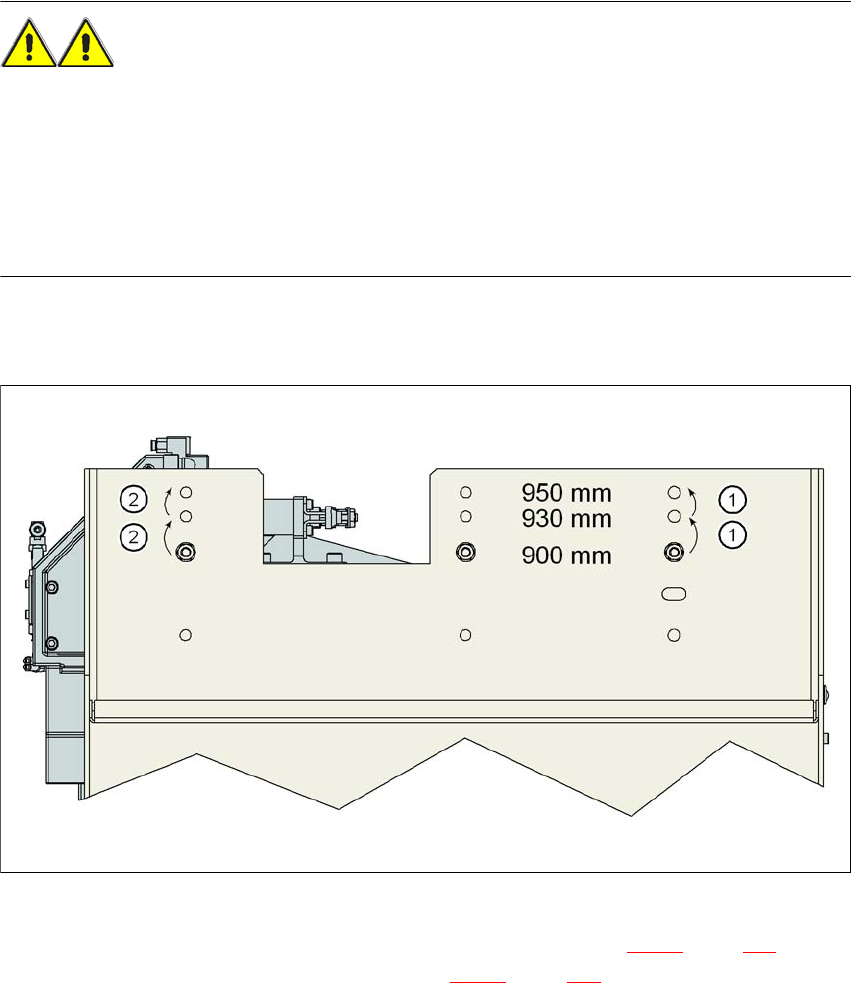

Fig. 6.5 - 6 Order of conversion steps
Loosen the two hexagon socket-head screws M8x18 (item 9 in fig. 6.5 - 5, page 327) and re-
move the left and right guidance (item 8 in fig. 6.5 - 5
, page 327).
User Manual SIPLACE SX4/DX4 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.5 Docking station for the component trolley of the SIPLACE X series
329
CAUTION 6
When raising and lowering the component trolley docking unit, make sure that no cables are
damaged.
Unscrew the two screwed connections (item 3 in fig. 6.5 - 5, page 327).
Loosen the two other screwed connections (item 2 in fig. 6.5 - 5, page 327).
Remove the two M8 hexagonal nuts and washers (item 4 in fig. 6.5 - 5, page 327).
Hold the component trolley docking unit by its side (item 10 in fig. 6.5 - 5, page 327) and re-
move the two hexagon socket-head screws M8x40 here.
Swivel the component trolley docking unit to the next highest position.
Fasten the side panel at this point. Tighten the nuts loosely to do this.
Hold the component trolley docking unit by the FCU (item 12 in fig. 6.5 - 5, page 327) and
remove the screwed connections at item 2 in fig. 6.5 - 5
, page 327.
Swivel the component trolley docking unit to the next highest position.
Fasten the side panel at this point.
Check that all screwed connections at items 2, 3 and 4 are tightened firmly.
Fasten the right and left guidances (item 8 in fig. 6.5 - 5, page 327) with the hexagon socket-
head screw M8x18 (item 9 in fig. 6.5 - 5
, page 327).
PLEASE NOTE 6
If you want to lower the component trolley docking unit to a different height, follow the above
instructions in reverse order.
