3.6 Gantry system
3.6.1 Position of the gantries
3
Fig. 3.6 - 1 Position of the gantries (example of SX4)
(1) Y axis, gantry 1 and gantry 4
(2) X axis, gantry 1
(3) X axis, gantry 2
(4) Y axis, gantry 3 and gantry 4 (concealed)
(5) X axis, gantry 3
(6) X axis, gantry 4
(T) Direction of PCB transport
(1)
(3)
(6)
(4)
(2)
(5)
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.6 Gantry system From software version SC.706.xx Version 06/2012 EN
130
3.6.2 Structure of the X axis
3
Fig. 3.6 - 2 Design of X axis - view of head mount
(1) Head mount with X-axis linear motor (primary part)
(2) Y linear motor with fixed bearing (primary part)
(3) Guidance system with permanent magnet (secondary part of the X linear motor)
(4) End position bumper (4x)
(5) Head board mount
(6) Gantry arm
(7) Length measurement system
The gantry arm is made of a carbon fiber composite. This technology allows assemblies to be
made with extremely low weight and high rigidity.
The X axis is driven by a linear motor. The secondary part of the drive consists of a permanent
magnet and is mounted on the gantry arm. The primary part is bolted to the head mount. The head
mount has been designed so that all placement head types can be accommodated - one of the
benefits of the great flexibility in the SIPLACE machines.
(4)
(3)
(1)
(5)
(2)
(6)
(4)
(7)
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.6 Gantry system
131
3.6.3 Structure of the Y axis
3

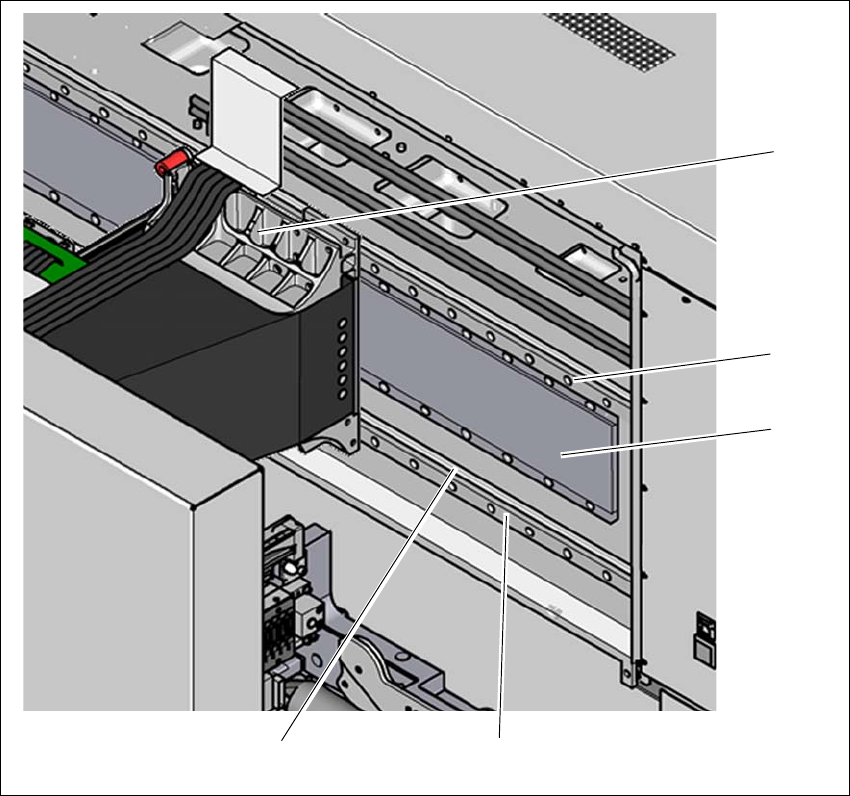

Fig. 3.6 - 3 Y axis design (example of SX4)
The Y axis essentially consists of the following main modules:
(1) Y linear motors (primary part) on the X axis with fixed and loose bearing mounted
(2) Permanent magnet (secondary part of the Y-axis linear motor)
(3) Linear distance measuring system
(4) Guide system
(1)
(4)
(2)
(3)
(4)
