3.5.2 SIPLACE MultiStar CPP (SX4 only)
3

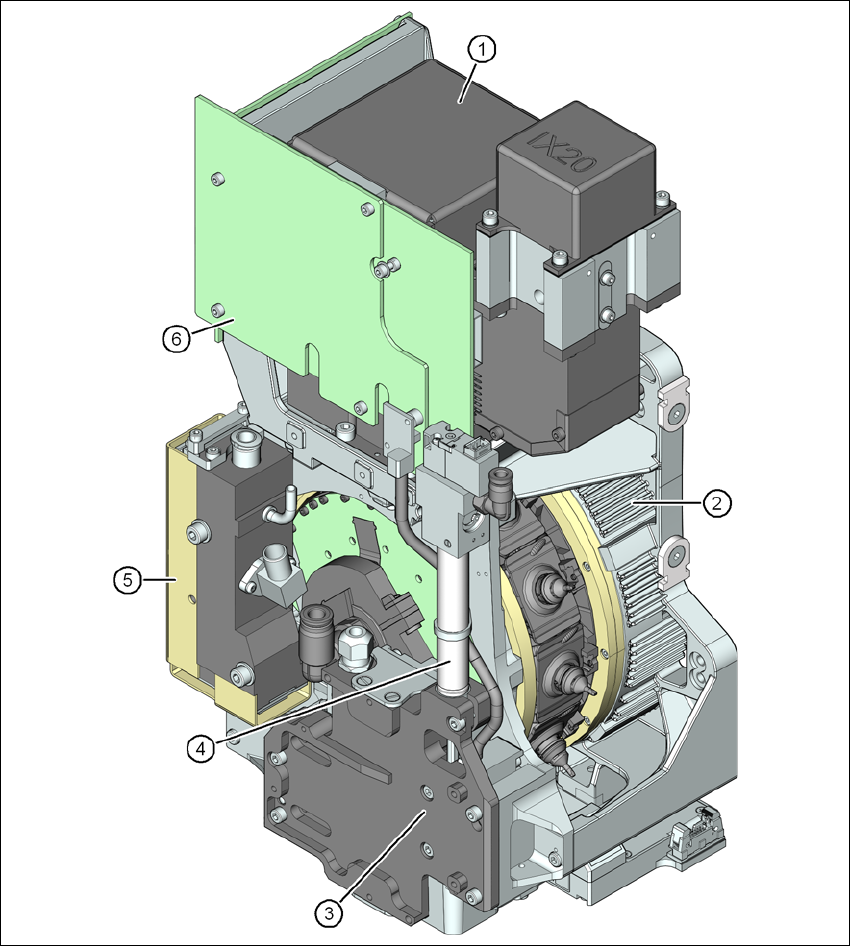

Fig. 3.5 - 3 SIPLACE MultiStar - front view, function groups part 1
(1) Star with 12 segments
(2) Segment with integrated DP drive
(3) Torque motor for star drive
(4) intermediate distributor board
(5) Control board for 12 DP drives
(6) Compressed air connection for the Venturi nozzles in the pickup/placement and holding cir-
cuit
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.5 Placement head
117
3
Fig. 3.5 - 4 SIPLACE MultiStar - front view, function groups part 2
(1) C&P component camera, type 30, 27 x 27, digital
(2) Torque motor for star drive
(3) Z drive (linear motor)
(4) Return cylinder
(5) Pressure control valve
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.5 Placement head From software version SC.706.xx Version 06/2012 EN
118
3
Fig. 3.5 - 5 SIPLACE MultiStar - back view, function groups part 3
(1) Component sensor
(2) Assembly position for component height of up to 11.5 mm
(3) Assembly position for component height of up to 6 mm
