3.9.6 Energy and data interface (EDIF) for X feeder modules
Item no. 00141247-xx Energy and data interface for X feeder modules
3
Fig. 3.9 - 20 Energy and data interface for X feeder modules
(1) Button for releasing the locking latch
(2) Operator panel
(3) Data cable
(4) Power supply cable
(5) Electronic housing
(6) Fold-out feet
(7) Omega profile for guiding the feeder modules
(8) Locking latch
(9) Locating hole for the front centering pin of the feeder module
(10) Base plate
(11) Tape reel holder
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
174
3.9.6.1 Description
The energy and data interface allows X feeder modules to be used outside the machine and setup
area. The interface consists of an aluminum frame with omega profile (item 7 in fig. 3.9 - 18
, page
171
) for holding and guiding the feeder modules. As with the X component trolley, the feeder mod-
ule is placed on the omega profile, with the slider guides, and is pushed forwards until the front
centering pin of the feeder module is fully inserted into the locating hole (item 9 in fig. 3.9 - 18
,
page 171
). The locking latch (item 8 in fig. 3.9 - 18, page 171) locks the feeder module in this po-
sition. To remove the feeder module, simply press the release button (item 1 in fig.
3.9 - 18
, page 171 ). The locking latch (item 8 in fig. 3.9 - 18, page 171) is pressed down and re-
leases the feeder module. Fold-out feet (item 6 in fig. 3.9 - 18
, page 171) stabilize the position of
the energy and data interface, particularly for wide feeder modules.
The electronic housing (item 5 in fig. 3.9 - 18
, page 171) holds the electronic control unit for the
energy and data interface. The operator panel (item 2 in fig. 3.9 - 18
, page 171) consists of start
and stop buttons and two status LEDs. Communication with a PC takes place via the data cable
(item 3 in fig. 3.9 - 18
, page 171 ). The power supply cable (item 4 in fig. 3.9 - 18, page 171) is
connected to the power supply unit provided.
3.9.6.2 Usage
The energy and data interface is used to check, maintain and repair X feeder modules. It can also
be used for setting up in advance for PCB production. In this case, the energy and data interface
is fixed to the base plate (item 10 in fig. 3.9 - 20
, page 173). The tape reel holder (item 11 in fig.
3.9 - 20
, page 173) is also mounted on the base plate. When a component tape is inserted, you
can check or reset the increment, pick-up position and conveyor speed. The detailed user manual
describes how to use the interface and the necessary servicing work.
3.9.6.3 Scope of delivery
– Single Slot EDIF
– Power supply, 100 - 120 / 200 - 240 VAC, +30VDC, 4.3 A
– Base plate with tape reel arm
– User manual
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.10 Component trolleys on the SIPLACE SX4
175
3.10 Component trolleys on the SIPLACE SX4
Item no. 00119722-xx SIPLACE X series component trolley
Four SIPLACE X series component trolleys can be docked onto the SIPLACE SX4 machines.
3

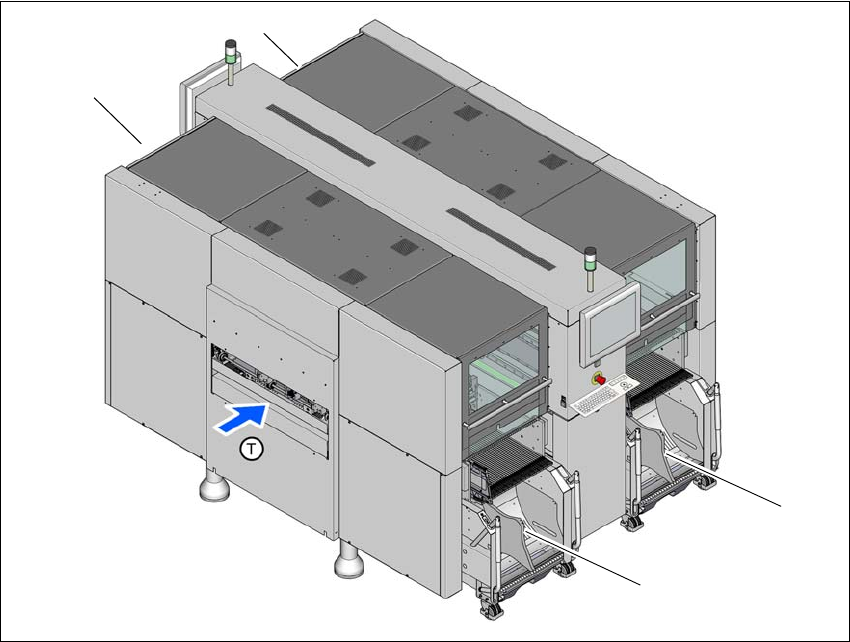

Fig. 3.10 - 1 Component trolley locations, SIPLACE SX4
(1) Location 1
(2) Location 2
(3) Location 3
(4) Location 4
(T) Direction of PCB transport
The component trolleys are stand-alone modules that can be set up with feeders at an external
setup area. This means that the production process only has to be interrupted briefly in order to
change the component trolley.
(1)
(4)
(2)
(3)
