User Manual SIPLACE SX4/DX4 3 Technical data and assemblies From software version SC.706.xx V ersion 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4 159 3.9.2.8 T ape feeder module 32 mm X 3 Fig. 3.9 - 10 T ape feede…
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
158
3.9.2.7 Tape feeder module 24 mm X
3

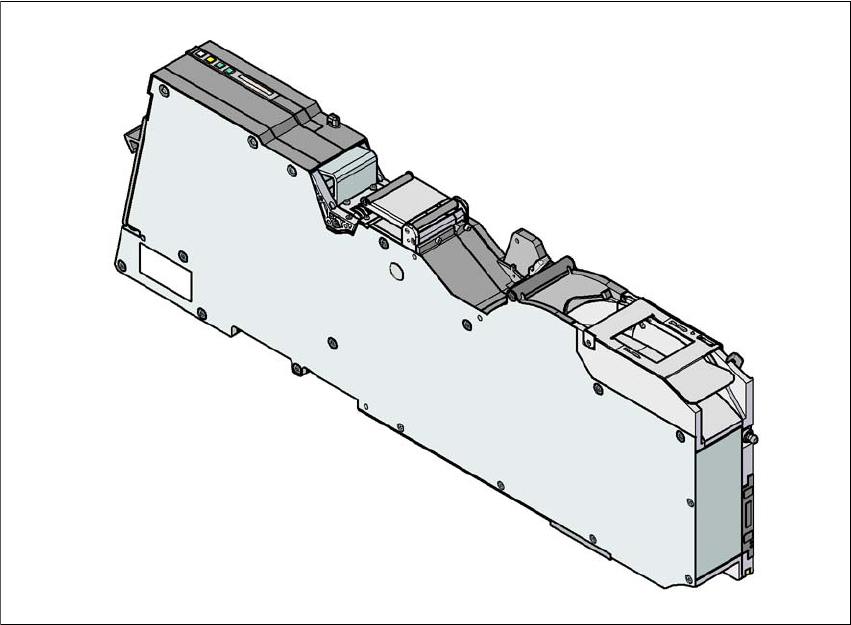

Fig. 3.9 - 9 Tape feeder module 24 mm X
3
3
3
Tape feeder module, 24 mm X Item no. 00141273-xx
24 mm X tape feeder module with splice sensor Item no. 00141293-xx
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 32 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 X feeder modules for SIPLACE SX4/DX4
159
3.9.2.8 Tape feeder module 32 mm X
3
Fig. 3.9 - 10 Tape feeder module 32 mm X
3
3
Tape feeder module, 32 mm X Item no. 00141274-xx
32 mm X tape feeder module with splice sensor Item no. 00141294-xx
Width 46.2 mm
Feeder module locations filled 4
Conveyor increment From 4 mm to 40 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.9 X feeder modules for SIPLACE SX4/DX4 From software version SC.706.xx Version 06/2012 EN
160
3.9.2.9 Tape feeder module 44 mm X
3
Fig. 3.9 - 11 44 mm X tape feeder module
3
3
3
3
44 mm X tape feeder module Item no. 00141275-xx
44 mm X tape feeder module with splice sensor Item no. 00141295-xx
Width 58.0
Feeder module locations filled 5
Conveyor increment From 4 mm to 52 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
