If the removal handle (item 1) is still protruding, then latch it in place.
5

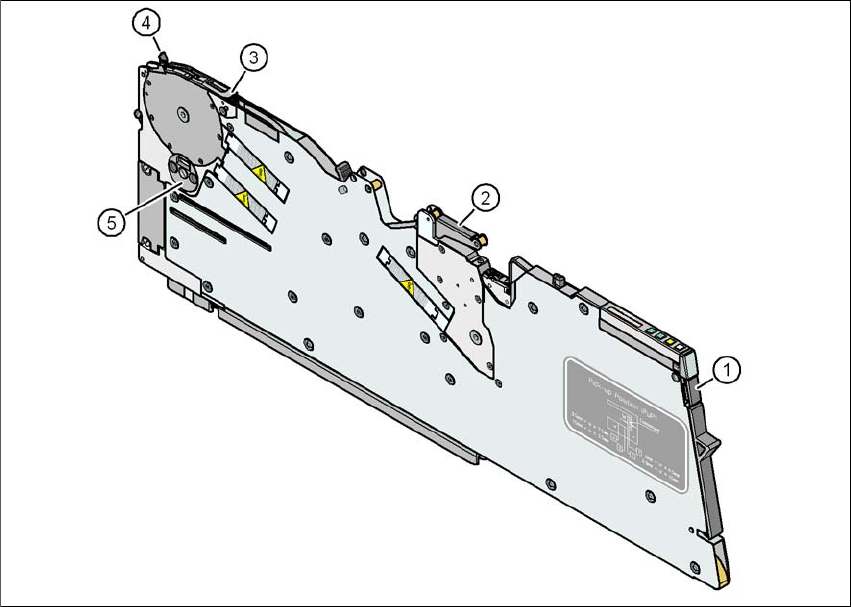

Fig. 5.10 - 2 Check the X feeder module before using it
(1) Removal handle
(2) Cover foil rocker
(3) Pickup window
(4) Lever for raising and latching the pick-up window
(5) Component disposal compartment
User Manual SIPLACE SX4/DX4 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.10 Setting up the feeder modules
273
5.10.3.2 Inserting the X feeder module into the changeover table
5

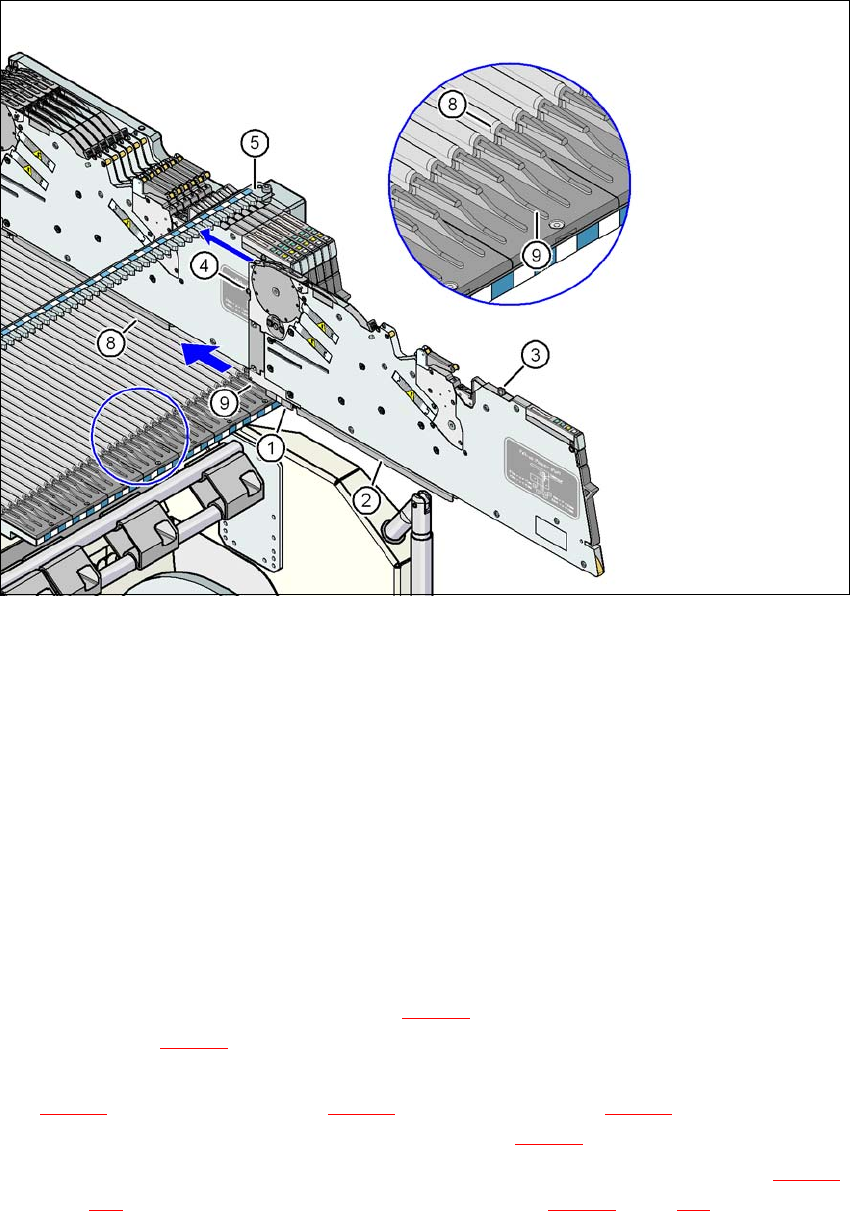

Fig. 5.10 - 3 Inserting the X feeder module into the changeover table
(1) Front slider guide for the X feeder module
(2) Back slider guide for the X feeder module
(3) "Back" centering pin on the X feeder module
(4) "Front" centering pin on the X feeder module
(5) Recesses in the centering bar for holding the "back" centering pin
(6) Centering holes on the changeover table for holding the "front" centering pin
(7) Locking latches
(8) Guide profile for the changeover table ( profile)
(9) Insertion aid for the feeder module
5
Place the front slider guide (item 1 in fig. 5.10 - 3) of the feeder module on the insertion aid
(item 9 in fig. 5.10 - 3
) of the changeover table.
Hold the feeder module vertically and push it forward, along the guide profile (item 8 in fig.
5.10 - 3
). The front (item 1 in fig. 5.10 - 3) and rear (item 2 in fig. 5.10 - 3) slider guides of the
feeder module slide on the guide profile (item 8 in fig. 5.10 - 3
).
Carefully push the feeder module further until the "front" centering pin (item 4 in fig. 5.10 - 3,
page 273
) is pushed into the centering hole (item 6 in fig. 5.10 - 3, page 273).
5 Working with the machine User Manual SIPLACE SX4/DX4
5.10 Setting up the feeder modules From software version SC.706.xx Version 06/2012 EN
274
Check the "back" centering pin (item 3 in fig. 5.10 - 3, page 273) of the feeder module as you
do so. This must slide easily into the recess (item 5) in the centering bar, otherwise the feeder
module is not seated vertically on the changeover table or it was not placed on the guide pro-
file (item 8 in fig. 5.10 - 3
, page 273) correctly.
When the feeder module is at the stop position, the locking latch (item 7 in fig. 5.10 - 3, page
273
) latches onto the locking roller of the feeder module (item 1 in fig. 3.9 - 1, page 150). If you
have forgotten to engage the removal handle (item 1 in fig. 5.10 - 2
, page 272) the status dis-
play
on the feeder module's operator panel will light up red after a few seconds. The LCD display
contains the error message "Handle --->>" (see fig. 5.11 - 1
, page 280).
Engage the removal handle (item 1 in fig. 5.10 - 2, page 272). The feeder module's status
display now lights up green and the feeder module is on standby. The track number and
conveyor increment can be read on the LCD display once more.
5.10.4 Placing the component tape on the X feeder module (8 -88 mm)
5.10.4.1 Checking the X tape feeder module
When you place the component tape in the feeder module, first check whether there are
any components in the vicinity of the pickup window (item 2 in fig. 5.10 - 5
, page 276).
Remove any components that you find since they could cause a fault.
5.10.4.2 Preparing the component tape for insertion
Check that there is a straight cut edge at the start of the component tape.
If the transport holes are torn or bent, cut off this part of the tape.
Also make sure that there are no streaks of adhesive on the cover foil.
Pull around 30 cm cover foil away from the component tape if this does not expose any
components.
PLEASE NOTE 5
Use an SMD tape threader if there is insufficient cover foil available to make sure that no com-
ponents
are lost:
for the 8 mm - tape: Item no. 00355265-xx
for the 12 mm - tape: Item no. 00356342-xx
