Align the machine in the X and Y direction with the help of the machine spirit level.
Place the machine spirit level in both the X and Y direction, on the sides of the board conveyor
in placement area 1 of the SIPLACE SX4 (see fig. 4.3 - 11
) or in the center of the placement
area for SIPLACE DX4. The board conveyor width has been preset:
Single conveyor 210 mm
Dual conveyor, lane 1 100 mm
Dual conveyor, lane 2 210 mm 4
PLEASE NOTE: 4
When using a dual conveyor, always place the spirit level on the outer sides of the machine
for measuring the X direction.
Measure the distance between the upper edge of the PCB conveyor belt and the underside.
This distance should be 900 mm, 930 mm or 950 mm.
4

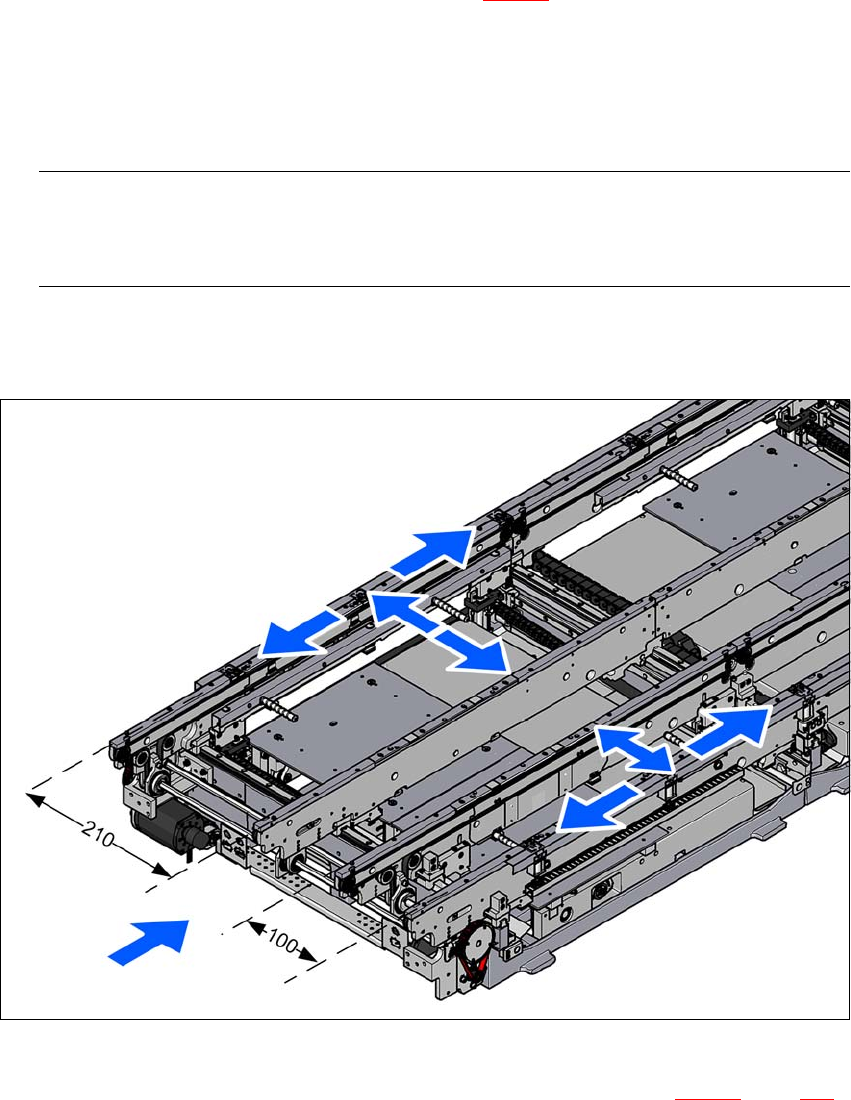

Fig. 4.3 - 11 Adjusting the machine in the X and Y directions (example of SX4)
Use the fork wrench to adjust the setting screw M24x2x120 (item 1 in fig. 4.3 - 12, page 224),
so that the fluid in the machine spirit level does not deviate from its zero point at the required
conveyor height.
4 Setting up and commissioning User Manual SIPLACE SX4/DX4
4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN
224
4

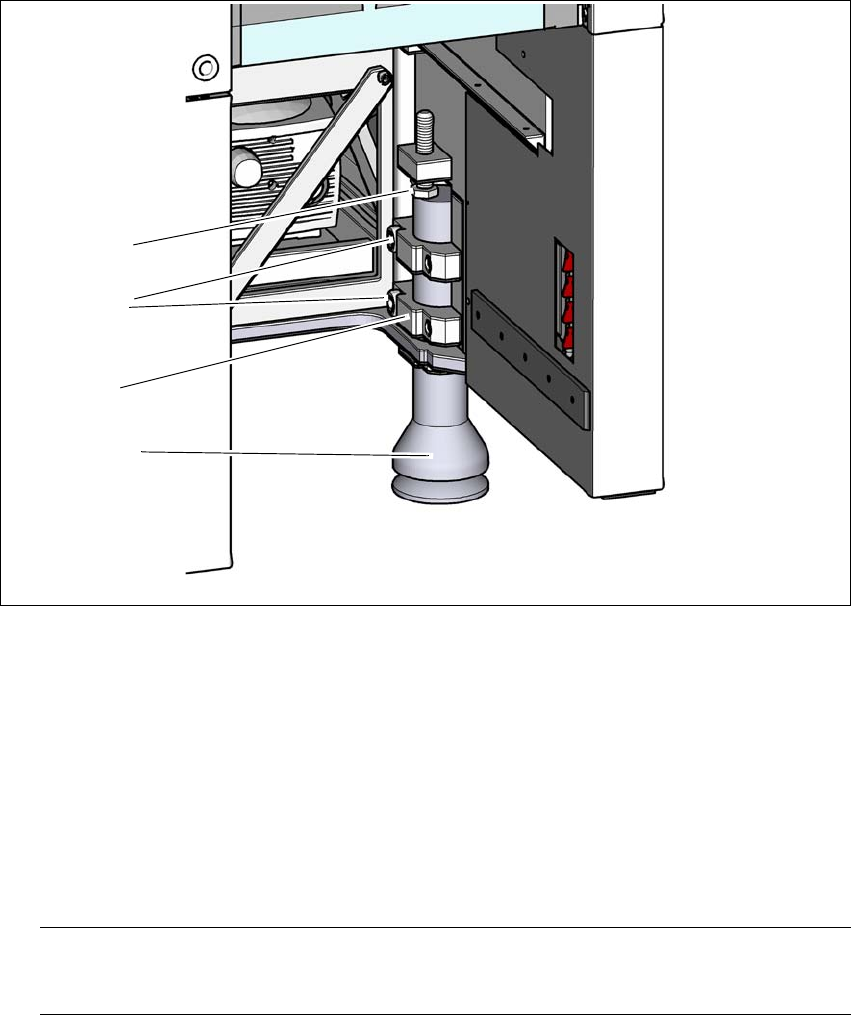

Fig. 4.3 - 12 Presetting the height of the outer machine feet
(1) Setting screw M24x120 for height adjustment (M24x100 at 900 mm machine height)
(2) Outer machine foot
(3) Clamping piece
(4) Hexagon socket-head screw M24x90
Check the required board conveyor height.
Once the machine has been aligned, use the torque wrench to tighten the hexagon socket-
head screws M24x90 (item 4) to clamp the clamping pieces at all outer machine feet (item 3).
PLEASE NOTE 4
The tightening torque is 130 Nm. A lower torque could cause the machine to vibrate.
Use the hook wrench to unscrew the middle machine feet roughly 135 - 145, until these are
positioned firmly on the ground.
Make sure that the middle machine feet are not screwed out too far, unbalancing the machine.
(4)
(2)
(1)
(3)
User Manual SIPLACE SX4/DX4 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
225
4
Fig. 4.3 - 13 Aligning and locking the middle machine feet
Use the spirit level to ensure that the machine is precisely aligned.
Use the fork wrench SW65 to tighten the lock nut M24 (item 3).

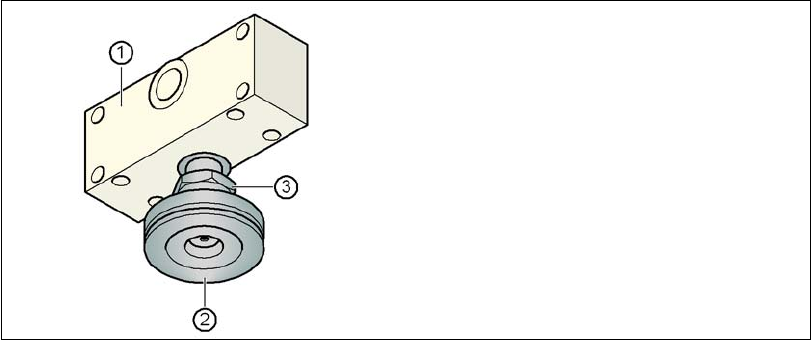

(1) Spacer
(2) Middle machine foot
(3) Lock nut M24
