4 Setting up and commissioning User Manual SIPLACE SX4/DX4 4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN 220 4.3.7.1 Machine foot clearances for the PCB dual conveyor 4 Fig. 4.3 - 9 Machin…
User Manual SIPLACE SX4/DX4 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
219
4.3.7 Machine foot clearances and the stationary PCB conveyor edges
Machine foot clearances for the PCB single conveyor
4
Fig. 4.3 - 8 Machine foot clearances for the PCB single conveyor in millimeters
Fixed conveyor side at
maximum right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at
maximum left position
a
.
4 Setting up and commissioning User Manual SIPLACE SX4/DX4
4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN
220

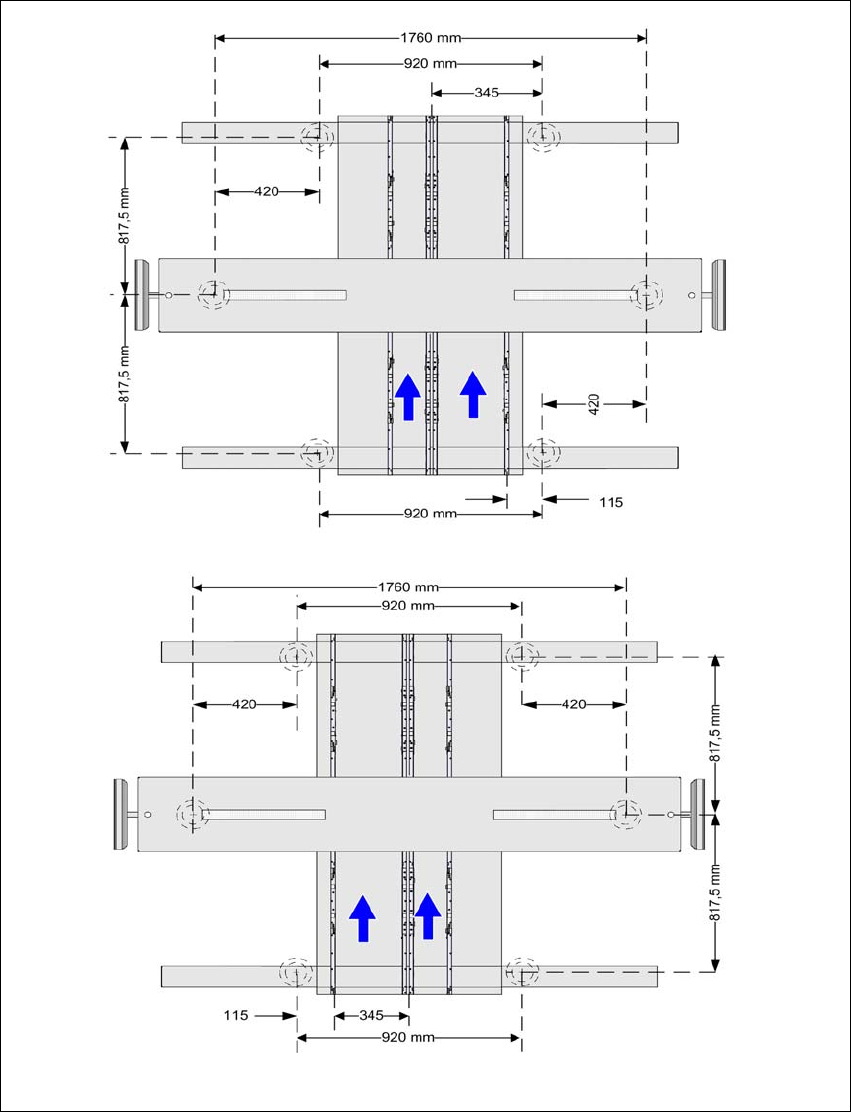

4.3.7.1 Machine foot clearances for the PCB dual conveyor
4
Fig. 4.3 - 9 Machine foot clearances for the PCB dual conveyor in millimeters
Fixed conveyor side at
maximum right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at
maximum left position
a
.
User Manual SIPLACE SX4/DX4 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
221
4.3.7.2 Machine foot clearances for the PCB quad lane conveyor (SX4 only)
4
Fig. 4.3 - 10 Machine foot clearances for the quad lane conveyor in millimeters
Fixed outer conveyor
edges
