5 Working with the machine User Manual SIPLACE SX4/DX4
5.10 Setting up the feeder modules From software version SC.706.xx Version 06/2012 EN
276
Guide the start of the tape beneath the pickup window (item 2 in fig. 5.10 - 5) and further until
the component tape is touching the sprocket wheel.
5
Fig. 5.10 - 5 Pickup window on the tape feeder module
(1) Tape support, removable (see section 5.10.4.4, page 278)
(2) Pickup window
(3) Removal edge for the cover foil
(4) Component pick-up area
(5) Lever for raising and latching the pick-up window
On the operator panel, press the FORWARD button (item 1 in fig. 5.10 - 6) until the bend of
the cover foil is in the component pickup area (item 4 in fig. 5.10 - 5
).
5
Fig. 5.10 - 6 Operator panel of the 8 mm feeder module
(1) FORWARD button for moving the component tape forward
(2) BACK button for moving the component tape back
(3) FOIL button for tensioning the cover foil
User Manual SIPLACE SX4/DX4 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.10 Setting up the feeder modules
277
Push the lever (item 5 in fig. 5.10 - 5, page 276) forward in order to raise the pickup window
(item 2 in fig. 5.10 - 5
, page 276) into the first latching position.
Pull the cover foil at the side of the pick-up window forward and out underneath the pick-up
window.
Fold the cover foil back until it lies against the pull-off edge (item 3 in fig. 5.10 - 5, page 276).
PLEASE NOTE 5
Do not lower the pick-up window until the cover foil is lying against the pull-off edge.
Push the lever (item 5 in fig. 5.10 - 5, page 276) back to lower the pickup window.
Guide the cover foil over the cover foil rocker (item 2 in fig. 5.10 - 7) until it reaches the foil
packing wheels (item 1 in fig. 5.10 - 7
).
5
Fig. 5.10 - 7 Guiding the cover foil to the foil packing wheels
(1) Cover foil packing wheels
(2) Cover foil
5
On the operator panel, press the FOIL button (item 3 in fig. 5.10 - 6, page 276) until the cover
foil is tensioned. The cover foil rocker points down and stops the drive motor.
Cut the component tape flush with the front end of the feeder module.
5 Working with the machine User Manual SIPLACE SX4/DX4
5.10 Setting up the feeder modules From software version SC.706.xx Version 06/2012 EN
278
5.10.4.4 Tape support for 8 mm X tape feeder module
5

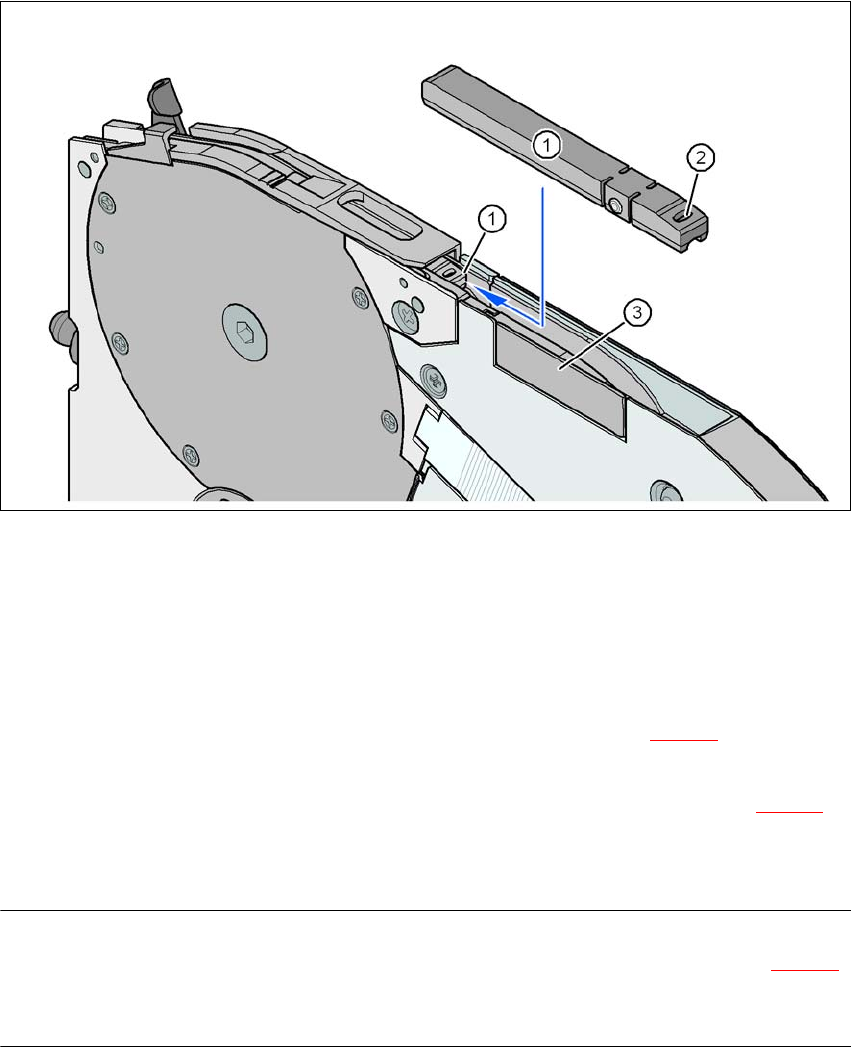

Fig. 5.10 - 8 8 mm X feeder module - tape support and splice sensor
(1) Tape support, removable
(2) Oval opening in the tape support
(3) Splice sensor installation location
The 8 mm X feeder module is equipped with a tape support (item 1 in fig. 5.10 - 8
). It can easily
be removed if necessary.
Insert the tang of a watchmaker's screwdriver into the oval opening (item 2 in fig. 5.10 - 8) in
the tape support and pull the tape support out against the direction of travel of the tape.
When you insert the tape support, make sure that it engages in its desired position.
PLEASE NOTE 5
For all components size 0402 and smaller, always insert the tape support (item 1 in fig. 5.10 - 8
)
into the 8 mm X feeder module. This will give you a constant Z pick up height and will minimize
the time needed to correct the pick up heights.
