2 Operational safety User Manual SIPLACE SX4/DX4 2.10 Energy state of the machine after switching off at the ma in power switch From softw are version SC.706.xx Version 06/2012 EN 84 2.10 Energy state of the machine af t…
User Manual SIPLACE SX4/DX4 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.9 Disabling the compressed air supply and discharging the pressure
83
2
Fig. 2.9 - 1 Compressed air unit on the machine
Legend for fig. 2.9 - 1
(1) Manometer for inlet pressure
Target pressure: 0.5 - 1.0 MPa, 5 - 10 bar (display range: 0 - 1.0 MPa, 0 - 10 bar)
(2) Manometer for supply pressure of gantries 1 to 4
Target pressure: 0.46 ± 0.01 MPa, 4.6 ± 0.1 bar (display range 0 - 0.6 MPa, 0 - 6 bar)
(3) Manometer for the machine component supply pressure
Target pressure: 0.5 ± 0.025 MPa, 5 ± 0.25 bar (display range 0 - 0.6 MPa, 0 - 6 bar)
(4) Stop valve in the "OPEN" position
(5) Compressed air filter
(6) Compressed air connection
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 2
(6)
(1)
(2)
(3)
(5)
(4)
2 Operational safety User Manual SIPLACE SX4/DX4
2.10 Energy state of the machine after switching off at the main power switch From software version SC.706.xx Version 06/2012 EN
84
2.10 Energy state of the machine after switching off at the
main power switch
2
Fig. 2.10 - 1 Position of the power supply on the machine (example of SX4)
2
WARNING
The machine is supplied with 3 x 200 V~, 3 x 208 V~, 3 x 220 V~, 3 x 230 V~, 3 x 380 V~,
3x400V~ or 3x415V~ ± 5%, 50/60Hz mains voltage. This means that some parts of the sys-
tem carry potentially lethal voltages - even when switched off at the main power switch. Incorrect
handling of the machine can therefore result in death or severe injury or considerable damage to
equipment. 2
Always follow the applicable accident prevention and DIN regulations (particularly EN 60204,
part 1 or IEC 60204, part 1) and the applicable regulations in your own country.
The guard over the power supply unit must ONLY be opened by appropriately qualified and
trained personnel.
(1) Main power switch
(1)
User Manual SIPLACE SX4/DX4 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.10 Energy state of the machine after switching off at the main power switch
85
2.10.1 Machine switched off at the main switch, but still connected
WARNING
The following components still carry potentially lethal voltages even if the main power switch is
switched off:
– Mains connection terminals in the transformer unit L1, L2 and L3 of main switch.
– Service socket X102 with F1 automatic circuit breaker switched on.
– The color of all individual wires, which still carry potentially lethal voltages even if the main
power switch is switched off, is brown.
2

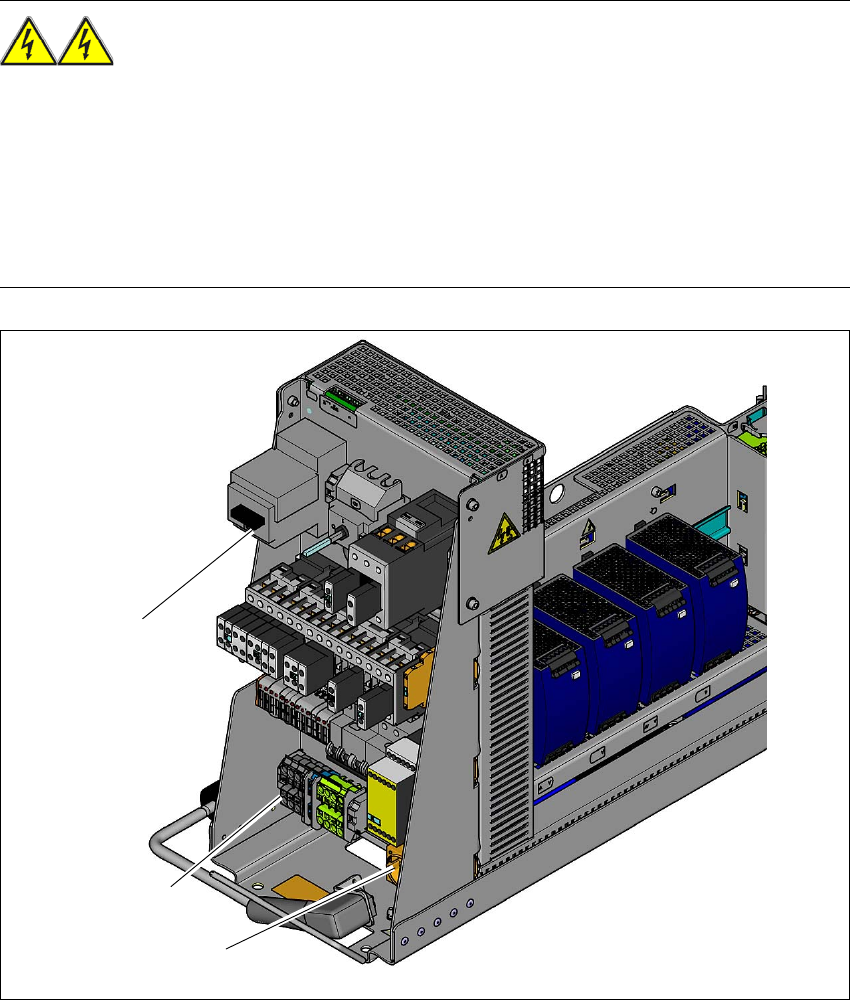

Fig. 2.10 - 2 Power supply unit, front view
(1) Service socket (X102)
(2) Mains connection terminals (X100)
(3) Main switch (Q1)
(3)
(1)
(2)
