3.7.2 Design of the PCB single conveyor
The fixed conveyor side can be selected either on the right or left in single conveyors. Changing
the fixed conveyor side from left to right or vice versa is easily performed in the station software.
3

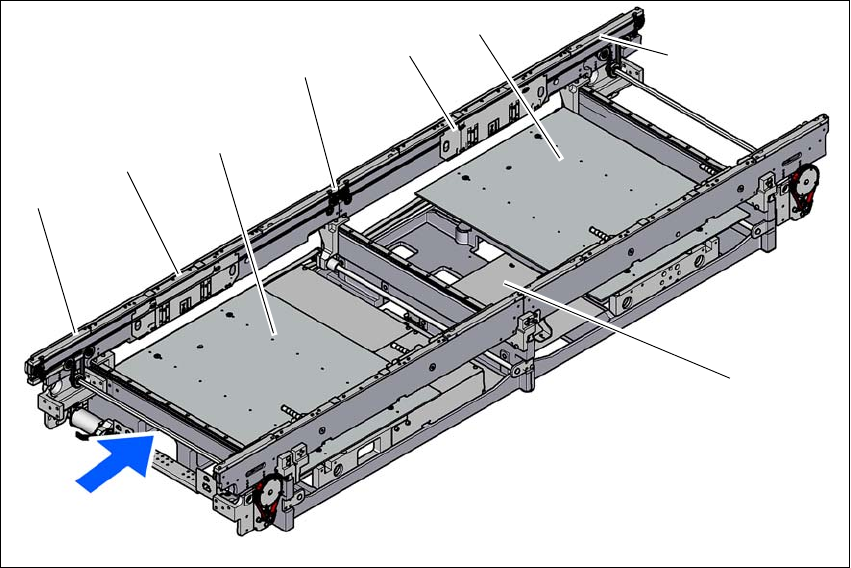

Fig. 3.7 - 1 Design of the PCB single conveyor
(1) Input conveyor
(2) Processing conveyor 1
(3) Lifting table 1
(4) Intermediate conveyor
(5) Processing conveyor 2
(6) Lifting table 2
(7) Output conveyor
(8) Conveyor control (under the cover)
(4)
(1)
(2)
(3)
(5)
(6)
(8)
(7)
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.7 PCB conveyor system From software version SC.706.xx Version 06/2012 EN
134
3.7.3 Structure of the flexible PCB dual conveyor
The flexible dual conveyor has two conveyor tracks that are electrically and mechanically inde-
pendent of one another. The fixed conveyor side is on the right as a standard. The fixed conveyor
side can be either right or left in dual conveyors. Changing the fixed conveyor side from left to right
or vice versa is easily performed in the station software. The PCB dual conveyor can be operated
as a single or dual conveyor, according to your needs.
3
Fig. 3.7 - 2 Structure of the PCB dual conveyor
(1) Input conveyor
(2) Processing conveyor 1
(3) Lifting table 1
(4) Intermediate conveyor
(5) Processing conveyor 2
(6) Lifting table 2
(7) Output conveyor
T1 Conveyor track 1
T2 Conveyor track 2
(7)
(1)
(2)
(3)
(T1)
(T2)
(4)
(5)
(6)
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.7 PCB conveyor system
135
3.7.3.1 Flexible PCB dual conveyor - conveyor lanes and types
The right-hand conveyor lane (viewed in the direction of transport) is known as "conveyor 1" while
the left conveyor lane is termed "conveyor 2" (see fig. 3.7 - 4
, page 136 ).
3.7.3.2 PCB dual conveyor in single conveyor mode
The dual conveyor can be configured online to create a single conveyor. One conveyor lane is
moved together completely and is disabled (see fig. 3.7 - 3
). This gives a conveyor track width of
up to 560 mm.
3
Fig. 3.7 - 3 Flexible dual conveyor in Single conveyor mode
Dual conveyor with widened conveyor track 2
(stationary conveyor side wall on left)
Conveyor track 2
deactivated
Conveyor track 1 Conveyor track 2 Conveyor track 1
deactivated
PCB transport direction PCB transport direction
Stationary conveyor side wall
Dual conveyor with widened conveyor track 1
(stationary conveyor side wall on right)
Movable conveyor side wall
