User Manual SIPLACE SX4/DX4 4 Setting up and commissioning From software version SC.706.xx Version 06/2012 EN 4.1 Transportation and Deliver y Configuration 191 4 Fig. 4.1 - 2 Delivery configuration of SIPLACE SX4 (1) Si…
4 Setting up and commissioning User Manual SIPLACE SX4/DX4
4.1 Transportation and Delivery Configuration From software version SC.706.xx Version 06/2012 EN
190
4.1.1.2 Weight of the machine prepared for dispatch
The following table contains the weights of the machines prepared for dispatch, including packag-
ing.
4
4.1.2 Checking a delivery
Store the machine in the packaging until room temperature has been reached. There is oth-
erwise a risk of condensation occurring.
Check the delivery for damage.
Check the shock sensors on the transportation crate.
Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
Document the results in the installation report /acceptance protocol.
4.1.3 Configuration when delivered
4.1.3.1 SIPLACE SX4
The machine is configured as follows when delivered:
– The lanes of the dual conveyor are set to a width of 210 mm. This width setting will be impor-
tant when fine-tuning the machine.
– Both keyboards are disconnected and dismantled.
– Both monitors are dismantled.
– Both indicator lamps are dismantled.
– All the gantry axes are fixed with shipping braces.
Machine Dispatch within Europe Dispatch overseas
SX4 4004 kg 4504 kg
DX4 4004 kg 4504 kg
Component trolley 470 kg 550 kg
User Manual SIPLACE SX4/DX4 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.1 Transportation and Delivery Configuration
191
4

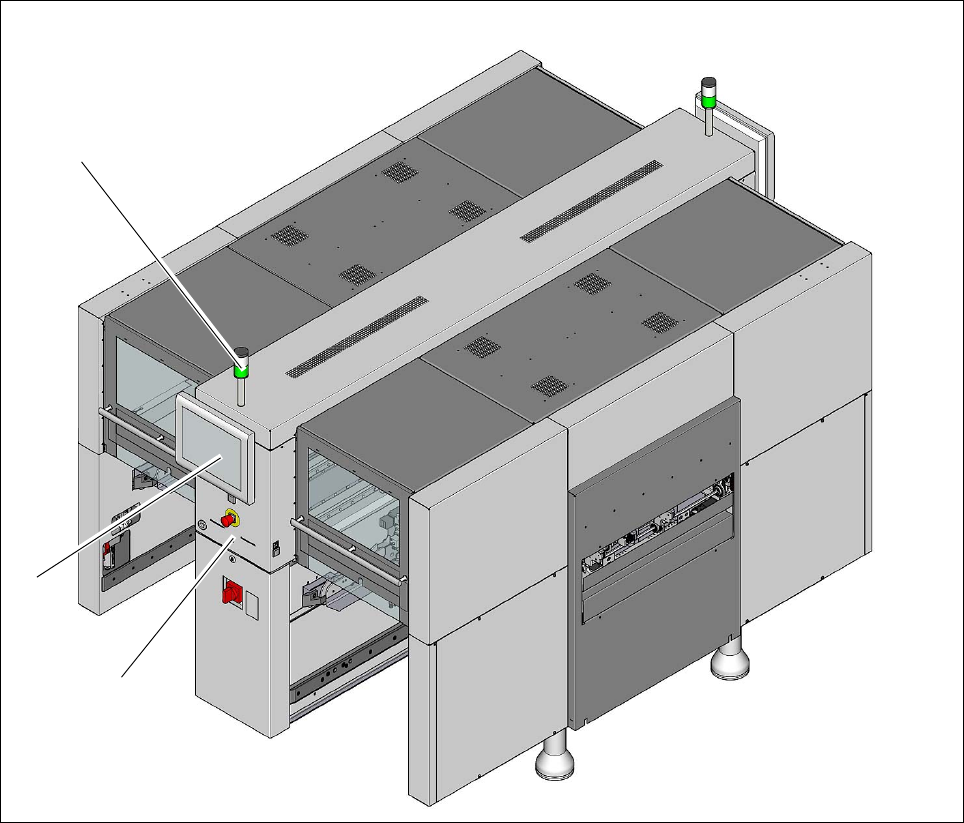

Fig. 4.1 - 2 Delivery configuration of SIPLACE SX4
(1) Signal lamp (dismantled)
(2) Monitor (dismantled)
(3) Keyboard (dismantled)
(1)
(2)
(3)
4 Setting up and commissioning User Manual SIPLACE SX4/DX4
4.1 Transportation and Delivery Configuration From software version SC.706.xx Version 06/2012 EN
192
4.1.3.2 SIPLACE DX4
The machine is configured as follows when delivered:
– The track on the single conveyor is set to a width of 210 mm. This width setting will be impor-
tant when fine-tuning the machine.
– Both keyboards are disconnected and dismantled.
– Both monitors are dismantled.
– Both indicator lamps are dismantled.
– The tape container and waste tape container are packed separately.
– All the gantry axes are fixed with shipping braces.
