User Manual SIPLACE SX4/DX4 3 Technical data and assemblies From software version SC.706.xx Version 06/2012 EN 3.5 Placement head 111 3.5 Placement head 3.5.1 SIPLACE SpeedS tar C&P20 for very high speed placement 3 …
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.4 Overview of the modules From software version SC.706.xx Version 06/2012 EN
110
3.4.2 Overview of SIPLACE DX4 assemblies
3
3

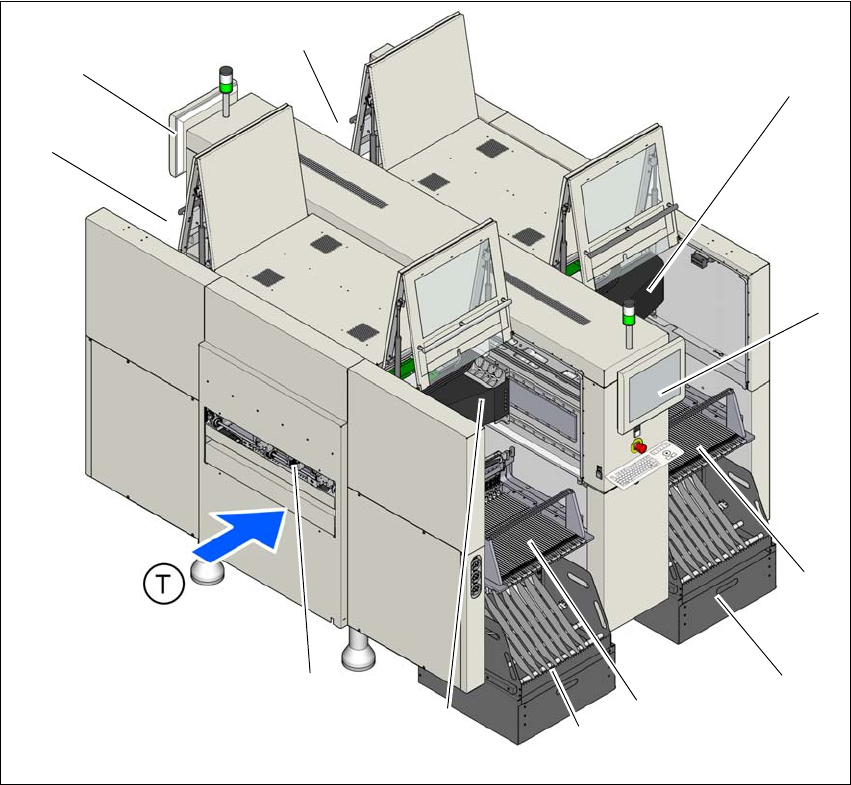

Fig. 3.4 - 2 DX4 machine - overview of assemblies
(1) Location 1 with DX table, tape cutter, empty tape duct
(2) Location 2 with DX table, tape cutter, empty tape duct
(3) Location 3 with DX table, tape cutter, empty tape duct
(4) Location 4 with DX table, tape cutter, empty tape duct
(5) Gantry 1 at location 1 with placement head
(6) Gantry 2 at location 1 with placement head
(7) Monitor with keyboard (2x)
(8) Board conveyor
(9) Tape container with waste tape bin at location 1 to 4
(T) Direction of PCB transport
(1)
(2)
(3)
(4)
(7)
(8)
(6)
(7)
(5)
(9)
(9)
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.5 Placement head
111
3.5 Placement head
3.5.1 SIPLACE SpeedStar C&P20 for very high speed placement
3
Fig. 3.5 - 1 SIPLACE SpeedStar - function group part 1
(1) DP drive, 20 drives
(2) "Vacuum sensor holding circuit" board
(3) Compressed air connection for 20 Venturi nozzles in the pick-up/placement and holding cir-
cuit
(4) Line for the exhaust air from the pressure control valve (7)
(5) Return cylinder
(6) Z motor (linear motor)
(7) Pressure control valve
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.5 Placement head From software version SC.706.xx Version 06/2012 EN
112
3
Fig. 3.5 - 2 SIPLACE SpeedStar - function group part 2
(1) C&P component camera, type 23, 6 x 6, digital
(2) Intermediate distributor board
(3) Star motor
(4) Handle
(5) Component sensor
(6) Star with 20 nozzles
