6 Station extensions User Manual SIPLACE SX4/DX4 6.1 Nozzle changer From software version SC.706.xx Version 06/2012 EN 304 Nozzle magazine for 28xx nozzles 6 6 Fig. 6.1 - 8 Nozzle magazine for 28xx no zzles (1) 5 garages…
User Manual SIPLACE SX4/DX4 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.1 Nozzle changer
303
At the nozzle station, components can be rejected with an air blast by the nozzles. Nozzles can
be stripped off there and disposed of in the reject bin.
Tab. 6.1 - 1 Configurations for the CPP nozzle changer
Nozzle magazine for 20xx nozzles 6
6

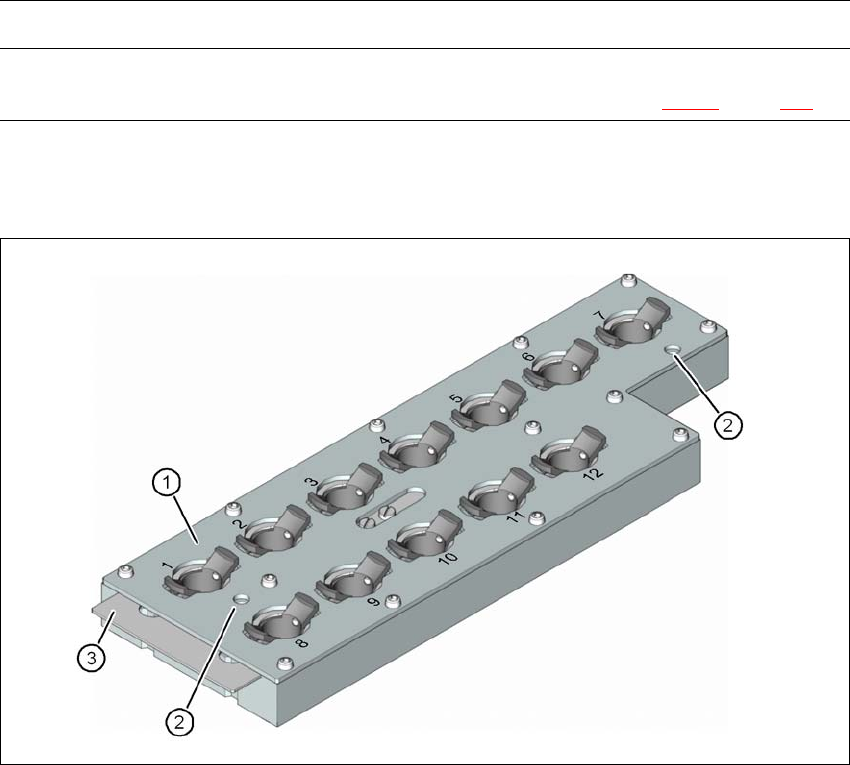

Fig. 6.1 - 7 Nozzle magazine for 20xx nozzles - locking plate open
(1) 12 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(3) Locking plate
Placement head Nozzle magazine Comment
CPP head
5 magazines for 20xx nozzles Standard configuration
1 magazine for 28xx nozzles (See fig. 6.1 - 6
, page 302 )
6 Station extensions User Manual SIPLACE SX4/DX4
6.1 Nozzle changer From software version SC.706.xx Version 06/2012 EN
304
Nozzle magazine for 28xx nozzles 6
6

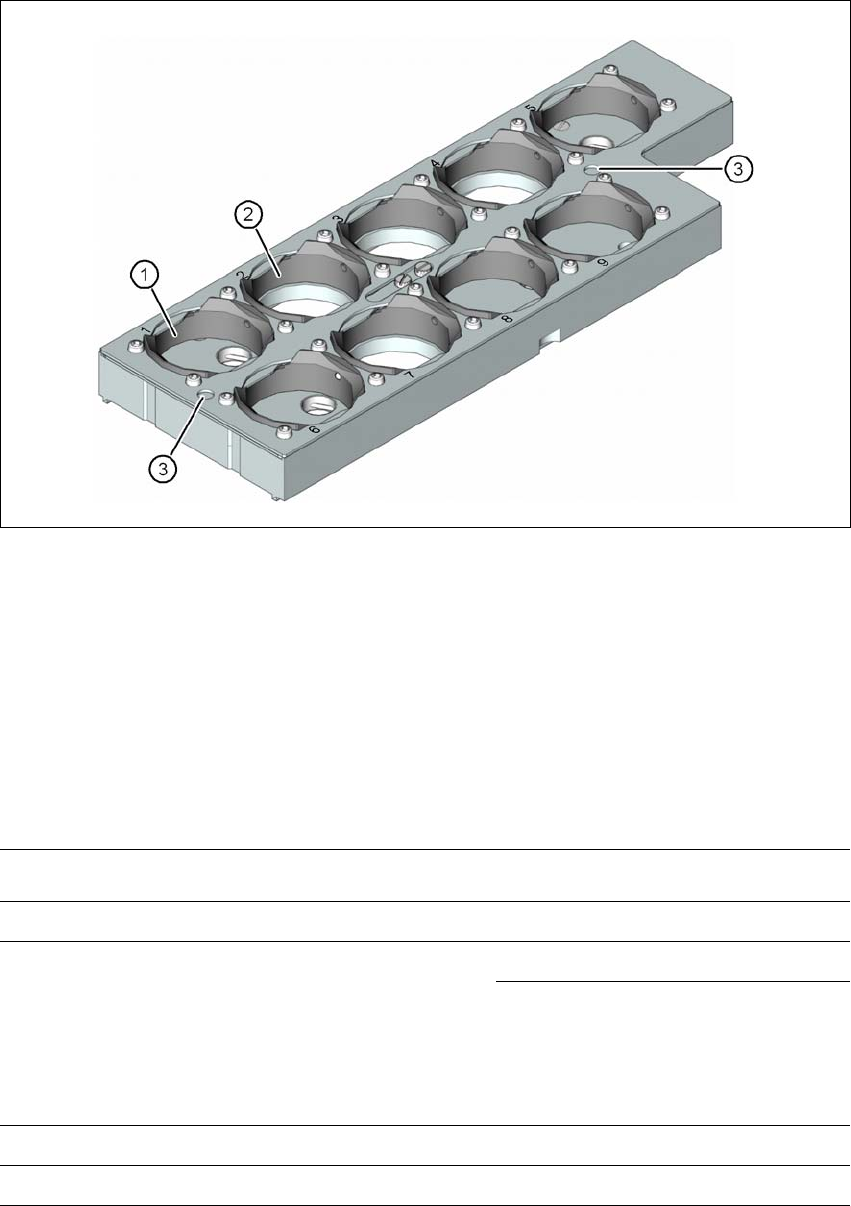

Fig. 6.1 - 8 Nozzle magazine for 28xx nozzles
(1) 5 garages for 28xx nozzles with a maximum nozzle length of 12.5 mm
(garage numbers 1, 5, 6, 8 and 9)
(2) 4 garages for 28xx nozzles with a maximum nozzle length of 16.5 mm
(garage numbers 2, 3, , 4 and 7)
(3) Fiducials (only visible when locking plate open)
6.1.2.2 Technical data
6
6
Nozzle changer for the SIPLACE MultiStar
Dimensions (length x width x height) 449 mm x 62.7 mm x 77.7 mm
Number of nozzle holders
Type 20xx 60
Type 28xx 9
Nozzle types 20xx (CPP head)
28xx (CPP head)
Nozzle changeover time approx. 2s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
User Manual SIPLACE SX4/DX4 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.1 Nozzle changer
305
6.1.2.3 Position of nozzle changer for the SIPLACE MultiStar
Locations 1, 2, 3 and 4 can each accommodate one nozzle changer for the CPP head (item 1 in
fig. 6.1 - 9
, page 305).
This gives the following nozzle changer configurations for the placement machine:
6
6

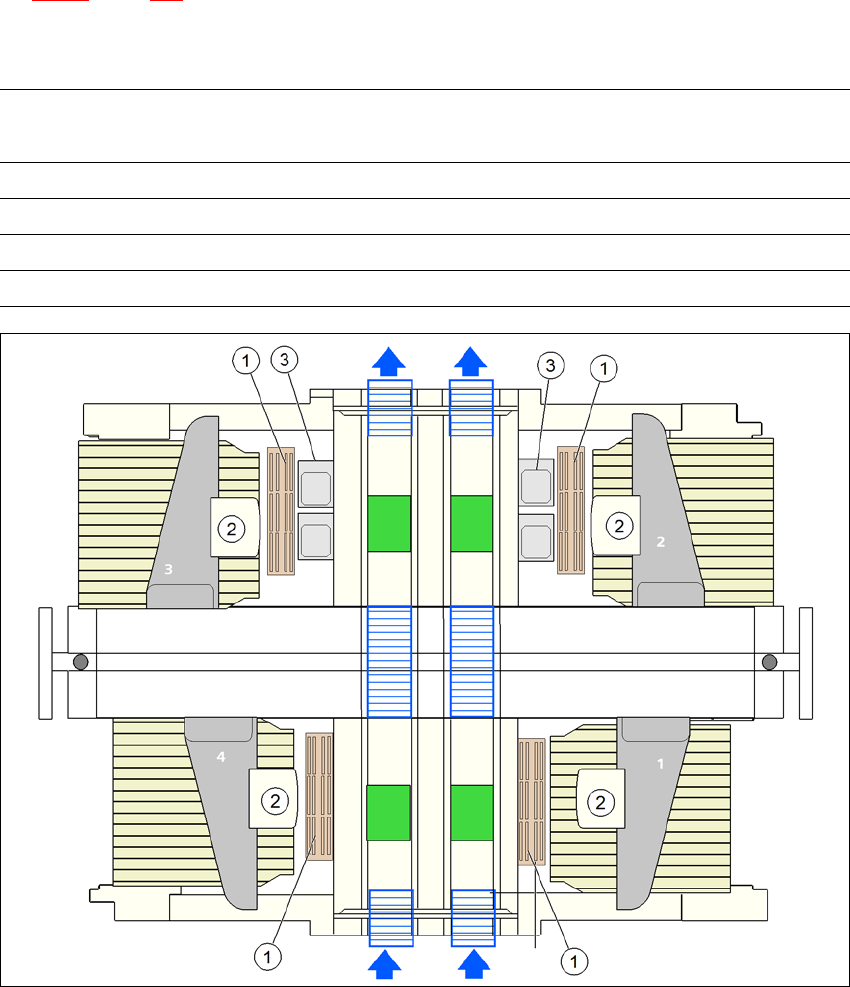

Fig. 6.1 - 9 Position of nozzle changer for the SIPLACE MultiStar - configuration example
6
Location Number of nozzle
magazines
Number of spare nozzle
magazines
Number of nozzle
holders
1 5 x 20xx + 1 x 28xx - 60 x 20xx, 9 x 28xx
2 4 x 20xx 2 48 x 20xx
3 5 x 20xx + 1 x 28xx - 60 x 20xx, 9 x 28xx
4 4 x 20xx 2 48 x 20xx
(1) Nozzle changer
(2) SIPLACE MultiStar
(3) Stationary cameras
