2 Operational safety User Manual SIPLACE SX4/DX4 2.2 Warning labels From software version SC.706.xx Version 06/2012 EN 46 2.2.4.2 W arning label W205 on the t ape cutter 2 Fig. 2.2 - 5 Warning label W205 on the top of th…
User Manual SIPLACE SX4/DX4 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
45
2.2.4.1 Warning label 202
2
W202, in fig. 2.2 - 4, page 44, item no. 03009341-01
(quantity per machine: 4)
WARNING 2
Powerful permanent magnetic fields inside the machine
DANGER 2
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
2
WARNING
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
2 Operational safety User Manual SIPLACE SX4/DX4
2.2 Warning labels From software version SC.706.xx Version 06/2012 EN
46
2.2.4.2 Warning label W205 on the tape cutter
2

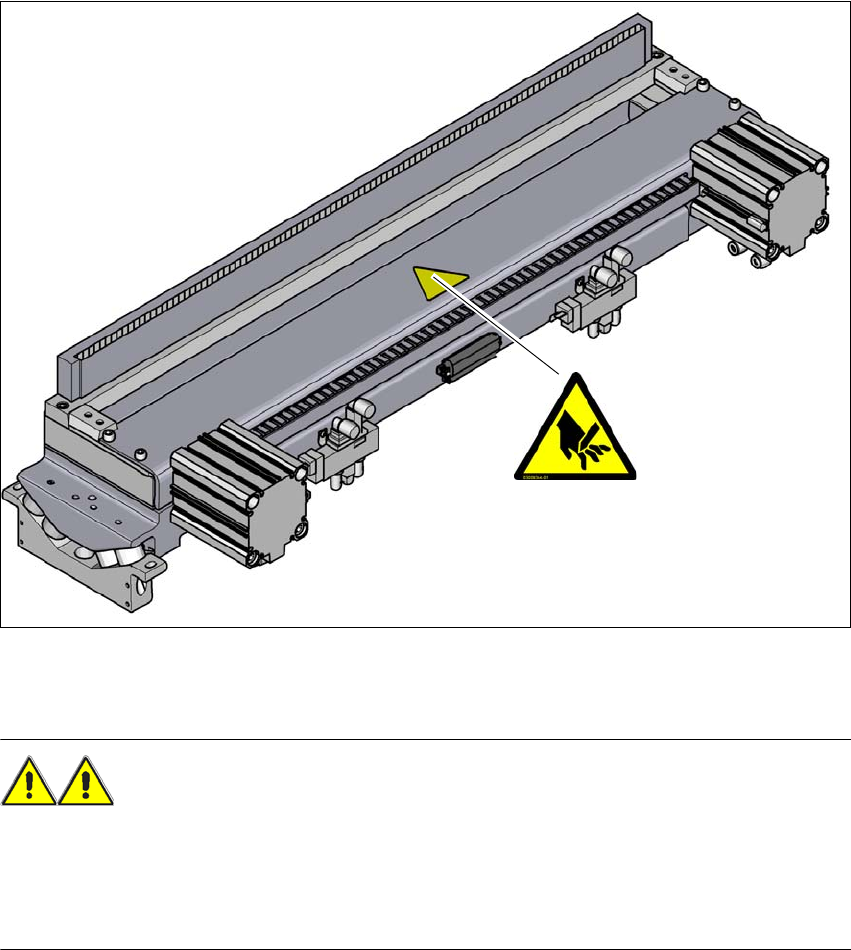

Fig. 2.2 - 5 Warning label W205 on the top of the tape cutter
W205, item no. 03009344-01
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains supply
and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
W205
User Manual SIPLACE SX4/DX4 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
47
2.2.4.3 Warning label W205 on the used tape chute
2

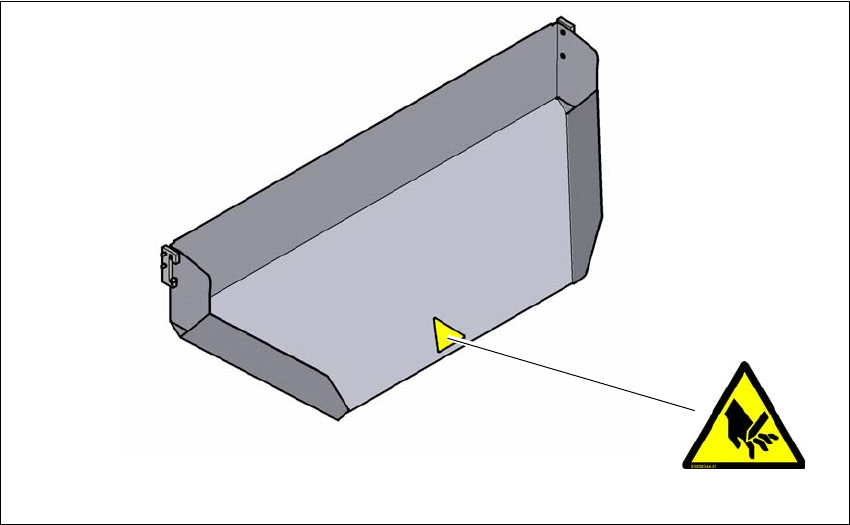

Fig. 2.2 - 6 Warning label W205 on the used tape chute
W205, item no. 03009344-01
W205
