3 Technical data and assemblies User Manual SIPLACE SX4/DX4 3.7 PCB conveyor system From software version SC.706.xx Version 06/2012 EN 138 3.7.4 SIPLACE Quad la ne conveyor (SX4 only) Item no. 00519836 -xx SIPLACE Quad l…
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.7 PCB conveyor system
137
3.7.3.4 Synchronous transport mode
In synchronous mode, two PCBs of the same size are transported into the placement position at
the same time. They are processed as a common panel. When using products with greatly differ-
ing placement content, common optimization increases the performance of the whole content on
both boards.
The time needed to transport the board is reduced as two boards are always transported at the
same time. It also ensures better utilization of the nozzle configuration.
PCBs on conveyor tracks 1 and 2 are moved synchronously onto the conveyor sections (i.e. the
conveyors are controlled synchronously, but independently of one another). The components to
be placed on conveyor tracks 1 and 2 must be organized into a panel via two subpanels.
If only one conveyor lane is occupied at the beginning of placement, this single use of the con-
veyor lane will be identified as "not to be placed".
If the dual conveyor is operated in synchronous mode, the ‘PCB whispering down the line’ option
is deactivated. The "Global bad fiducial" option cannot be used.
3.7.3.5 I-Placement
In addition to synchronous and asynchronous conveyor mode, a new placement concept has
been developed for the SIPLACE SX4: I-Placement. In this mode, the two heads work simultane-
ously and populate a PCB totally independently of one another. This further increases the output.
3 Technical data and assemblies User Manual SIPLACE SX4/DX4
3.7 PCB conveyor system From software version SC.706.xx Version 06/2012 EN
138
3.7.4 SIPLACE Quad lane conveyor (SX4 only)
Item no. 00519836-xx SIPLACE Quad lane conveyor
3

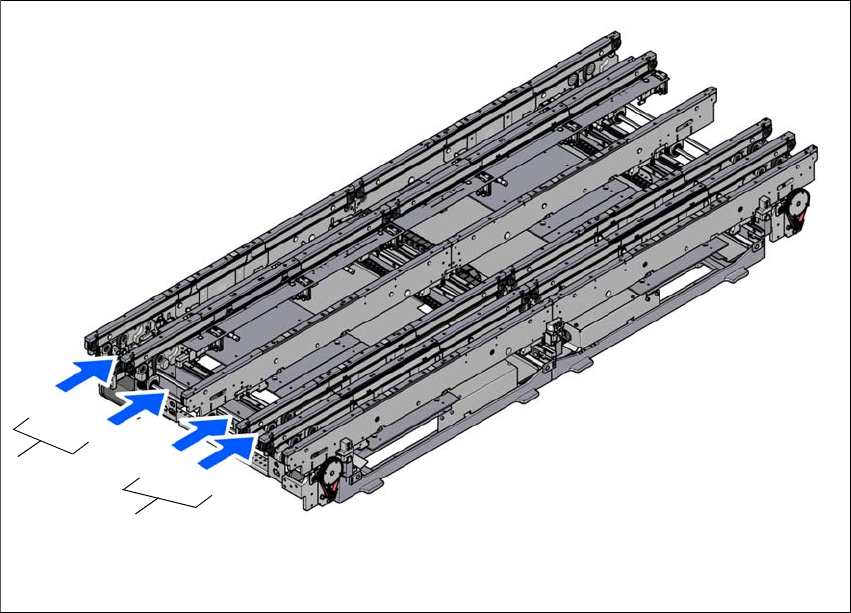

Fig. 3.7 - 5 SIPLACE Quad Lane Conveyor
(1) conveyor lane group 1
(1R) conveyor lane 1, right
(1L) conveyor lane 1, left
(2) conveyor lane group 2
(2R) conveyor lane 2, right
(2L) conveyor lane 2, left
3.7.4.1 Description
The SIPLACE quad lane conveyor can process up to eight boards at the same time. The conveyor
lanes 1R and 1L or 2R and 2L transport the boards in synchronous mode, while the two conveyor
lane groups 1 and 2 can transport the boards in both synchronous or asynchronous mode. The
two outer conveyor sides are fixed in the quad lane conveyor. The conveyor can be configured as
single lane, dual lane or quad lane, in the software, without any modifications to the hardware.
(2L)
(2R)
(1)
(1R)
(1L)
(2)
User Manual SIPLACE SX4/DX4 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.7 PCB conveyor system
139
3.7.5 Controlling and width adjustment
3.7.5.1 Controlling using the Single Functions menu
The online help contains information on controlling the PCB conveyor system and on the Single
Functions menu.
3.7.5.2 Automatic width adjustment
When the command is received, the conveyor belts are set to the desired width. Different widths
are possible for a dual conveyor.
See the Online Help for detailed information about changing the conveyor track width.
