2.2.3 Warning labels in the machine

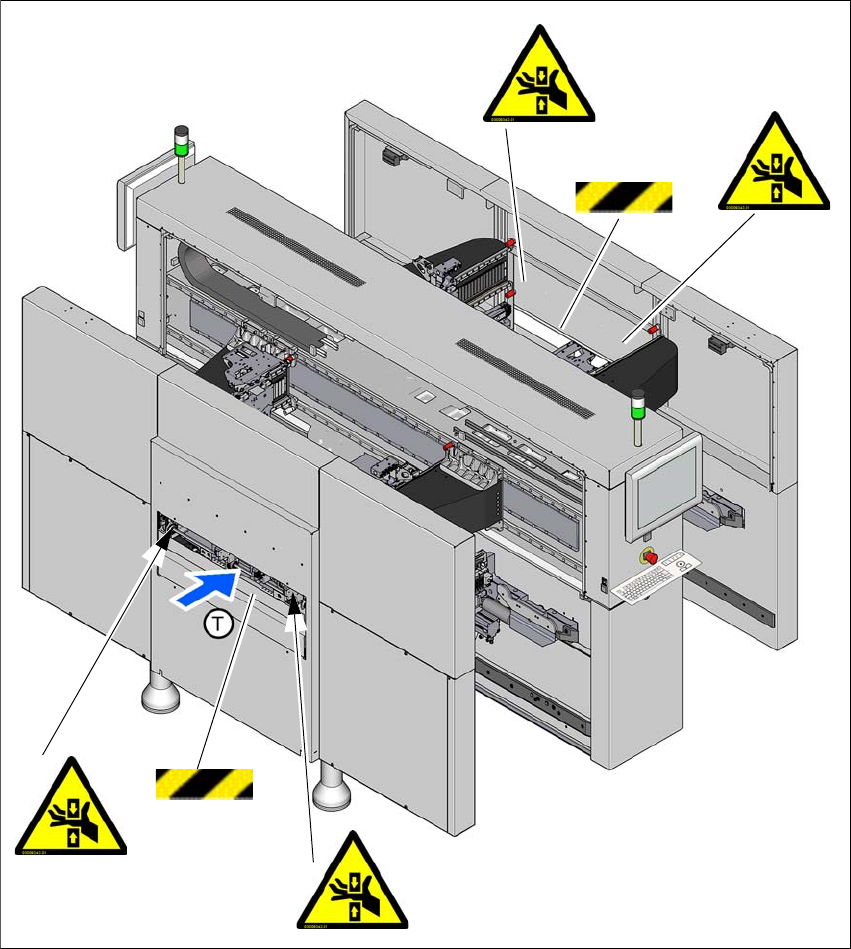

Fig. 2.2 - 3 Warning label W203 in the machine (example of SX4)
W203, item no. 03009342-01
(1) Warning strips
W 203
W 203
W 203
W 203
1
1
User Manual SIPLACE SX4/DX4 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
43
2.2.3.1 Warning label W203
2
W203 in fig. 2.2 - 3, page 42 item no. 03009342-01 (quantity per machine: 4)
2.2.3.2 Safety instructions for work performed with the protective cover open
2
A black-yellow warning strip is attached to the input and output conveyors. Item 1 in the fig. 2.2 -
3, page 42 (Quantity per machine: 2)
This warns the operator not to reach into the inside of the neighboring machine.
DANGER 2
To avoid the risk of injuries, the operator must take care not to reach into the hazard area of the
neighboring machine when the protective cover is open. This area is marked with a black-yellow
warning strip.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the inside of the neighboring ma-
chine.
2
2
2
RISK OF HAND INJURIES (CRUSHING) IN EXTENSIVE AREA!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the inside of the neighboring machine.
