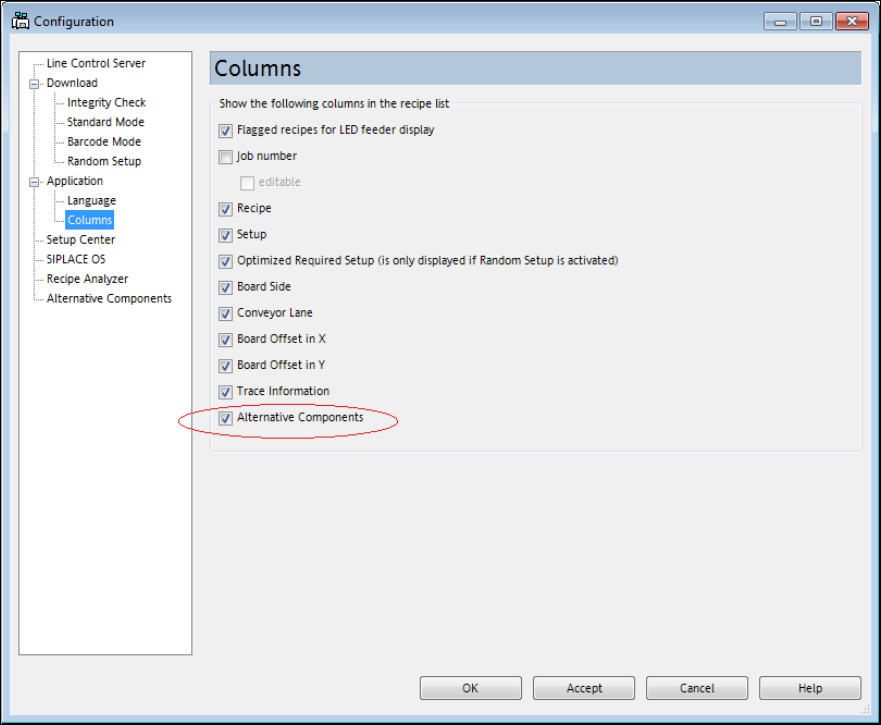

The following dialog is displayed.
Figure 8-32: Configuration menu – Application - Columns
► Tag the Alternative Components check box so that a corresponding column will be displayed
in the recipe list.
► Click on OK to save the setting.
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
121
8.4.13 SiCluster Professional – Enhancements
This section will give an overview of the enhancements in SIPLACE Pro SiCluster Professional.
Detailed information can be found in the SiCluster Professional User Manual, item no.
[00197281-xx].

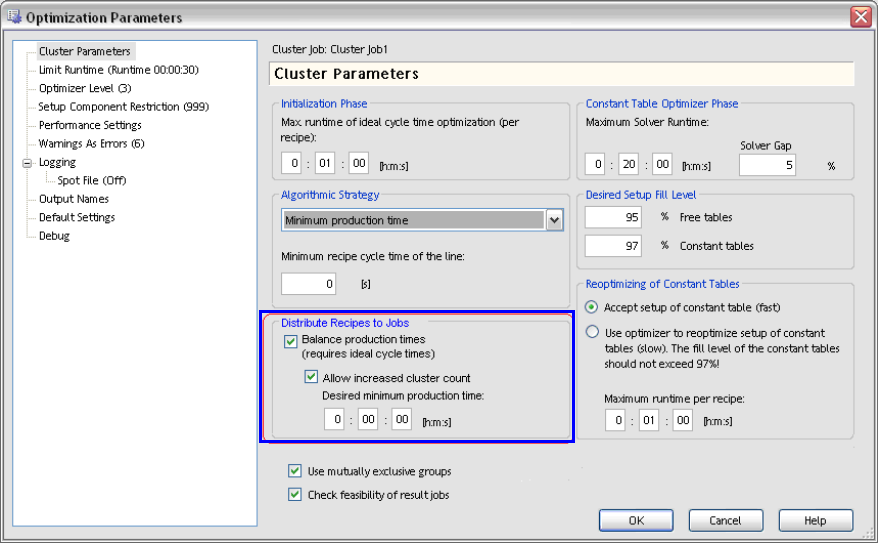

● With the Balance production times option under Cluster Parameters, short production times
will be lengthened for setups within a cluster job. Short times will be adapted to the longer ones
so that there is time enough to prepare the next setup for the line in the pre-setup area. For
this, the ideal production time for each recipe has to be available.
Additionally, further cluster jobs may be allowed and a fixed minimum production time be
defined.
Figure 8-33: Lengthening production time for result jobs

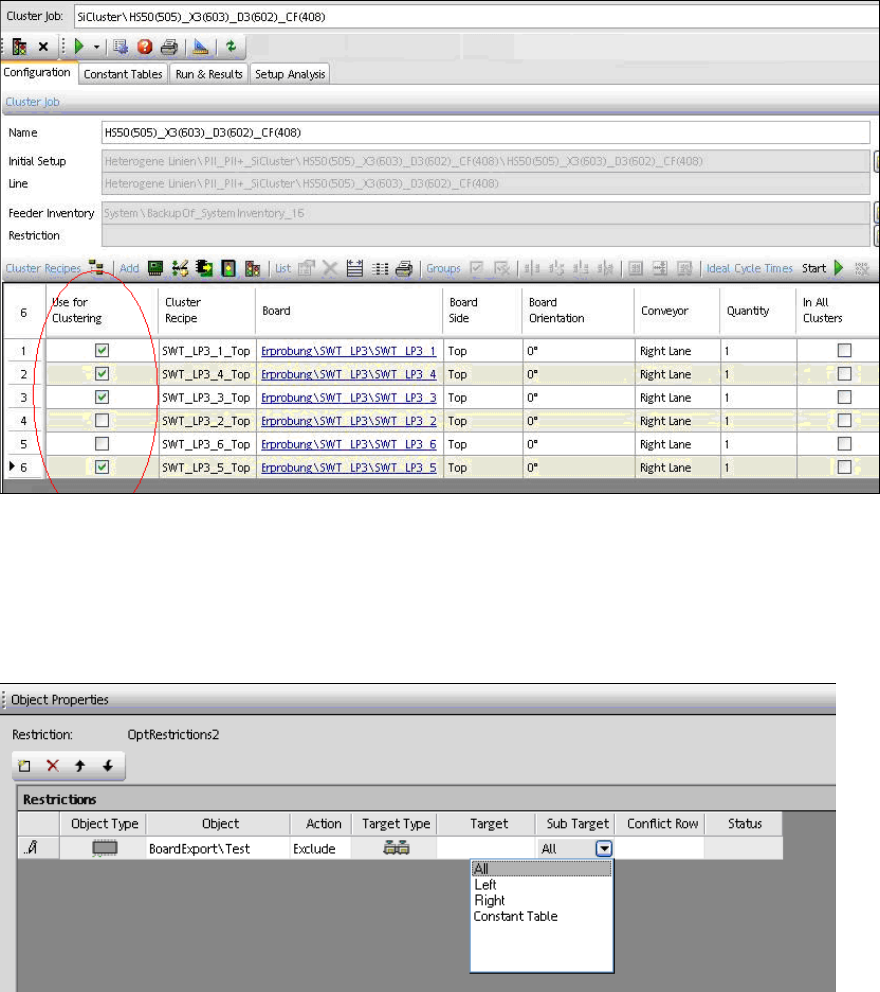

● A subset of recipes can be selected to form a cluster job. In the Use for Clustering column in
the opened cluster job, the recipes to be used for the cluster job can be explicitly selected.
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
122
Figure 8-34: Selecting recipes for cluster job
● Creating restriction objects and assigning them to a cluster job
Certain (i.e. expensive) components should not be set-up on constant tables to avoid that they
get used up. Such components can be excluded from constant tables in a restriction object
(under Sub Target – Constant Table) in the Restriction Editor of SIPLACE Pro Desk.
Components can also be explicitly bound to a constant table.
Figure 8-35: Creating restriction object
Thereafter, the restriction object can be assigned to a cluster job.
● In the Run & Results tab, the new Placement with quantity column is available for the
number of placed components.
● The analysis for component communality has been adjusted and improved.
– For each recipe that is marked in the left window, a separate column is displayed in the
right window.
– New Job Communality tab.
