SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
18
2.2.11.4 Reports for multi-selected Recipes
For all reports the multi-selection of recipes is possible. This means for all selected recipes the
individual reports are created.

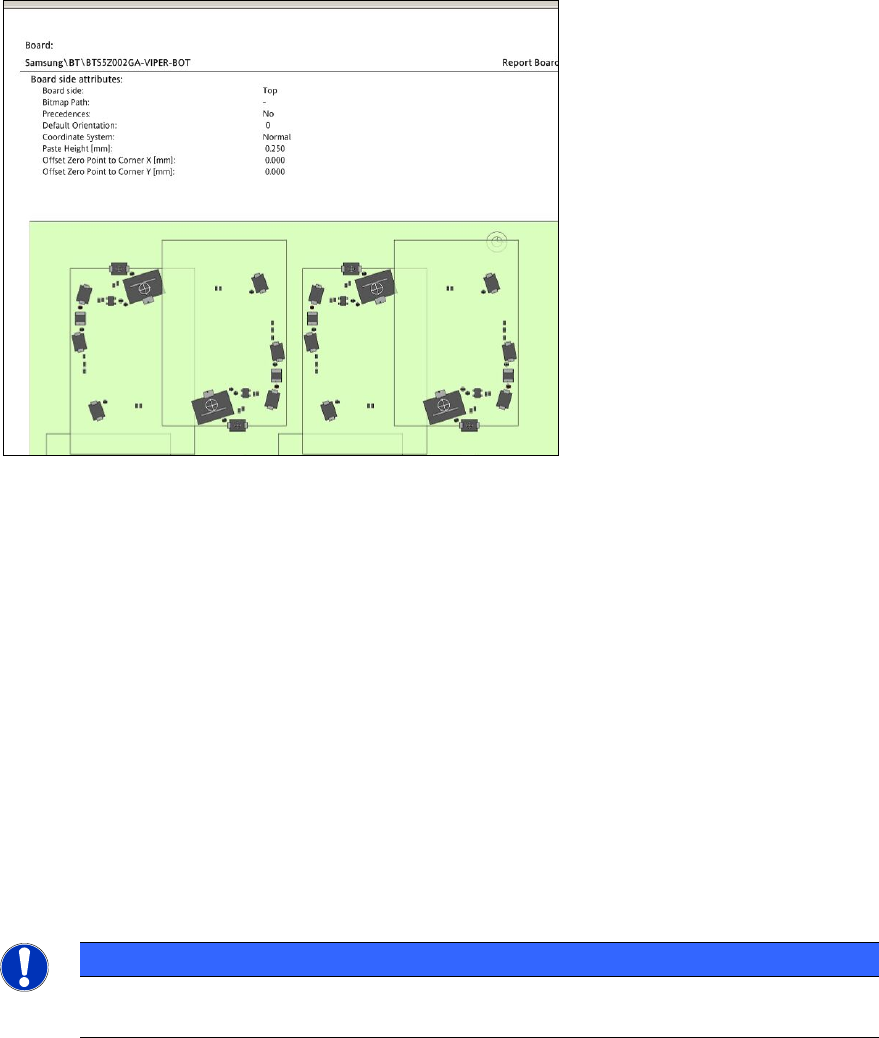

2.2.11.5 Board Report
The board report consists of following data:
● View (top, bottom)
● PCB basic data
● Bitmap
● Precedences (yes, no)
● Comments
NOTICE
The board report can only be created for one board only. A multi-selection of several
boards for one report is not possible.
The board report can be accessed via:
● the context menu
● the button "Report" in the toolbar if a board is open
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
19

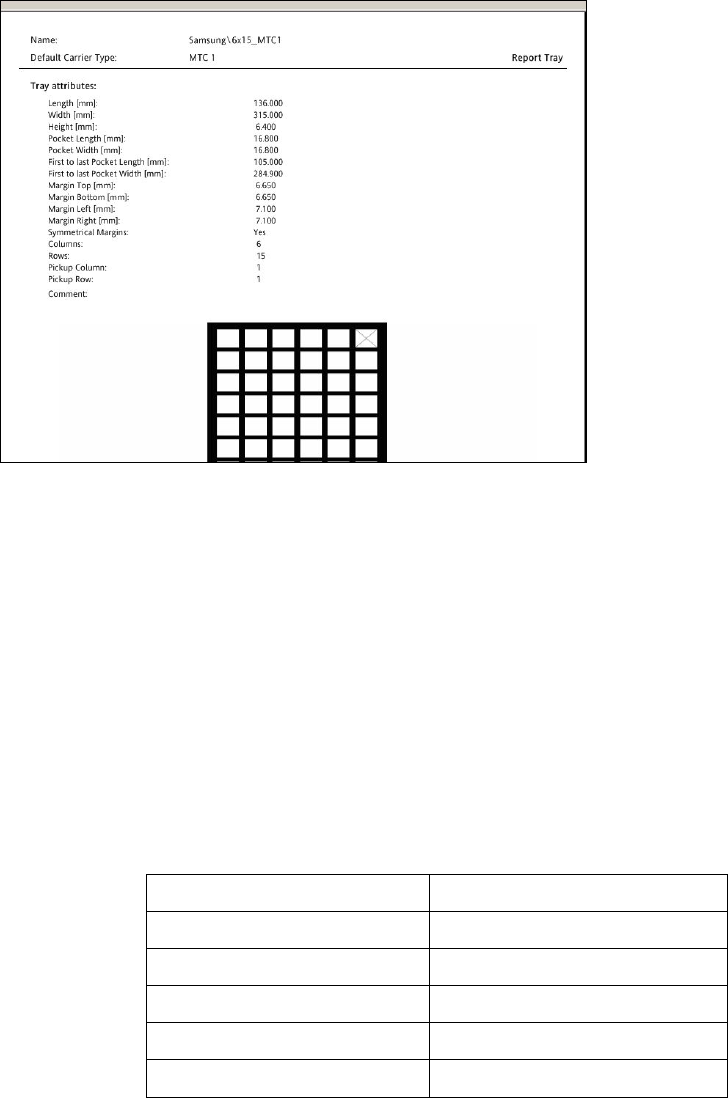

2.2.11.6 Tray Report
The tray report contains all necessary data necessary to describe a tray:
● Tray view
● Default Carrier Type
● Tray basic data (L, W, H)
● First to last pocket
● Margins
● Grid size (columns, rows)
● Pocket size
● Pick-up (columns, rows)
● Comments
NOTICE
The tray report can only be created for one tray only. A multi-
selection of several trays for
one report is not possible.
The tray report can be accessed via:
● the context menu
● the button "Report" in the toolbar if a tray is open
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
20
2.3 Features in combination with station software 603 (V4.1)
2.3.1 Support of SIPLACE D1 and SIPLACE D2
SIPLACE Pro 4.1 supports the new machine types D1, D2 and D3 and D4 of the D series and the
machine types X2, X3, X4 of the X series. All machine types are running with station software 603.
2.3.1.1 Single Gantry Machine SIPLACE D1
The SIPLACE D1 could also run as cost-efficient machine with one head module and/or one table.
Following head combinations are on the individual locations possible:
Gantry 1 / Location 1 Gantry 1 / location 2
P&P C&P6
P&P C&P12
P&P -
- C&P6
- C&P12
2.3.2 Support of WPC 4 for SIPLACE D1
The WPC4 can only be used together with the SIPLACE D1. The WPC 4 is the follower of the
WPC 3 and could only be setup on location 1 of the SIPLACE D1. The WPC consists of a tower
with 28 levels and covers tracks 1-60. The WPC 4 has a higher performance due to new drives, the
reduced acceleration of Y and Z axis and the handling of higher components.
