SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
93
8.2.6 Change Tables
With the help of the new function Change Table, the Setup Editor can now show all available
tables for each location. As an option, you can apply feeders which have already been configured
and delete the previously used table. These functions are useful, for example, when replacing a
fixed DX table with a DX changeover table.

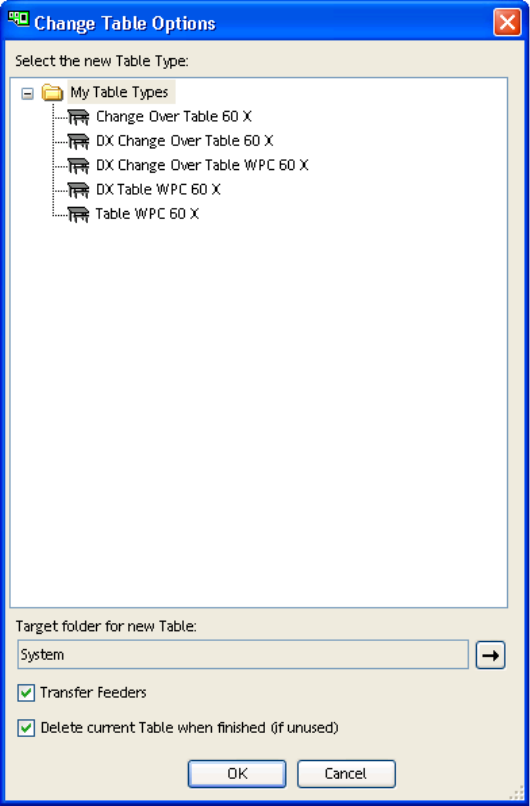

Figure 8-5: Changing table options
8.2.7 Improved Configuration of MTC 2
The procedure for filling tower feeders has been enhanced and there are now two additional new
options available.
● The two new top performance filling strategies Fill up for all boards and Fill up for any board
take into account the number of components needed. In this case, the towers are only filled up
as much as is really needed to produce the number of boards specified in the recipe.
● The best performance filling strategies configure the components in the tower so that these are
emptied preferably from bottom to top.
● To enhance performance, the wide tower of the MTC 2 only has one component configured per
level as a default.
● This same component will no longer be configured in both towers.
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
94

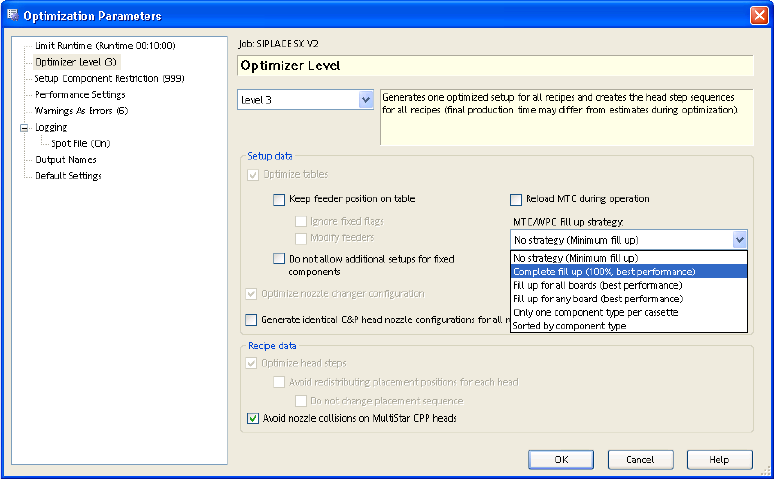

Figure 8-6: Improved configuration of MTC2
8.2.8 Adjustable Speeds for 2x8mm X Feeders
Supported from station software version 706. SIPLACE Pro now allows you to select different
speeds for 2x8 mm X feeders: slow, medium, fast. The corresponding feeder firmware may need to
be upgraded for this.
To obtain this firmware, please contact your local SIPLACE Service team.
8.2.9 New 16 mm XN Feeder
Supported as of station software version 704. Version 704.03c or higher is needed at the station
end in order to operate this feeder.
To obtain this software, please contact your local SIPLACE Service team.
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
95
8.3 New Components (V10.1)
Component Designation Description
Conveyor system SIPLACE X-Series S For X3 S, X4 S, X4i S
Head Very High Force Pick&Place
Head
For SX V2: placement force up to 70 N
Station software
version
706.1 DX-Series: DX1, DX2 and DX4
SX-Series: SX, SX V2 and SX4
X-Series: X2, X3, X4 and X4i
X-Series S:X3 S, X4 S and X4i S
Feeder type TrayStak Feeder AX For X4i S
Table 8-2: New components V10.0
8.3.1 New Positions and Supported PCB Widths for Fixed Rails in SX1/SX2 V2
The following new positions and PCB widths have been implemented for fixed rails in the SX1/SX2
V2 conveyor system:
Fixed Rail Fixed Rail Position PCB Width Distance of Fixed
Rail
Right/Left
Outer
268 250 286
536
Right/Left
259.7
242
277.2
Table 8-3: Fixed rail positions in SX1/SX2 V2
The outer rail position may be set in SIPLACE Pro but is not supported by the 60x station software.
