SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

8.2.2 SIPLACE Glue Feeder

A new SIPLACE Glue Feeder is supported from station software version 706. This allows you to

position dots of adhesive on a component, before it is placed. These dots of adhesive can then be

checked by the SIPLACE Vision system.

The required positions for the adhesive can be defined in the Component Shape Editor and you

can also define whether the Vision system should exclude individual dots of adhesive from its

inspection.

This adhesive function can be enabled and disabled in the Component Editor and the Placement

Position Editor. When the line computer data is imported, the component adhesive setting

(enabled/disabled) is applied.

The SIPLACE Glue Feeder is a special feeder which needs to be manually configured as a fixed

feature on a certain table track and which is not automatically configured by the optimization

process.

The optimization process assigns components which need adhesive to those heads which the

SIPLACE Glue Feeder can reach.

8.2.3 Configuring Spare Tracks with Random Setup during the Production

Process

From station software version 706 there are two additional settings available for working with

Random Setup: Arbitrary Track and Arbitrary Track and Level.

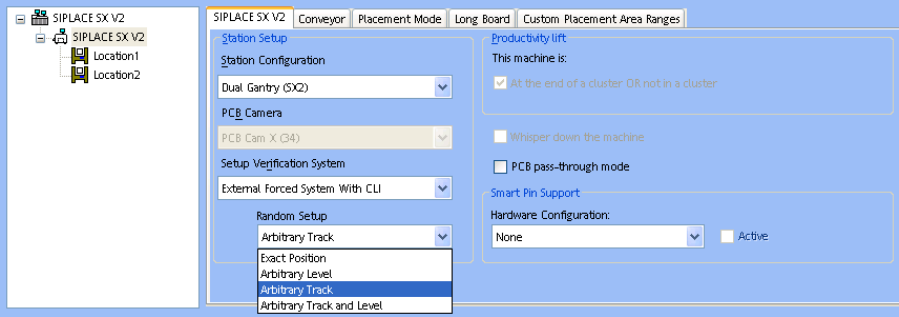

Figure 8-2: Random Setup settings

These settings allow you to use spare tracks within the same location, while the machine is

running. This function is only available for X feeders (Arbitrary Track), for levels in MTC/WPC or for

feeders and levels in MTC/WPC.

● When using spare tracks in the machine, you do not need to perform a new download.

● The operator can configure the spare tracks on any free tracks within that location.

● The machine recognizes these spare tracks automatically and can pick up from them as soon

as the original track has run empty.

See also the operating manual SIPLACE Random Setup.

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

8.2.4 Working Copy Setup Replaced with Optimized Setup for Random Setup

In Random Setup mode, after downloading the first recipe which refers to the next optimized setup,

all recipes which refer to working copies of the previously optimized setup will be linked back to the

previously optimized setup itself. The working copies of the setups generated by Random Setup

will then be deleted.

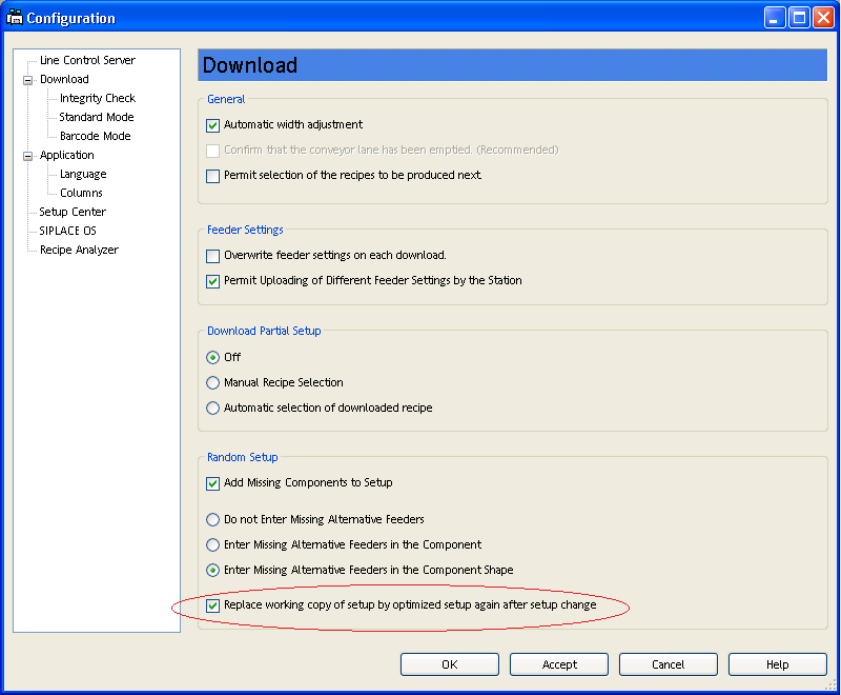

Figure 8-3: Replacing working copy setup

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

8.2.5 Additional Workflow for LED Pairing

You can now define which workflow you want to use:

● One component per LED type with additional brightness class data (LRX format) or

● One component per brightness class (LRX2 format).

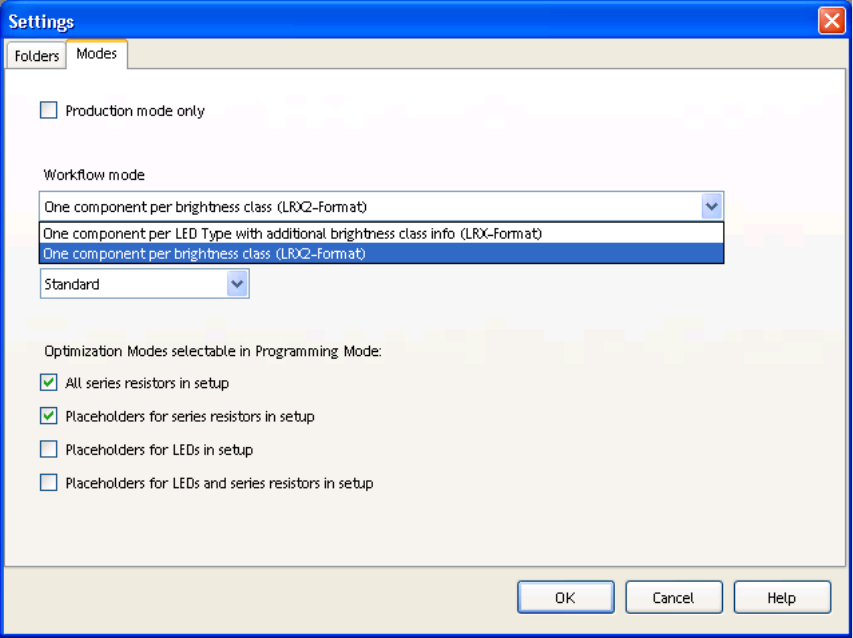

Figure 8-4: LED Pairing workflows
