In this case, the following option has to be set in the Line Editor:
Figure 9-30: Setting in the Line Editor
The placement of the board top side will then be simulated as follows:
– The PCB barcode on the board top side is read by the PCB camera in PA1 of station 1.
– Additionally, the panel barcodes are read by the PCB camera in PA1.
– All barcodes are passed over to station 2 through WDTL.
– At station 3 the PCB barcode is read by the PCB camera in PA1.
If a station software version <= 706 runs on station 3, all panel barcodes are read in PA1, too.
If a station software version as of 707 runs on station 3, the panel barcodes will be passed over
by station 2 through WDTL.
9.3.8 SIPLACE LED Pairing – Enhancements
The following sections give an overview of enhanced features in SIPLACE LED Pairing.
Detailed information about the single features can be found in the SIPLACE LED Pairing User
Guide.
9.3.8.1 Wildcard Character '*' as Reference Designator
The '*' wildcard character can be used as reference designator in the LED matrix file.
9.3.8.2 Creating a Partial Setup
Multiple recipes can be selected in the Production view, whereupon SIPLACE LED Pairing
generates one download recipe for each selected recipe. If the selected recipes have the same
recipe template, SIPLACE LED Pairing will create one common setup for the download recipes.
Optionally, a partial setup may be created out of it via a new button. All components that are not
required in the download recipes will then be removed from the setup together with their feeders.
9.3.8.3 Controlled Transfer of Changes from Copied Placement Lists
SIPLACE LED Pairing creates copies of the placement lists. If errors are detected in the data
during placement, the user usually corrects them only in the copy.
In order to transfer such changes controlled to the original placement lists, it is now possible to start
the Difference Editor in SIPLACE LED Pairing via a new button in the Production view.
The relevant placement lists are displayed for comparison and the correction can be performed in
the Difference Editor.
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
161
9.3.9 Line Control GUI – Enhancements for SIPLACE Order Manager
The Line Control GUI of SIPLACE Pro has been enhanced and displays information about the
SIPLACE Order Manager.
9.3.9.1 Displaying Board Comments in the Production Schedule
Such information as oven profiles and screen printer numbers is very important at the line in order
to decide the best production sequence for the recipes within family setups. Comments may be
entered in the board description for such process attributes and will then be displayed as additional
columns in the production schedule on the Line Control GUI.

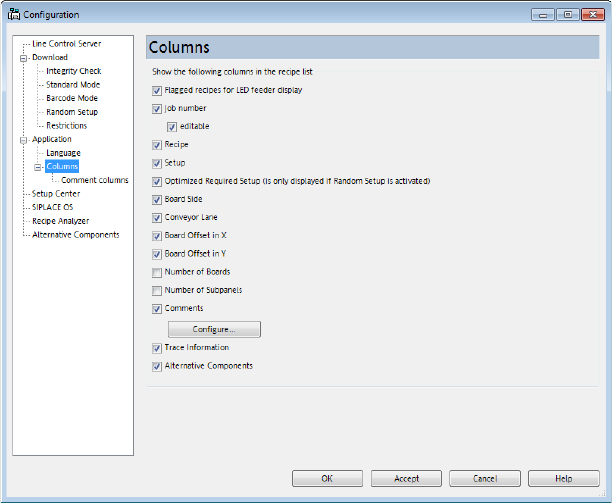

At first, the comment columns have to be defined and enabled in the Line Control GUI under
Configuration – Application – Columns:
Figure 9-31: Defining and enabling comment columns

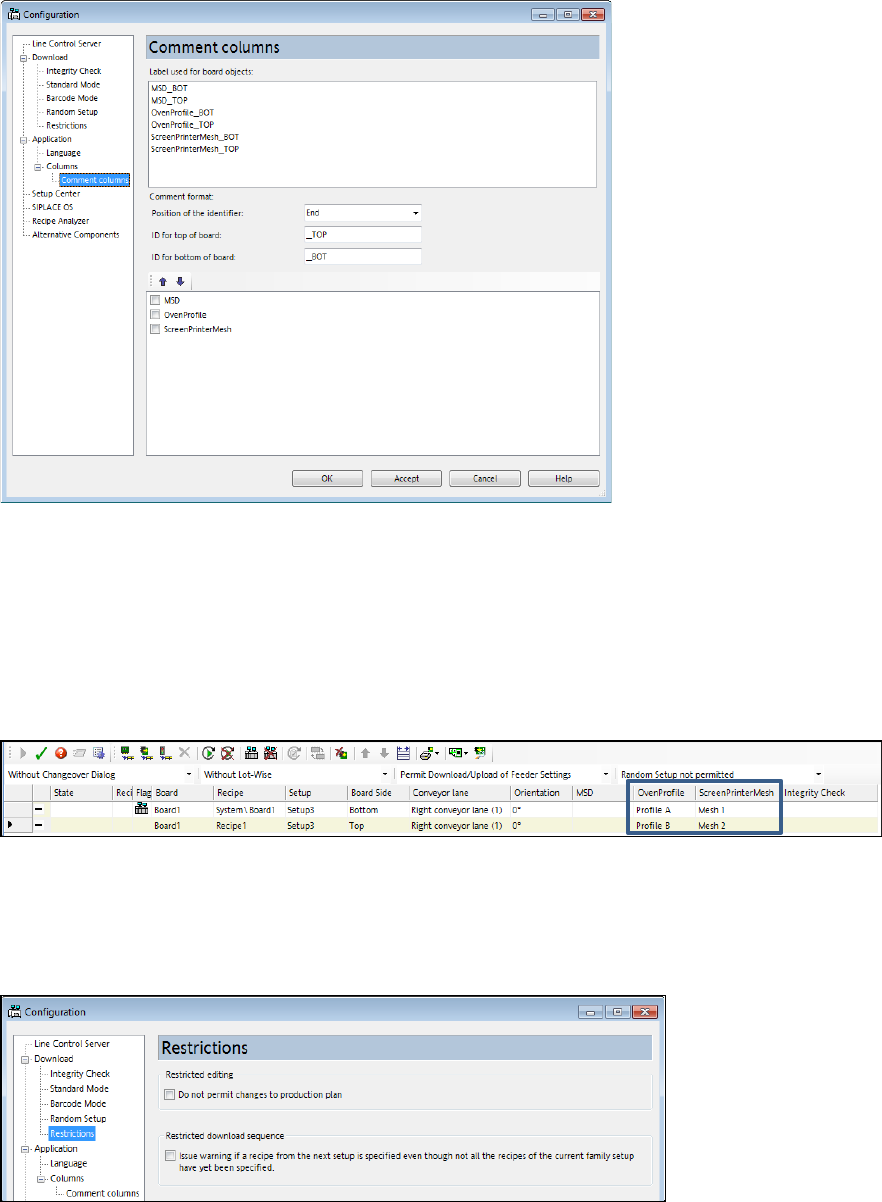

When enabling the Comments option and clicking on the Configure... button, the following dialog
box will open in which the rules for the comment columns can be defined.
SIPLACE Pro Feature Description Ausgabe 05/2014 Edition
162
Figure 9-32: Defining rules for comment columns
If available, labels are displayed in alphabetical order in the upper part of the dialog box.
In the middle part of the dialog box, rules can be specified for these comment formats.
The result columns are displayed in the lower part of the dialog box. The columns that shall be
displayed on the Line Control GUI can be enabled here. Additionally, the column order can be
defined with the arrow buttons.
The comment columns are only displayed on the Line Control GUI, they cannot be changed here.
Figure9-33: Displaying comment columns on the Line Control GUI
9.3.9.2 Restrictions for the Production Schedule
Two restrictions may be set for the production schedule under Configuration – Download –
Restrictions.
Figure 9-34: Setting restrictions
