SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

NOTICE

Station software 505 and 604 support the Shutterless-Feeder. For station software 505

the user must make sure that the station software 505.04 SP1 is installed on all PII

stations.

3.1.7 Coplanarity Tolerances in Component Shape Editor

SIPLACE Pro enables the component shape editor to activate following two features of the 3D

coplanarity. Make sure that you choose before the function "Coplanarity".

– Tolerance of coplanarity measurement: gives the maximum permissible deviation between the

calculated coplanarity level and the lead which is furthest away.

– Placement even if the measurement fails.

For more details please refer to the online help.

3.2 General Improvements in SIPLACE Pro Desk (V5.0 xx)

3.2.1 Redesign Lead Groups in Component Shape Editor

From SIPLACE Pro 5.0 on, in the component shape editor the lead groups are clearly arranged

(new functions: rename and sort).

(rename) renames the lead groups

(sort by name) sorts the lead groups by name in the list view

(sort by lead type) sorts the lead groups by type in the list view

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

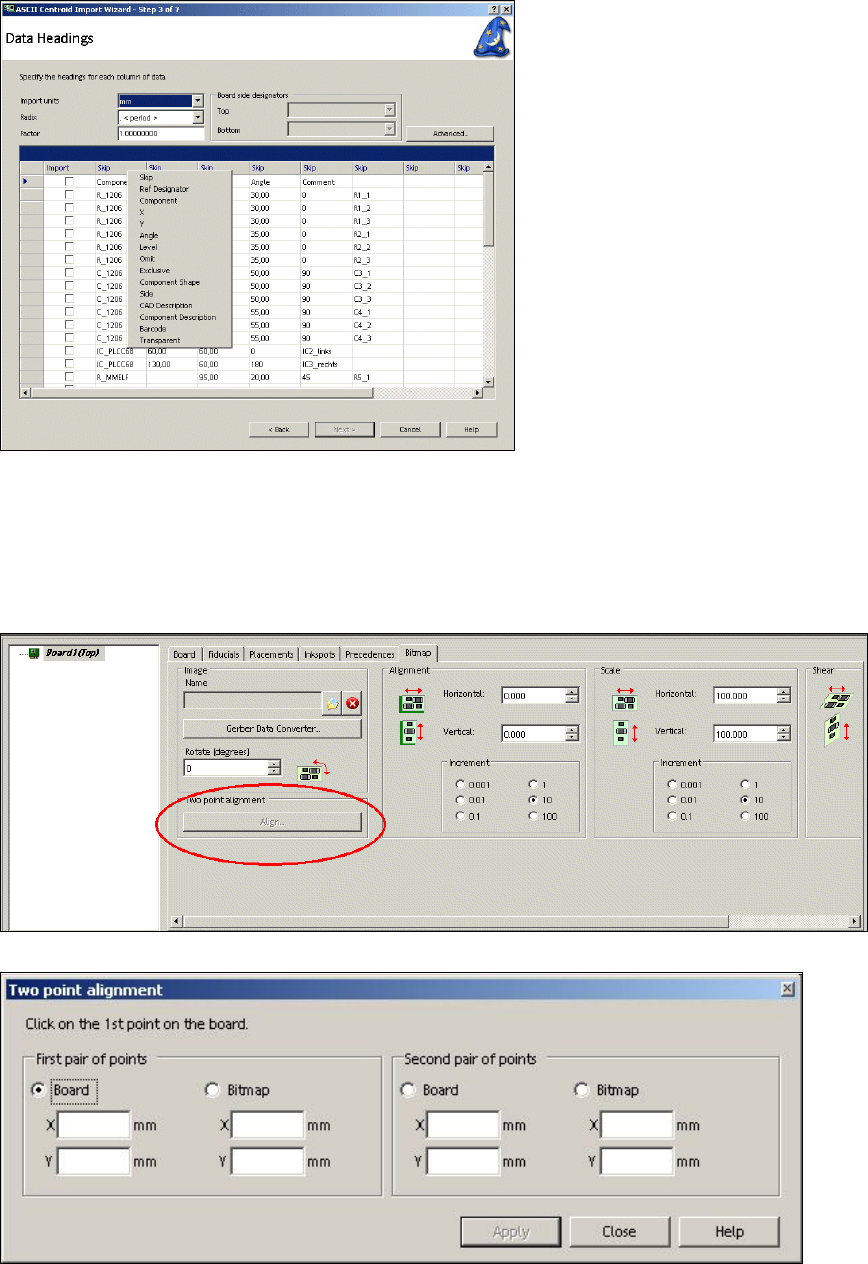

3.2.2 New Functions in ASCII Centroid Wizard

In the ASCII Centroid Wizard (Step 3) of SIPLACE Pro 5.0 there is a new column "Transparent". In

case there is a column available with the identification 0/1 (0 = not transparent, 1 = transparent),

the user can assign the designation "Transparent" to this column. This makes it possible to display

individual components transparently.

3.2.3 Simple Alignment of a Graphic behind a Board in the Board Editor

In the board editor of SIPLACE Pro it is possible to align a graphic (bmp, jpg, gif) in a much simpler

way behind a board. You just have to define two pairs of points (board and graphic). For more

detailed information please refer to the online help.

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

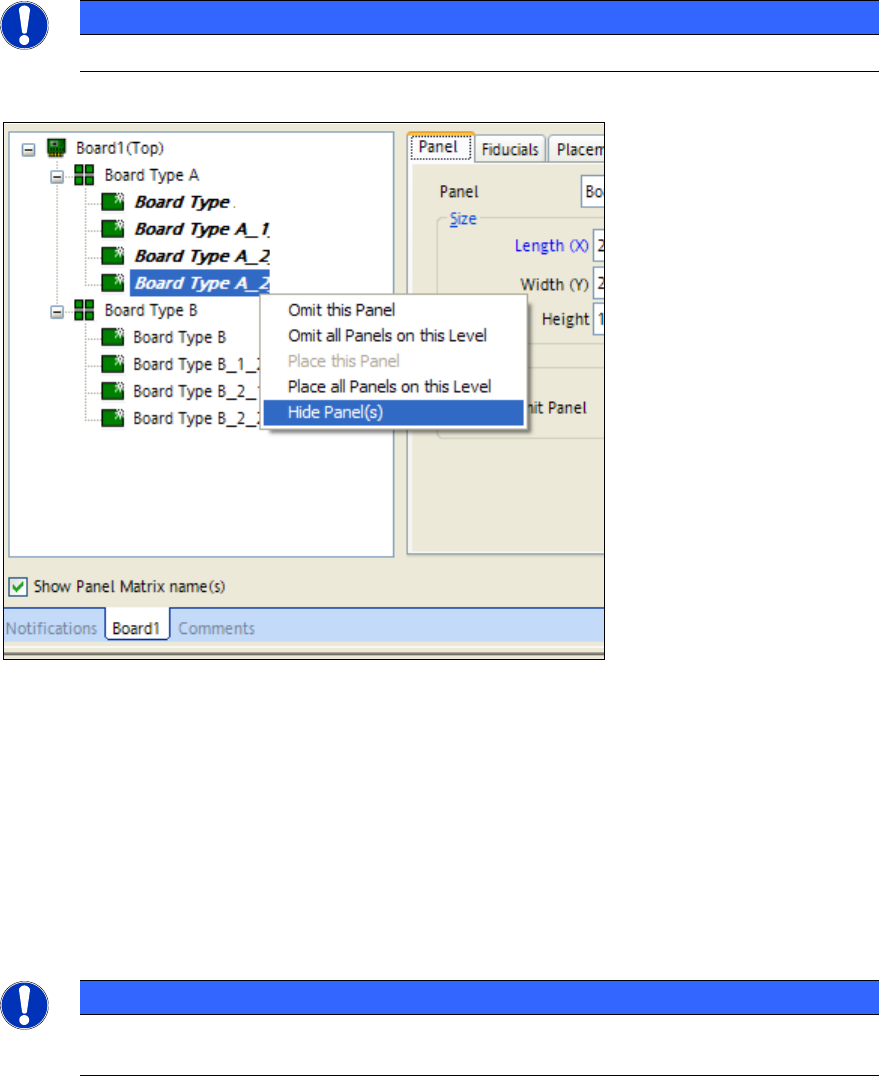

3.2.4 Show and Hide Individual Panels on a Board

It is not only possible to hide and show placement positions of complete boards but also to hide

and show single panels. This setting is only locally visible in the board editor and it is not saved.

The optimizer considers all boards and does not consider if these panels are shown or hidden.

NOTICE

Panels from the 3rd level (main level = level 0) can not be shown or hidden.

3.3 Optimizer Features (V5.0 xx)

3.3.1 Identical Nozzle Configuration for C&P Heads for all Recipes in a Job

In SIPLACE Pro 5.0 there is a new option (Generate identical C&P head nozzle configuration for all

recipes) in the optimizer parameters. This option enables the same nozzle configuration (fixed

setup) on the C&P heads for all recipes of a job. This configuration avoids a nozzle change if

several recipes have to be placed in a job.

NOTICE

This function is also valid for the special segments required for 01005 placement of the D

series. The segments do not have to be changed for every recipe.
