SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

New and modified Functions (V7.0)

5.7 Setting the Specific Feeder Pitch

In the component and the component shape editor it is now possible to set a feeder specific value

for the Feeder Pitch. That means that the Feeder Pitch for component shape or component can

be set differently for each assigned feeder. In addition, the Feeder Pitch can now be changed in

the setup without having to change the values in the component editor or the component shape

editor.

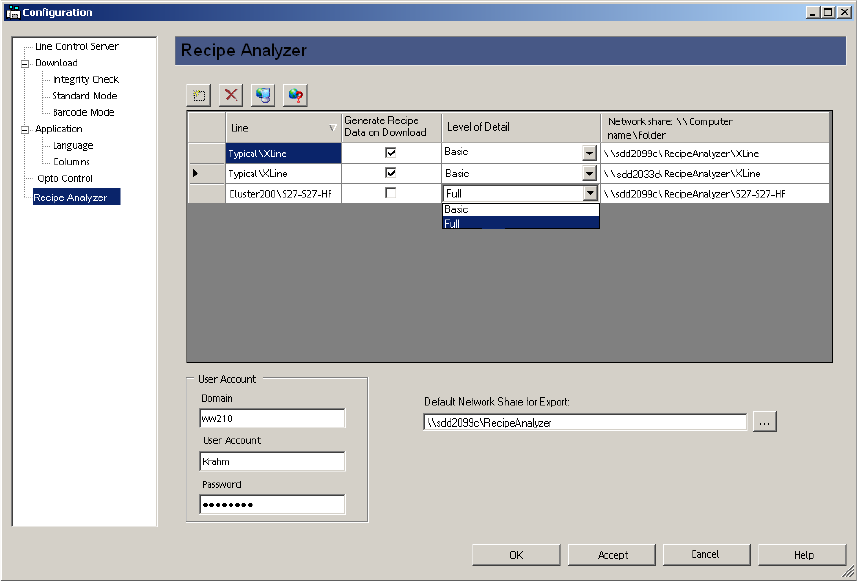

5.8 Generating Recipe Analyzer Data during Download (Option)

A separate license is required in order to use this function. It is possible in SIPLACE Pro 7.0 to

have the recipe analysis generate data automatically while the recipe is being sent to the station

(download). This data is generated in XML format and can be provided in a shared directory.

The network share is configured in LCGUI.

This data can then e. g. be processed and evaluated by an external application.

For a detailed description of the data structure please refer to the "Interface Description - Recipe

Analyzer API" document with the item no. [00196138-xx].

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

5.9 Reworked Recipe Analyzer Tool (Option)

The Recipe Analyzer was reworked. A separate license is required in order to use this function. It

is now possible to effectively display all placement positions with reduced accelerations. The

Recipe Analyzer tool provides the new Accelerations tab for that.

Using this function, customers can now clean up their data from reductions in order to keep only

the necessary reductions within the data.

For detailed information please refer to the online help in SIPLACE Pro Desk.

5.10 Displaying Reduced Accelerations in the Optimization Results

The Optimization Results – Recipe dialogue of the Job Editor shows the number of components

that are placed with reduced speed. Thus it is possible to recognize immediately if the optimization

result has been influenced by reduced accelerations and how many components will be placed with

reduced accelerations.

5.11 Alternative Camera Position for X4i Possible

The camera in SIPLACE X4i machines can be installed in a different position at the factory. This

option allows for the conveyor width 268 in the placement mode "Alternating".

In the station editor you define if the SIPLACE X4i is equipped with this option. In the Default-

Station Configuration list select the Revision2 (HCU/GCU) option.

5.12 PCB Bypass at the Station

With this new function it is possible to have PCBs bypass a specific station in the line (e.g. for

maintenance purposes at this station). If this function is activated in the setup editor this station is

only used as a PCB conveyor. In the graphical display of the station (Desk and LCGUI) a yellow

arrow is shown.

5.13 Placement Head Bypass

During optimization or the feasibility test it is not possible to assign placements to a placement

head.

If this function is activated in the setup editor, the location with the corresponding placement head

is marked yellow in the graphical display (Desk and LCGUI).

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

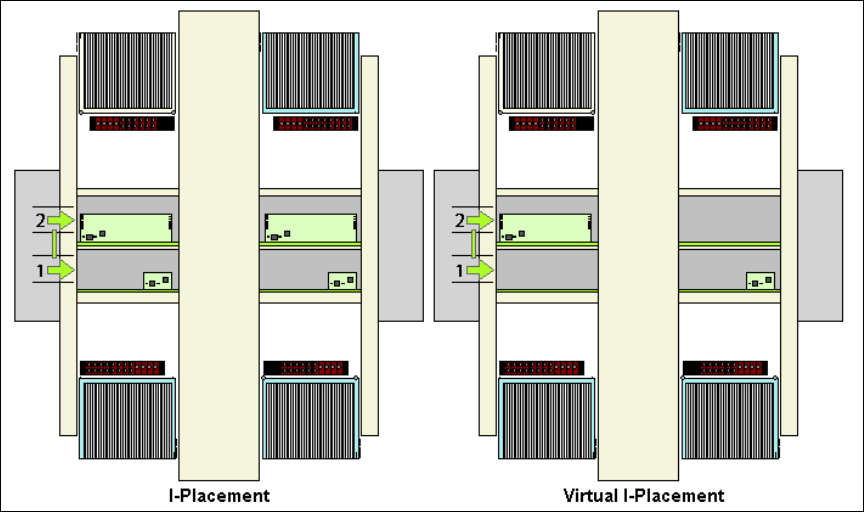

5.14 New Placement Mode "Virtual I-Placement"

SIPLACE Pro 7.0 allows for machines with two placement areas (e.g. SIPLACE X4) in the

Conveyor mode: Dual Asynchronous to produce PCBs in the respective conveyor track

independently of each other. This can be necessary, e.g., if in the front part of an X4i line machines

are operated in the I-Placement mode and if there is an X4 machine at the end of the line, that

does not support I-Placement. In this case right and left conveyor track can be separated by

means of Virtual I-Placement.

function can be activated in the setup editor (V IPlacement Right or V IPlacement Left).

5.15 SIPLACE Vision Compatibility Check for Fiducials

SIPLACE Pro 7.0 enables the SIPLACE Vision compatibility check for all fiducial types.

SIPLACE Pro checks which vision system is at least necessary in order to measure a fiducial

teached at the station. The following functions were added with SIPLACE Vision version 41x.

● Placing if there is no inkdot (inverse inkdot)

● Brightness check within circles

These functions can only be used if all stations in the line use the station software from 703.xx

onward. This function is not downward compatible with older SIPLACE Vision versions.

You can disable these data in SIPLACE Pro via the Delete SIPLACE Vision Data button.
