SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

2.2.2 Addition to Difference Editor Wizard

In the Difference Editor Wizard following object types can be compared: component shape,

placement list, component and fiducial.

Object type SIPLACE Pro 3.2 SIPLACE Pro 4.0

Component shape X X

Placement list - X

Board - -

Component X X

Fiducial X X

2.2.3 Filter Function in Tree Control for all Objects possible

In all tree views (product objects, equipment) in SIPLACE Pro 4.0 you can filter for objects. You

can filter for figures and letters. You could also use wildcards for filtering (\*\ = several figures, \?\ =

one figure). For more details please refer to the online help.

2.2.4 CAD & ASCII Import with/without Overwrite

In SIPLACE Pro 4.0 you can import ASCII and CAD data using the respective editors (ASCII

Centroid Import Wizard, CAD Data Import Wizard).

Completely new is the option to overwrite existing objects of the same name in the target folder.

2.2.5 Save ASCII Import Filter Comments

In SIPLACE Pro 4.0 it is possible to save the filter settings for an ASCII import. This data setting is

used as import filter with comments as option. And this data setting is added to the pop-up filter

menu. For more details, please refer to the online help.

2.2.6 View Panel Hierarchy / Tree View for Panels

In SIPLACE Pro 4.0 you can choose via the tree view individual panels to simplify the navigation on

a board.

2.2.7 Table Redesign

In SIPLACE Pro 4.0 all feeders in a setup can also be displayed in a tree view. You can select

feeders via a graphic, a table or via tree view in the feeders tab. All selected feeders are

highlighted in all displays at the same time. This simplifies the feeder navigation on one or several

changeover tables in a bigger setup.

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

2.2.8 Improvements of the Line Control GUI

In SIPLACE Pro 4.0 the LC GUI is improved as follows:

● The integrity check is supported in offline mode. Offline mode means that no line control server

is connected.

● You can add the same recipe more than once to the same production schedule.

● When using both conveyors in SIPLACE Pro 4.0 the LC GUI displays the active lane

(processing left, processing right).

● You can add new recipes to the production schedule or job at any position in the recipe list.

● When restarting the Line Control Server the user is asked (dialog box) to redownload the last

recipe. After the restart the last recipe is highlighted in red.

● If several LC GUI instances are open at the same time, all changes (addition or deletion of a

line) at one LC GUI instance are immediately accepted by all open LC GUI instances.

● Multi-selection of recipes in LC GUI possible:

● Integrity check is performed for all selected recipes.

● Deletion of all selected recipes is possible.

NOTICE

You can only download one recipe at a time even though multi-selection is possible.

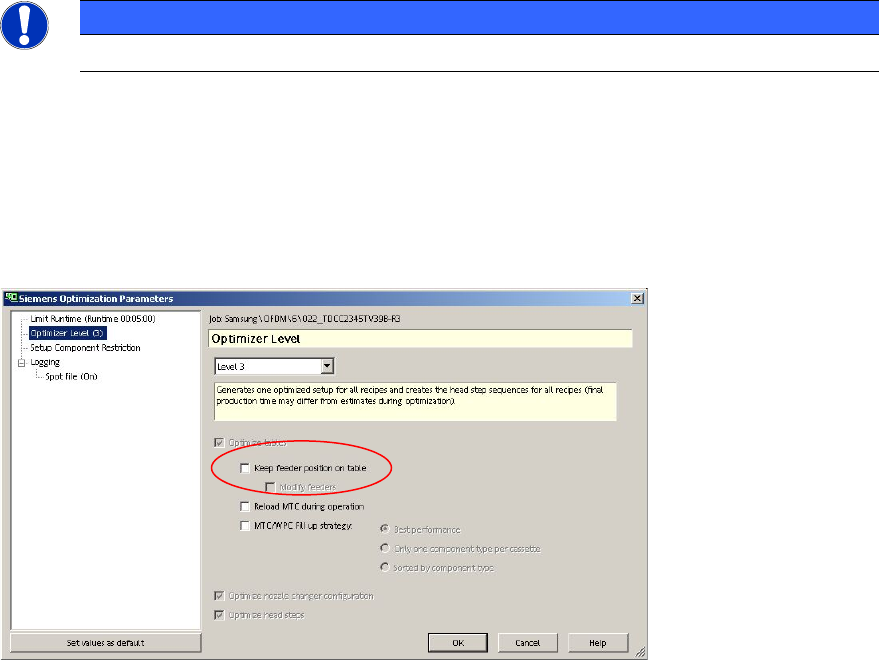

2.2.9 Optimizer Feature: Don't change Component Location in Target Setup

With the option "Keep feeder position on table" you can reduce the changeover time for operators.

Components from the initial setup remain until they are needed again in the final setup. This

reduces changeover times. For further details please refer to the online help.

You can access this option via the button "Configure…".

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

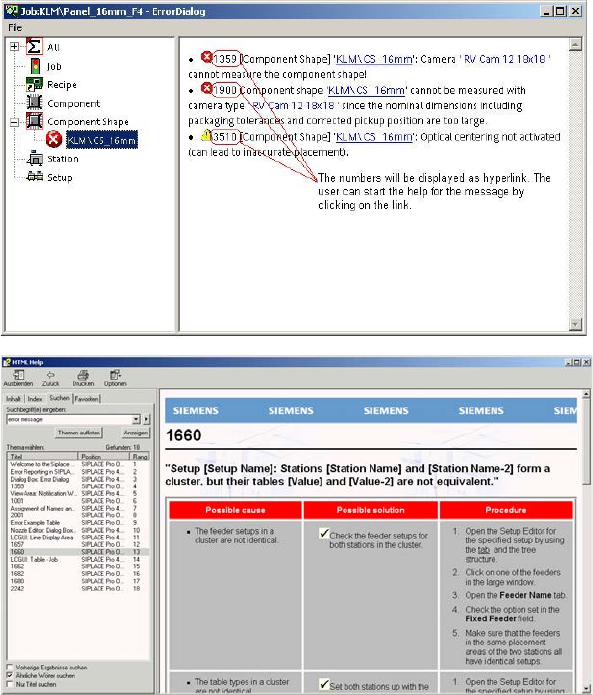

2.2.10 Help on Optimizer Error Messages

In SIPLACE Pro 4.0 an additional online help for the optimizer error messages is integrated.
