SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

Precedence Finder restrictions:

– The Precedence Finder does only work on ONE board.

– Chip-Stacking is not supported.

This means the placement sequence due to overlapping chips can not be included because the Z

axis is not considered.

– The Precedence Finder considers every component as cuboid or cylinder of constant height.

– For customized nozzles the basic nozzle is used for checking the precedence rules.

3.7 Features of Optimization (V5.1)

3.7.1 Freeze Tables

In the setup editor (tabular view) of SIPLACE Pro 5.1 you can "freeze" individual tables via the

context menu. The optimizer is not allowed to setup or delete feeder or components on "frozen"

tables.

3.7.2 Remove Unused Feeders from Fixed Setup

In SIPLACE Pro 5.1 following two settings are added in the optimizer parameter dialog.

– (a) Keep feeder position on tables.

– (b) Ignore fixed setup options.

– (c) Do not allow components to be setup again.

Setting (a) and (b) delete all components and feeders in a fixed setup that are no longer required.

Setting (c) prevents that a component that is already setup is setup again even if the optimizer

recommends this setting.

For more detailed information please refer to the online help.

3.7.3 Option Interference Edge in the Board Editor

In SIPLACE Pro the user has the option to enter in the board editor an interference edge. This

enables SIPLACE Pro to consider the maximal height of all placements or all structures on the

board before the board enters the placement machine. If the interference edge is higher than the

distance to the placement head the optimizer displays an error message and the board cannot be

placed.

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

3.8 Features of LC GUI (V5.1)

3.8.1 Avoid redistributing components in Integrity Check

In the LC GUI the function "Avoid redistributing components…" is expanded.

The options "Avoid redistributing components…" and "Avoid changing placement sequence during

last optimizer run" require the same placement sequence and thus the same placement time.

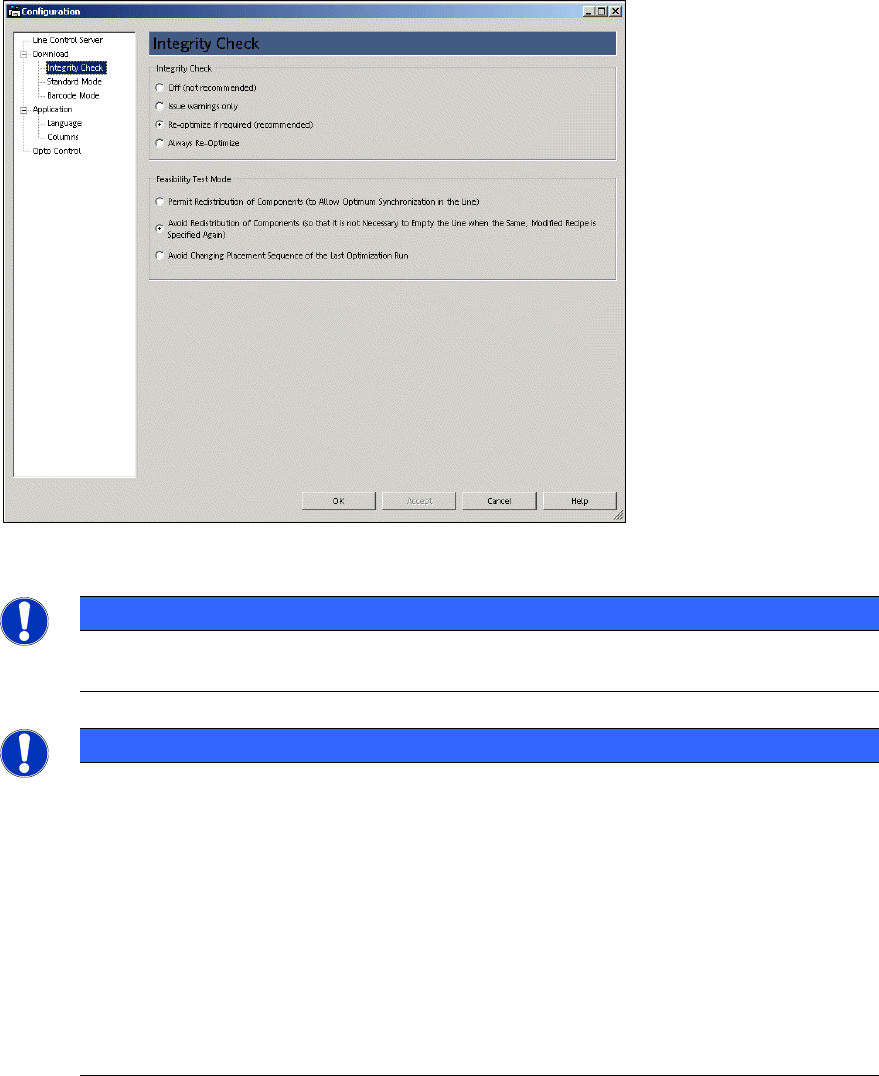

Fig. Integrity Check

NOTICE

If the placement sequence could not be kept (i.e. by setup of an additional component),

the user will receive an error message.

NOTICE

In some cases there are different optimizer results for optimizer level OL2 and OL3.

– Boards with a lot of panels with fiducials

– Long Board Option (LBO) in step mode

Workaround: Before optimization or download select following options from the menu.

– Desk: Job Editor -> Configure… -> Siemens Optimizer Parameter

Optimization: Optimizer Level

– "Avoid redistributing placement position for each head" and

– "Do not change placement sequence"

– LC GUI: Integrity check: "Avoid redistributing components…"

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

3.9 Features of SIPLACE Vision (V5.1)

3.9.1 Optical Inspection of BGA components after Dipping

In SIPLACE Pro 5.1 the component shape editor has the option to check components after dipping

(Component -Editor -> Extended -> Inspect after dipping). This option is only valid for BGA

components and non-standard components. This option checks if all balls are covered with flux

medium or not.

The orientation of the component at the nozzle is checked.

Restrictions of the option "Inspect after dipping":

– This option is only for BGA and non-standard components.

– This option is only valid if "Dipping Vision" is selected.

This option requires station software 605 (with SIPLACE Vision V35) only.

3.10 Features in combination with SW 605 and SW 701 (V5.2)

3.10.1 Virtual PCB Stack for future station software versions

The new feature "Virtual PCB Stack" allows production of two boards with the same width but

different placements in one job. This option is valid for future software versions higher than SW 605

and SW 701.

In the recipe editor you have to define two boards on one conveyor lane. After having activated the

processing mode "Virtual Stack" the two boards lie on top of each other. Each board is provided

with a so-called "Detection Inkspot". By means of this inkspot the boards differ from each other and

by means of this marking the station loads the right placement program.

3.10.2 Higher nozzle capacity on SIPLACE D4

On SIPLACE D4 there is now a second nozzle changer row. This means you could use two nozzle

changers per location instead of one. This is valid for C&P heads with station software 605.

3.11 Features in SIPLACE Pro Desk (V5.2)

3.11.1 Simplified search function for opened objects in the editor

Each editor is provided with an object search function in order to simplify the search for objects you

are working on.

The opened object is localized and shown in the tree view. With the help of this function you quickly

find the opened in the tree view.
