SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

136

9.2.4 SIPLACE X4i S micron Placement Machine

SIPLACE Pro supports the new SIPLACE X4i S micron placement machine that is based on the

SIPLACE X4i S machine type. This new machine type achieves high accuracy through high-

resolution measurements at the main axes and by being equipped with the C&P20 M placement

head. The performance of the machine still complies with that of the SIPLACE X4i S.

The SIPLACE X4i S micron supports essentially the same configuration variants and options as the

SIPLACE X4i S with the exception of the head configuration:

– The SIPLACE X4i S micron is exclusively equipped with the high-precision C&P20 M

placement heads (4x) and the SST 41 component camera type.

9.2.5 SIPLACE SX1/SX2 V2 Placement Machine with Twin VHF – Placement of Tall

Components

SIPLACE Pro supports a new model of the SIPLACE SX1/SX2 V2 placement machine. This

placement machine differs from the previous model by the fact that one gantry is positioned 12 mm

higher as the other one. At this gantry only the new Twin VHF placement head (Very High Force

Twin Head) can be used. In SIPLACE Pro this placement head is referred to as Twin VHF 5xx.

Components up to a height of 38 mm can be placed with a force of 70 N with the Twin VHF 5xx

placement head. Such components may be transported by the WPC5 and WPC6. The maximum

height of component + magazine is 45 mm.

The Twin VHF 5xx placement head supports the same nozzle types as the Twin Head.

The Non Stop module may be used for the tall components.

Restrictions arise due to interfering edges, limitations of the turning circle and the component

weight.

9.2.6 SIPLACE X4i S Placement Machine with C&P20 P Placement Head

A new C&P20 P placement head has been introduced. In SIPLACE Pro this placement head is

referred to as C&P20 P 4xxx. Increased placement performance and robustness are achieved with

this placement head. The C&P20 P 4xxx placement head is supported on the SIPLACE X4i S

placement machine.

The C&P20 P 4xxx placement head has new DP drives and a new nozzle interface. Therefore, new

nozzles (type 4xxx), new nozzle magazines with 20 garages and a new nozzle changer support are

required.

The following nozzle types are supported:

– Rubber nozzles: Typ 4032-4036; 4133, 4135, 4235

– Ceramic nozzles: Typ 4004; 4103, 4105-4109

9.2.7 Station Software Version 707.x

SIPLACE Pro supports the 707.x station software version on the X-, X S-, SX-, DX- and CA-series

placement machines

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

137

9.2.8 New Feeder Types

SIPLACE Pro supports the new feeder types that are described in the following sections.

9.2.8.1 Multiple JEDEC Tray Feeder

The new Multiple JEDEC Tray Feeder is supported on the SX1/SX2 V2 and the SIPLACE X-

series S placement machines. This feeder resembles the "Traystack Feeder AX" feeder and

supports additionally:

– Different component types within one feeder

– 14 or 18 waffle-pack trays per cassette

– Retrofitting of the entire cassette

On the SIPLACE X-series S placement machines the Multiple JEDEC Tray Feeder is set up on the

manual MTF 40 X component table.

On the SX1/SX2 V2 placement machine the feeder is set up on the special MTF 60 X table in the

WPC feed device.

In SIPLACE Pro there are two feeder types for this feeder:

Feeder type in

SIPLACE Pro

Features Max.

component

height +

magazine

Multiple JEDEC Tray

Feeder 14

14 levels / waffle-

pack trays

12.0 mm

Multiple JEDEC Tray

Feeder 18

18 levels / waffle-

pack trays

7.6 mm

Table 9-2: Feeder types Multiple JEDEC Tray Feeder

The feeder type with 14 levels per cassette is provided to transport tall components. There is no

difference between the feeder types with 14 or 18 levels per cassette in the station software, the

full capacity with 18 levels per cassette is always assumed. At the station Multiple JEDEC Tray

Feeder is displayed as feeder type for both types.

NOTICE

It is not intended to omit any levels for tall components. Instead, the different cassette

types shall be used.

9.2.8.2 JEDEC Tray Stack Feeder

The new Multiple JEDEC Tray Stack Feeder is supported on the SX1/SX2 V2 and the SIPLACE X-

series S placement machines. This feeder resembles the "Traystack Feeder AX" feeder but is

equipped with a longer feed axis.

The JEDEC Tray Stack Feeder can be set up at the same positions as the Multiple JEDEC Tray

Feeder.

SIPLACE Pro Feature Description Ausgabe 05/2014 Edition

138

9.2.9 Changing Data without Running Empty

Previously, when data was changed in the setup, the machine always had to be run empty even if

the setup was only slightly changed. I.e., in case that all placement positions could be placed by

the same heads in spite of the changes in setup, components or component shapes.

For such small product changes, the machine does not have to run empty when the setup is

downloaded to the station.

First, the feature has to be enabled on the SIPLACE Pro Line Control GUI.

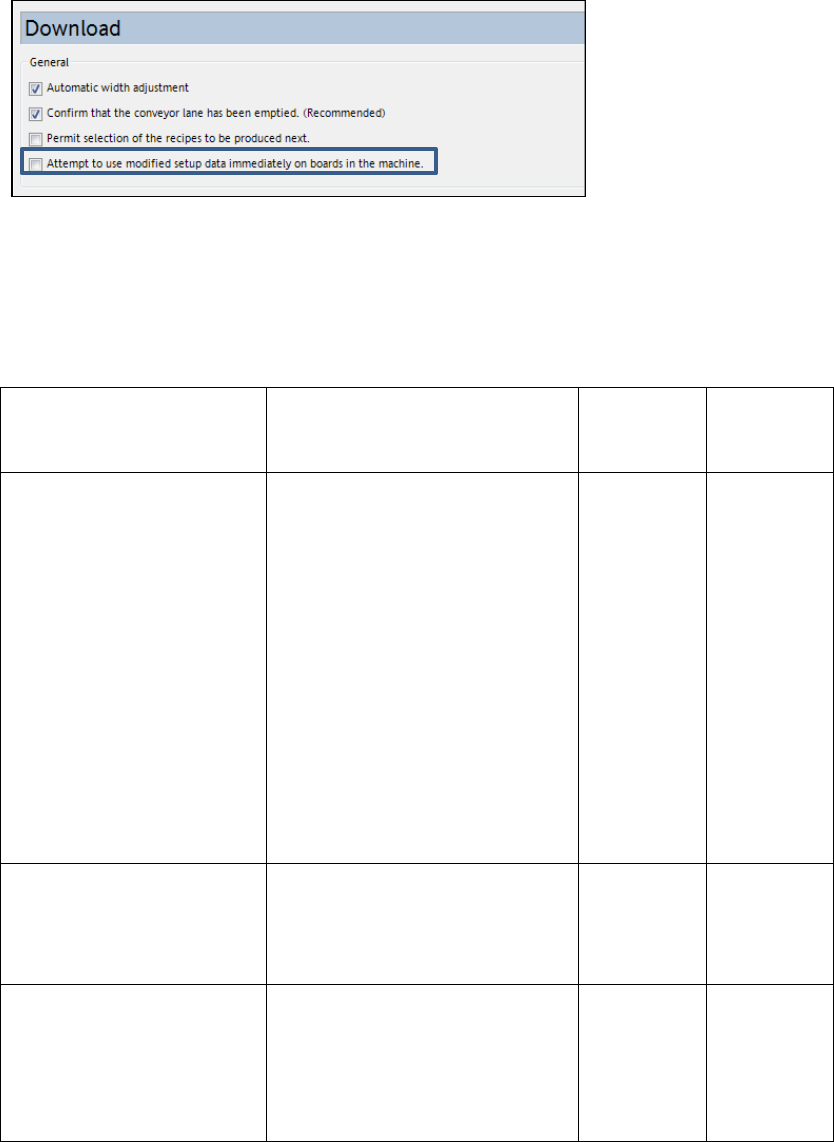

Figure 9-4: Changes valid for current board

Depending on the changes in the setup the changes will be effective immediately (= without

running empty) or for the next board (= running empty).

The following table shows an overview over the changes and the respective behavior at the station

(alphabetically sorted by the SIPLACE Pro Editors, in which the change will be set).

SIPLACE Pro Editor Changes in the setup Imme-

diately

effective

Effective

for the

next board

Component Editor:

Component tab Omit component

Check coplanarity

Non polarized

Number of repicks

Reject feeder

Setup Verification

Splice detection

Trace

Dipping is required

Assignment of the component

shape (the valid combinations

are defined in the board data)

Component Table Editor:

Feeder tab Change feeder type (other reel

size, tape feeder → label feeder,

label feeder → waffle-pack tray)

Waffle Pack Tray Editor:

Properties dialog box Change waffle pack tray

description

Feeders dialog box Change assignment of waffle

pack tray carrier
