Copyright © ViTrox All Rights Reserved.

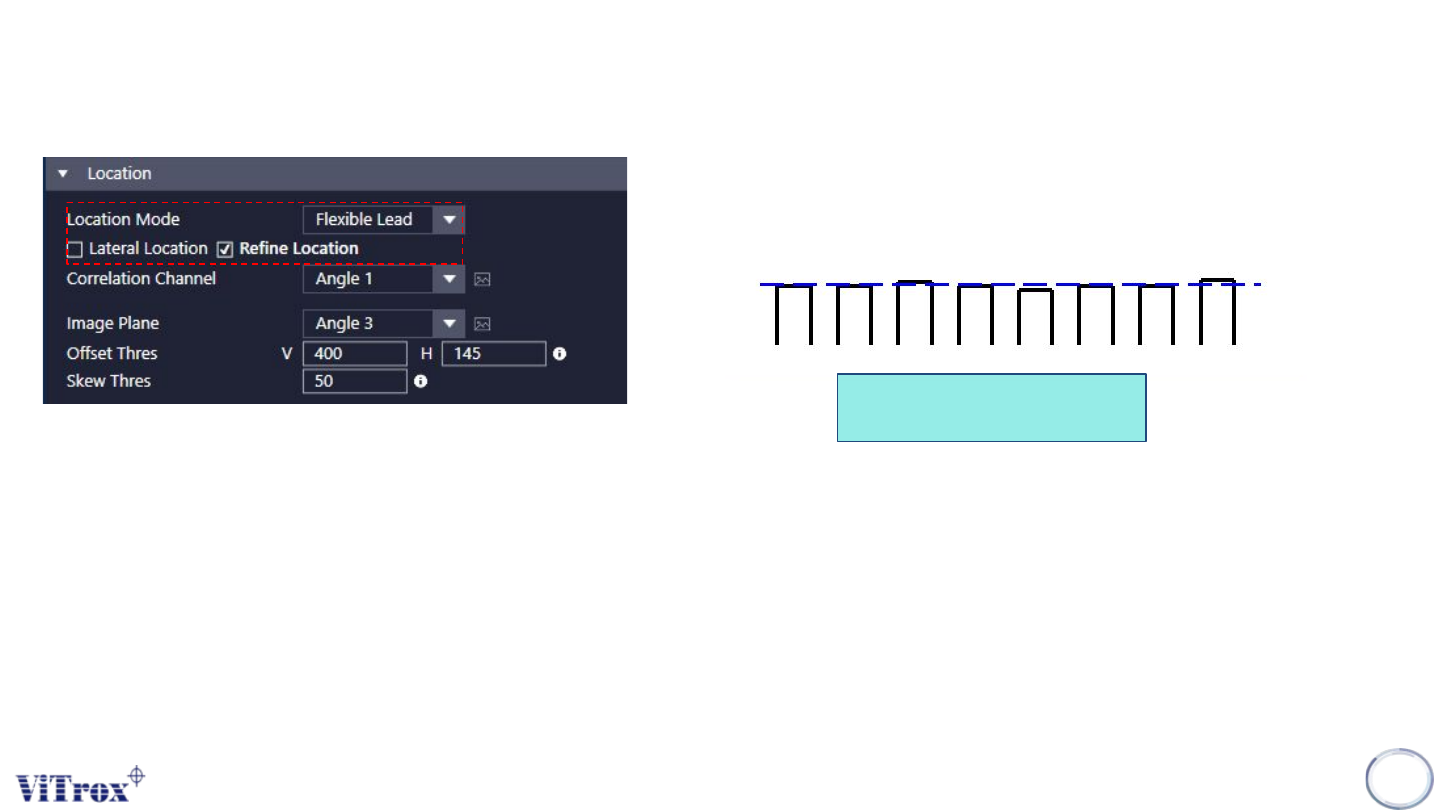

S-type Algorithm - Location Mode (Flexible Lead)
103
Leads having different length.
1. Setting same with correlation mode. Select this mode when
condition of leads as below:
2. Lateral Location
● For Post Reflow, Tick this.
● For Pre Reflow, untick this.
● This can assist during joint inspection in location of the joints which having
nice toe fillets.
● There are occurrences when it does not correctly locate. (Bright Pad &
Wide pads)
3. Refine Location
● Tick this to help to locate the fillet.
● Recommend to on this.
Copyright © ViTrox All Rights Reserved.

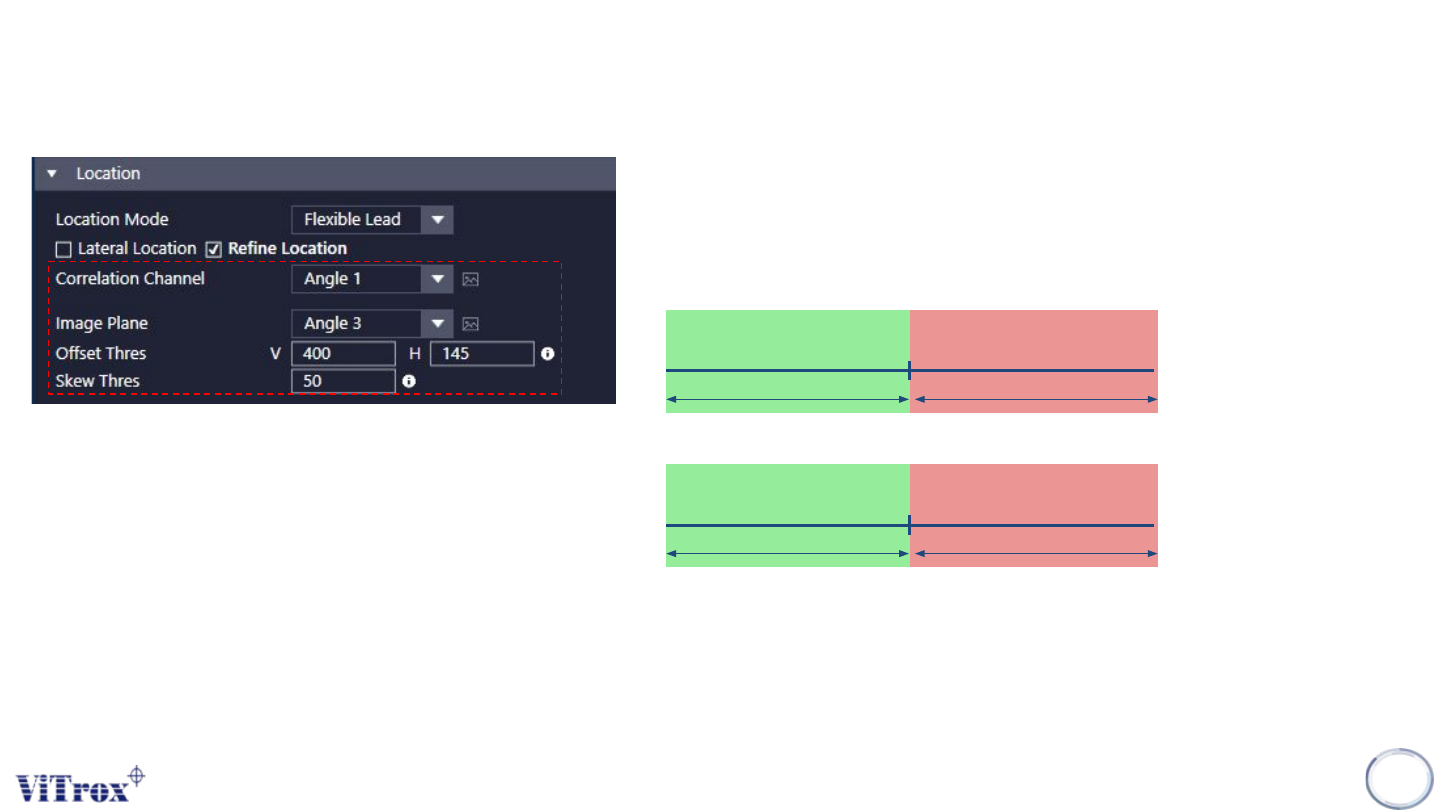

S-type Algorithm - Location Mode (Flexible Lead)
104
7. Correlation Channel
● Refers to the image used for location
8. Image Plane
● Refers to the image used for presence/absence
9. Offset Thres
10. Skew Thres
Offset Thres
Pass Fail
Skew Thres
Pass Fail
Copyright © ViTrox All Rights Reserved.
S-type Algorithm - Location Mode (Parallax Flexible Lead)
105
Toes and shoulders do not align
1. Setting same with correlation mode. Select this mode when
condition of leads as below
