Assign a copied algorithm from

existing algorithm.

324

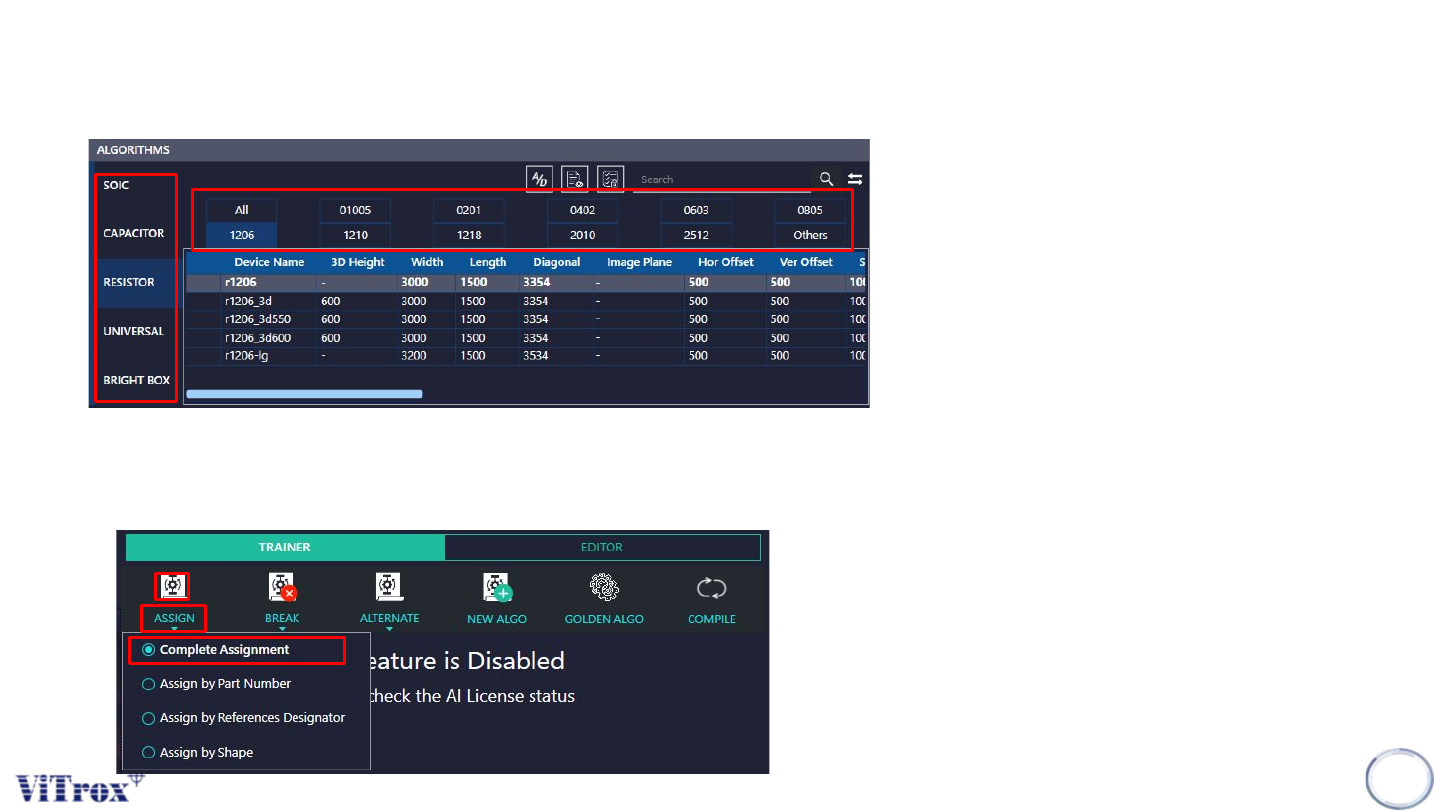

1. From the algorithms list, User may select the algorithm based on components category (C,R,B,S,U)

and component sizes.

2. Select the algorithm, place the mouse cursor at the “Assign”, Select Assign by Part number, Ref Des

or shape based on user. After that press on the icon.

325

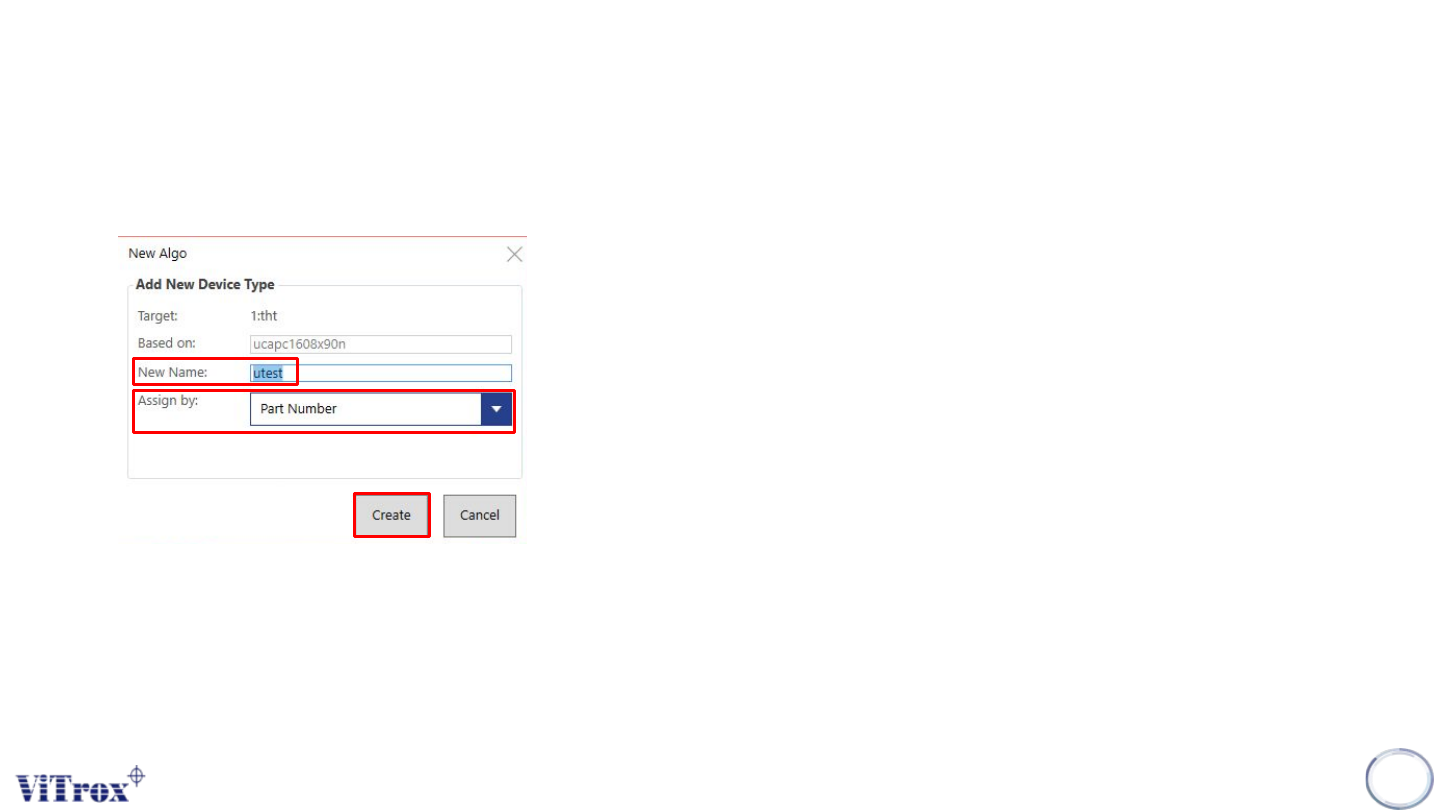

2. Rename the algorithm and select “Assign by” Part number, Ref Des or shape based on user. After that

press on “Create”.

*Note that the algorithm name (Device name) have to start with C, R, B, S or U based on component category
