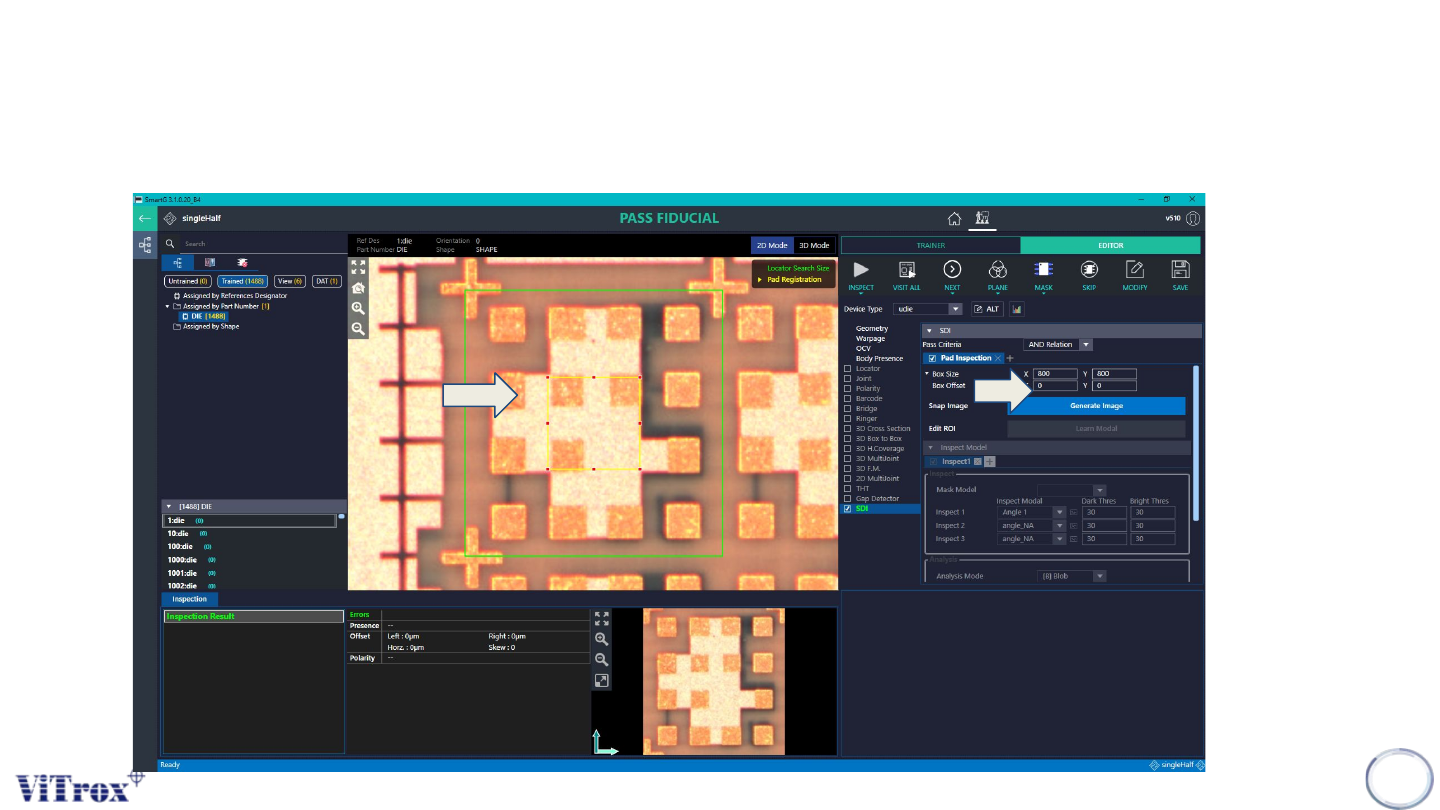

Step 1: Set Inspect region

Step 2: Click “Generate Image”

Set region of inspection in AOI

252

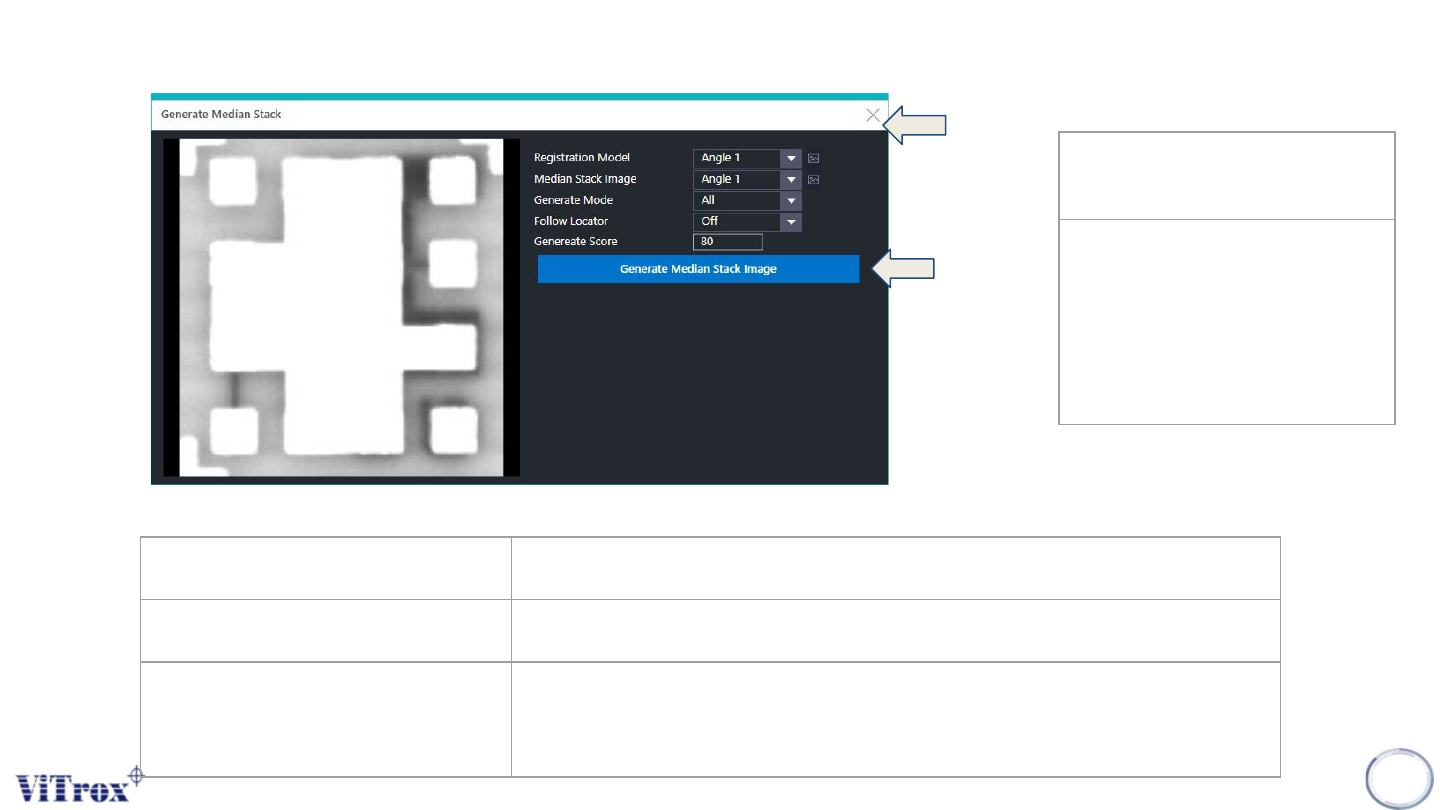

Generate Median Stack

Registration Model

Select image plane to be use as locator

Median Stack Model

Select image plane to generate image for masking

Generate Mode

All - Use all ref des to generate masking image and learning data

Single - Use single ref des(Current) to generate masking image and

learning data

Purpose

- Create learning

data

- Create masking


Run

Exit

253

Generate Median Stack

Follow Locator

On: Use External Locator (Support CPM and Edge Locator only),

support rotation

Off: Use SDI Internal Locator, not support rotation

Generate Score

Set generate score to append ref des into median stack

In Follow Locator, both method will return a registration (similarity)

score. This can control the reliability of median stack

eg, if score too low it wont be added to the stack (learning)

Remarks:

a. If users select Follow Locator On, the

users must set up at least 1 CPM or Edge

Locator. If multiple locator is set, it will use

the final one
