Copyright © ViT rox All Rights Reserved . U-type Algorithm - 3D Multijoint (Solder Profile Inspection) 220 Solder Profile a. Joint Size & Joint Offset ● T o adjust the sizes and the offset for joint inspection boxes …
Copyright © ViTrox All Rights Reserved.
219
Terminal Reference
● Using 2D (Grayscale) and 3D(Height)
● OR Relation between 2D and 3D as pass criteria for single pixel
● Pass Criteria for single pixel:
a. Measured Grayscale < Joint Grey Thres
b. Solder Height (%) > Joint Height Thres (%).
● The overall pass criteria depends on:
Joint Coverage (%) > Joint Coverage Thres (%)
where,
U-type Algorithm - 3D Multijoint (Terminal Reference)
Copyright © ViTrox All Rights Reserved.
U-type Algorithm - 3D Multijoint (Solder Profile Inspection)
220

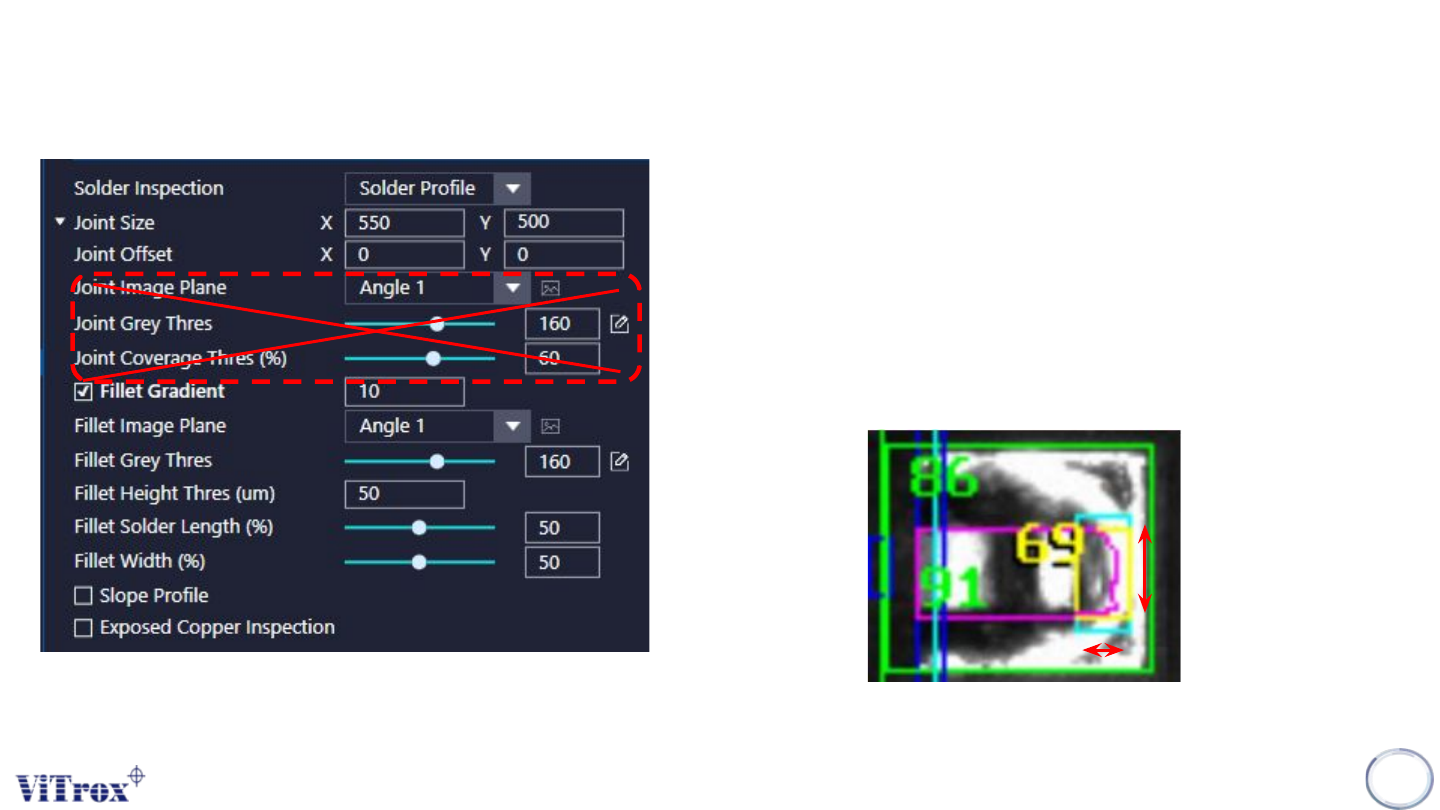

Solder Profile
a. Joint Size & Joint Offset
● To adjust the sizes and the offset for joint inspection boxes
b. Fillet gradient
● Tick to Gradient measurement.
c. Fillet Image Plane
● These are the types of 2D Lighting. Select the one with having highest
contrast among interested inspection region and the background.
● Usually choose angle 2+3
d. Fillet Grey Thres
● Usually set to 160
Grey Thres
Measured Grey Thres
PASS FAIL
e. Fillet Height Thres
Height Thres (um)
Measured Height (um)
Fail Pass
Copyright © ViTrox All Rights Reserved.
U-type Algorithm - 3D Multijoint (Solder Profile Inspection)
221
1. Fillet Solder Length (%) & Fillet Width (%)
● The overall pass criteria depends on:
a. Solder Width (%) > Solder Width Thres (%)
b. Solder Length (%) > Solder Length Thres (%)
c. Both solder Length and Solder Width must pass.
● Pass Criteria for single pixel:
a. Measured Grayscale < Joint Grey Thres
b. Solder Height (%) > Joint Height Thres (%).
c. OR Relation between 2D and 3D as pass criteria for single pixel
Width
Length
