Learn Modal

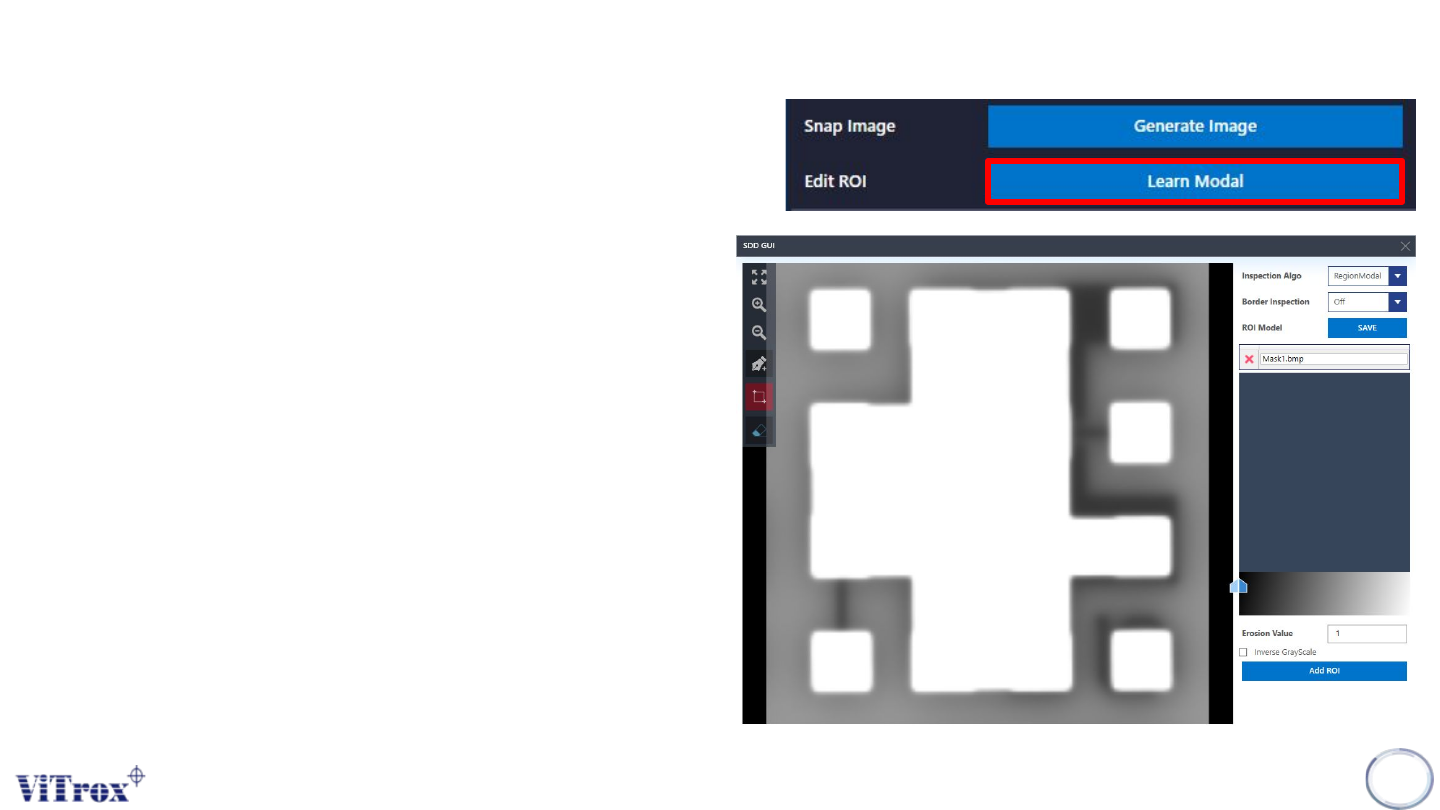

1. Click on “Learn Modal”
2. Prompt SDD GUI
3. Draw and AOI ROI
4. Exit SDD GUI
Remarks:
a. User exit SDD GUI without modifying
ROI will not trigger AOI to re-learn
modal
b. To trigger learn modal in AOI, user
would need to click save, modify ROI
content.
256
Copyright © ViTrox All Rights Reserved.
Zoom 1 to 1 Zoom the image back to normal size
Zoom In Zoom In into image
Zoom Out Zoom out outward image
Pen Draw ROI with Pen
Draw Rectangle Draw ROI with Rectangle
Erase All Erase all ROI
Learn Modal
257
Copyright © ViTrox All Rights Reserved.
Inspection Algo RegionModal (Gold Pad)
RegionLocal (Gold Finger)
Pixel (Diff Joint)
Border Inspection Off
On (Improve border false call)
Delete ROI Delete ROI
Save Save ROI
Erosion Value How many border pixel to discard
Inverse GrayScale Inverse GrayScale
Add ROI Add new ROI to mask list
Learn Modal
258
